Fluke FLUKE-700HTP-2 Hydraulic Test Pump, 10000 Psi

FLUKE-700HTP-2 Includes Only:

• Test Pump
• 1/4 inch NPT to 1/4 inch NPT adapter to connect the reference gauge port on the pump body to the 1/4 NPT female fitting
• 2 x 1/4 inch NPT male to 1/4 inch BSP Female adapters
• 1/4 inch NPT Tee
• Instruction sheet

Features:

• Variable size stroke adjustment, allows the user to vary the volume and pressure per stroke
• Integral pressure adjustment vernier knob for fine pressure adjustment
• Directly connection to pressure modules consolidates two separate pieces into one when performing pressure calibration and testing
• Two 1/4 inch NPT pressure ports, one for reference (pressure module or gauge), one for UUT
• Improved priming
• Improved stroke limiting mechanism

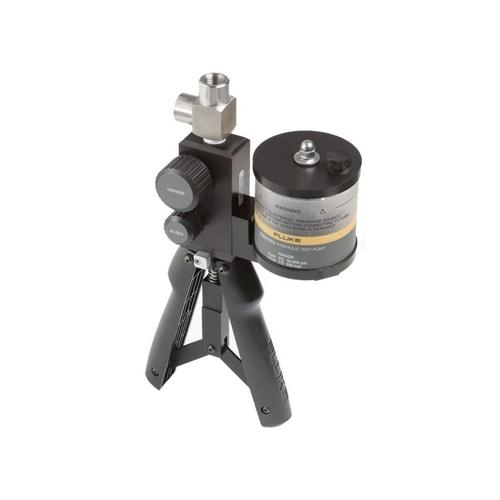

It is a hand operated hydraulic pressure pump designed to generate calibration pressures up to 10,000 psi/690 bar. Designed for use with Fluke-700 series high pressure modules such as the Fluke-700P09, 700P29, 700P30 and 700P31.

Ideal for calibration when connected to a high pressure module via the reference port. It uses distilled water or mineral-based hydraulic oil as a source for calibration of high pressure input devices such as pressure transmitters or pressure gauges. Can also be used with Fluke 717 pressure calibrators.
