Manufacturer warranty Description

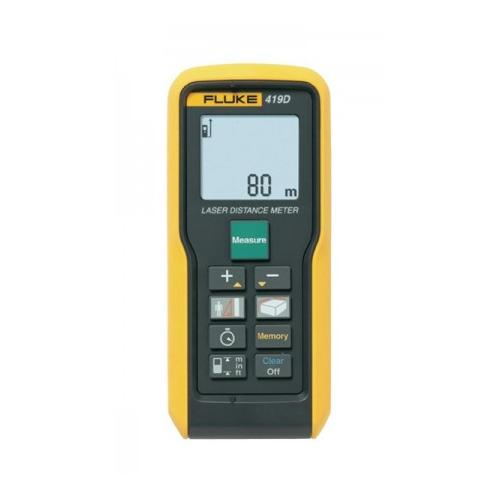

FLUKE-419D Includes Only:
- Laser Distance Meter
- Two AAA batteries
- Users manual on CD
- Quick reference guide
- Vinyl carrying pouch
- Lanyard
Features:
- Versatile laser distance meter that instantly measures up to 80 m (260 ft.)
- Quickly calculates area (square feet/meters) and volume
- Offers enhanced Pythagoras calculation for determining distance indirectly from three other measurements
- Provides easy to-use addition and subtraction function
- Provides audible keypad feedback
- Improves visibility with backlit, three-line display
- Offers minimum/maximum tracking to measure the room's diagonal and horizontal distance from a stable measurement point
- Offers battery life of 5000 measurements with automatic shut-off feature
- Allows mounting on a tripod for stable long distance measurements
- Has stake out function for marking off defined measured lengths
- Offers improved visibility with three-line, backlit display
- Stores the last twenty 20 complete displays for quick recall
- Provides strong environmental protection with IP54 (water spray and dust proof) sealing
- Powered by two AAA batteries
Can use this laser distance meter to measure up to 80 m (260 ft.), accurate to + 1 mm. No scales to interpret or misread. The extra bright laser makes it easy to target even at long distances. It will help save time and reduce errors with enhanced features like storage for 20 complete displays, indirect Pythagoras distance calculations, and the tripod mode for stable, long-distance measurements. And, will be able to see the results more easily on the backlit display.
Technical details
Main features
- Range No
- Protection Class IP54
- Range Target Plate 80 m
- Automatic Power Off After 180 seconds
- Laser type 635 nm, < 1 mW
- Maximum Altitude 3000 m
- Weight (With Batteries) 153 g
- Size (L x W x D) 127 x 56 x 33 mm
- Typical Range 80 m / 260 ft
- Typical Measuring Tolerance ±1.0 mm3
- Maximum Measuring Tolerance ±2.0 mm3
- Maximum Relative Humidity 85% at 20°F to 120°F (-7°C to 50°C)
- Laser class 2
- Battery life (2 x AAA) 1.5 V NEDA 24A/IEC LR03 Up to 5,000 measurements
- Calibration cycle Not applicable
- Range At Leica Target Plate GZM26 80 m / 260 ft
- Range at unfavorable condition 60 m / 195 ft
- Smallest unit displayed 6 / 30 / 60 mm (10 / 50 / 100 m)
- Dia Laser point at distances 6 / 30 / 60 mm (10 / 50 / 100 m)
- Measuring tolerance to laser beam No
- Measuring tolerance to housing No
- Automatic laser off After 90 seconds
- Temperature range Storage operation -25°C to +70°C (-13°F to +158°F) -10°C to +50°C (14°F to +122°F)
