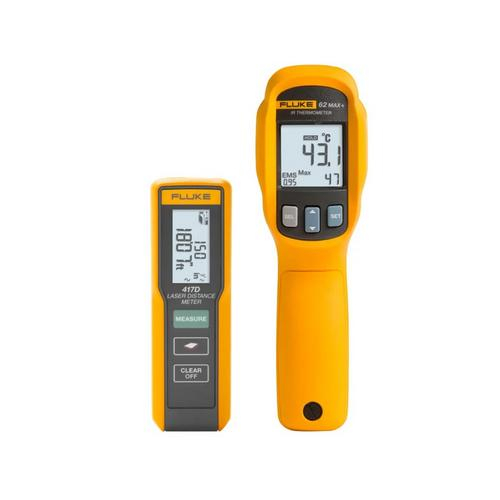

Fluke FLUKE-417D/62MAXKIT Laser Distance Meter with IR Thermometer

Brand: Fluke

Part #:

FLUKE-417D/62MAXKIT

Condition:

Brand New

Check availability

Manufacturer warranty

Description

FLUKE-417D/62MAXKIT Includes Only:

417D Laser Distance Measurer (Meter)
62 MAX+ IR Thermometer

Features:

Continuous measurement capable: adjusting as move closer and farther from target
Quickly calculate area (sq. feet/meters)
1-meter drop tested and IP54 rated: built to withstand rainy or dusty conditions
Great for interior and exterior applications
Dust and water-resistant: IP54 rated
Rugged: 3-meter (9.8-foot) drop tested
Ergonomically designed: Completely redesigned for a more natural hand fit
Large, backlit display: Makes data easier to read, even in dark areas

The rugged IR thermometer teamed with the easy-to-use Laser Distance Meter has everything need to configure HVAC layouts and troubleshoot electrical problems. For electrical devices use the IR thermometer to test overheating issues and for HVAC layout, use the Laser Distance Meter to configure layout distance or area and use continuous measurement for marking references.

For more information, please see Data Sheet

Check availability

Technical details

Main features

Size (175 x 85 x 75) mm (6.88 x 3.34 x 2.95) inches
Power 1 AA alkaline battery
Weight 255 g (8.99 oz)
Protection Class IP54
Display 2 line/1 mm/1/32 in
Temperature Range - 30 °C to 650 °C (-22 °F to 1202 °F)
Operating Temperature 0 °C to 50 °C (32 °F to 122°F)
Storage Temperature -20 °C to 60 °C (-4 °F to 140 °F) (without battery)
Operating Humidity Non- condensing at ≤ 10 °C (50 °F) ≤ 90 % RH at 10 °C (50 °F) to 30 °C (86 °F) ≤ 75 % RH at 30 °C (86 °F) to 40 °C (104 °F) ≤ 45 % RH at 40 °C (104 °F) to 50 °C (122 °F)
Operating Altitude 2000 meters above mean sea level
Safety CAN/CSA-C22.2 No. 61010-1-04, UL Std. No. 61010-1 (2nd Edition), ISA-82.02.01, IEC Standard No. 61010-1:2001, EN60825-1:2007 (Class II)
Battery Life 8 hours with laser and backlight on
Optical Resolution 12:1 (calculated at 90 % energy)
Drop Test 1 meter, 3 Meters
Storage altitude 12,000 meters above mean sea level
Laser type 635 nm, <1 mW
Display Resolution 0.1 °C (0.2 °F)
Emissivity 0.10 to 1.00
Spectral Response 8 to 14 microns
Weight (With Batteries) 95g (3.35 oz)
Response Time (95 %) < 300 ms (95 % of reading)
Repeatability (% of reading) ± 0.5 % of reading or ± 0.5 °C (whichever is greater)
Typical Range 0.2-40 m/0.6-131 ft
Typical Measuring Tolerance 2.0 mm ± 1.5 mm/± 0.06 in
Maximum Measuring Tolerance ± 3.0 mm/0.12 in
Laser Point at Distance 6/30/60 mm (10/40/100 m)
Auto Laser Switch Off 90 sec
Auto Power Switch Off 180 sec
Maximum Relative Humidity 85 % at 20°F to 120 °F (-7 °C to 50 °C)
Accuracy up to 10m (+/-) ± 2 mm
Display illumination Yes
Area Yes
Units setting (smallest units displayed) 0,000m, 0' 00'' 1/32, 0 in 1/32
Laser class II
Battery life (2 x AAA) 1.5 V NEDA 24A/IEC LR03 Up to 3,000 measurements
Size (Hx W x D) 11.9 x 3.8 x 2.6 cm
Temperature range: Storage -25 °C to 70 °C (-13 °F to 158 °F)
Temperature range: Operation -10 °C to 50 °C (14 °F to 122 °F)
Calibration cycle Not applicable
Accuracy (Calibration geometry with ambient temperature 23 °C +/- 2 °C) ± 1.0 °C or ± 1.0 % of reading, whichever is greater ± 2.0 °C at -10 °C to 0 °C ± 3.0 °C at -30 °C to -10 °C
