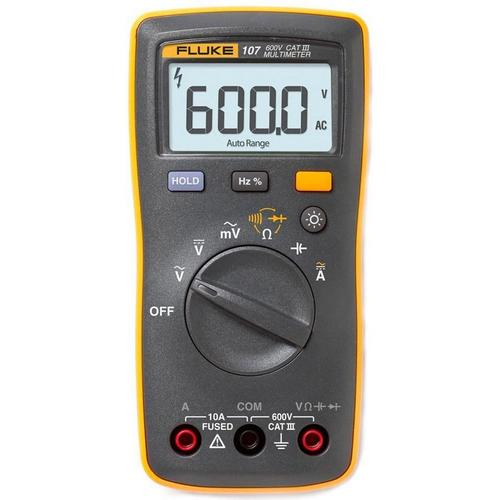

Fluke FLUKE-107ESP Palm-Sized Digital Multimeter, CAT III, 600 V

Brand: Fluke

Part #:

FLUKE-107ESP

Condition:

Brand New

Check availability

Manufacturer warranty

Description

FLUKE-107ESP Includes Only:

Multimeter
Test Lead Set
Magnetic Multi-Purpose Lanyard
2 x AAA Batteries

Features:

Enabled with current and voltage measurement functions, in a compact size
Measures resistance & continuity to check for broken wires
Data hold and backlit display to keep working safe and fast
Ergonomic and rugged
Comfortable grip, only weighs 200g and easy to carry
Rugged enclosure and 3.3' (1 m) drop test
Full-parameter automatic range test, which is convenient and quick to test; at the same time, it reduces the number of rotations of the wave plate and prolongs the life of the instrument
6000-word large screen LCD backlight display
Battery powered, automatic power save mode
Data retention feature makes it easier to read measurement results
Compliant with IEC61010-1 CATIII 600V overvoltage protection safety standard

Complete test functions:

AC and DC voltage measurement
AC and DC current measurement
Resistance measurement
Capacitance measurement
Diode measurement
Frequency and duty cycle test and other functions to meet basic electrical maintenance, electrical measurement, and electronic measurement applications

Applications:

Basic electrical maintenance
Electrical measurement
Electronic measurement

For more information, please see Data Sheet

Check availability

Technical details

Main features

Weight 0.44 lb (200 g)
Dimensions 5.6 x 2.7 x 1.1" (142 x 69 x 28 mm)
Battery Type 2 x AAA Batteries, NEDA 24A, IEC LR03
Temperature Operating: 32 to 104°F (0 to 40°C) Storage: -22 to 140°F (-30 to 60°C)
IP Rating IEC 60529: IP40
Temperature Coefficient 0.1 x (specified accuracy)/°C (<18 or >28°C)
Altitude Operating: 6561.7' (2000 m) Storage: 39,370.1' (12,000 m)
Battery Life 200 hours minimum
Backlight Accuracy: Yes
Duty Cycle Range: 0.1 to 99.9% Resolution: 0.1% Accuracy: 1% typical
AC Volts Overload protection: 600 V Input impedance (nominal): >10 MΩ, <100 pF Common mode rejection ratio: >60 dB at DC, 50 or 60 Hz
Capacitance Range: 50, 500 nF, 5, 50, 500, 1000 µF Resolution: 0.01, 0.1 nF, 0.001, 0.01, 0.1, 1µF Accuracy: 2% + 5, 2% + 5, 5% + 5, 5% + 5, 5% + 5, 5% + 5
Diode Test Range: 2 V Resolution: 0.001 V Accuracy: 10%
DC Volts Range: 6, 60, 600 V Resolution: 0.001, 0.01, 0.1 V Accuracy: 0.5% + 3, Overload protection: 600 V Input impedance (nominal): >10 MΩ, <100 pF Common mode rejection ratio: >100 dB at DC, 50 or 60 Hz Normal mode rejection ratio: >45 dB at 50 or 60 Hz
Maximum Voltage Between Any Terminal and Earth Ground 600 V
Display (LCD) 6000 counts, updates 3/sec
AC Volts (40 to 500 Hz) Range: 6, 60, 600 V Resolution: 0.001, 0.01, 0.1 V Accuracy: 1.0% + 3
AC Millivolts Range: 600 mV Resolution: 0.1 mV Accuracy: 3.0% + 3, Overload protection: 600 mV Input impedance (nominal): >1 M, <100 pF Common mode rejection ratio: >80 dB at 50 or 60 Hz
Resistance (Ohms) Range: 400 Ω, 4, 40, 400 kΩ, 4, 40 MΩ Resolution: 0.1 Ω, 0.001, 0.01, 0.1 kΩ, 0.001, 0.01 MΩ Accuracy: 0.5% + 3, 0.5% + 3, 0.5% + 3, 0.5% + 3, 0.5% + 3, 1.5% + 3
Frequency (10 Hz to 100 kHz) Range: 50, 500 Hz, 5, 50, 100 kHz Resolution: 0.01, 0.1 Hz, 0.001, 0.01, 0.1 kHz Accuracy: 0.1% + 3
AC Current (40 to 200 Hz) Range: 4, 10 A Resolution: 0.001, 0.01 A Accuracy: 1.5% + 3
DC Current (40 to 200 Hz) Range: 4, 10 A Resolution: 0.001, 0.01 A Accuracy: 1.5% + 3
Operating Humidity: Non-condensing when <50°F (<10°C) ≤90% at 50 to 86°F (10 to 30°C) ≤75% at 50 to 104°F (30 to 40°C)
Operating Humidity, 40 MΩ Range ≤80% at 50 to 86°F (10 to 30°C) ≤70% at 50 to 104°F (30 to 40°C)
Fuse Protection for Current Inputs 11 A, 1000 V FAST Fuse
