Fluke FLK-287/FVF/IR3000 Multimeter with Wireless Connectivity Kit

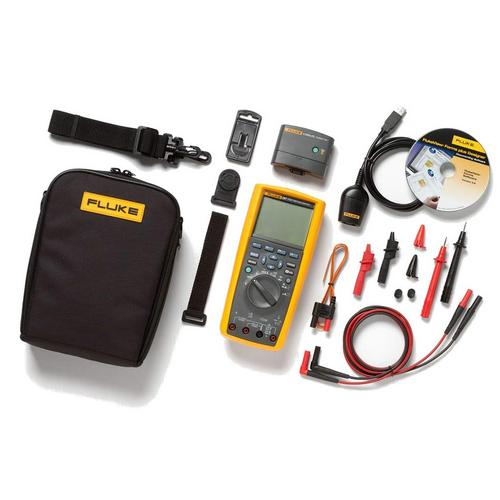

FLK-287/FVF/IR3000 Includes Only:

• Electronic Logging Multimeter
• FlukeView Forms Software and cable
• Thermocouple Probe
• CAT III 1000 V 10 A Modular test leads (red, black)
• CAT II 1000 V 10 A Modular test probes (red, black) and caps
• CAT III 1000 V 10 A Alligator Clips (red, black)
• Soft Case for meter protection and accessory storage
• Amp Jack Plug Set
• TPAK Magnetic Meter Hanger for Handsfree Operation

Features:

• Compatible with Fluke Connect mobile app and all FC connector.
• Let team see what see in an instant with ShareLive video call using the Fluke Connect mobile app and ir3000 FC wireless connector.
• TrendCapture graphically displays logged data session to quickly determine whether anomalies may have occurred.
• Zoom on trend provides unprecedented ability to view and analyze TrendCapture data; zoom in up to 14 times.
• Selectable AC filter (smoothing mode) helps display a steadier reading when the input signal is changing rapidly or noisy.
• Adjustable recording and auto hold thresholds, specify a percentage change in the readings that begins a event.
• Large 50,000 count, 1/4 VGA dot matrix display with white backlight.
• Logging function with expanded memory for unattended monitoring of signals over time. Using on-board TrendCapture users can graphically review logged readings without needing a PC. Store up to 15,000 recorded events.
• Save multiple logging sessions before PC download is necessary.
• Two terminal 50 ohm range with 1 milliohm resolution, 10 mA source current. Useful for measuring and comparing differences in motor winding resistance or contact resistance.
• Low Pass filter for accurate voltage and frequency measurements at the same time on adjustable speed motor drives and other electrically noisy equipment.
• LoZ Volts. Low impedance voltage function for eliminating ghost voltages. Also recommended when testing for absence or presence of live power.
• On board help screens for measurement functions. Unsure about a function - go to that function and press the "i" button.
• Real time clock for automatic time stamping of saved readings.
• Relative mode to remove test lead resistance from low ohms or capacitance measurements.
• True-RMS AC voltage and current for accurate measurements on non-linear signals.
• Measure up to 10 A (20 A for 30 seconds).
• 100 mF capacitance range.
• Peak capture to record transients as fast as 250 µs.
• FlukeView forms enable to document, store and analyze individual readings or a series of measurements, then convert them into professional-looking documents.

For more information, please see Data Sheet
