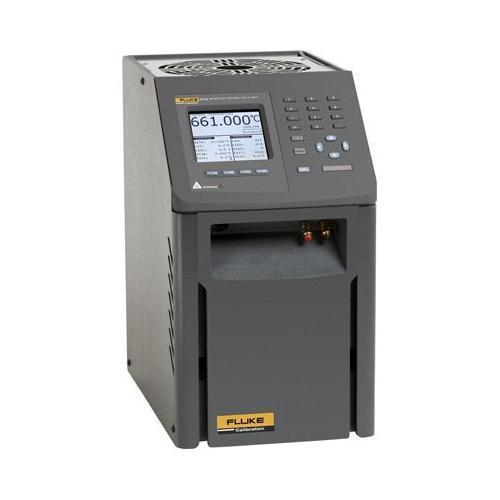

Buy Fluke 9173-D-R-156, Field Metrology Well with D Insert and Built-In

info@PrimeBuy.com

1-855-969-9322
1-908-282-3332 (Intl.)

Options and Related Products

Insert:: Insert: D

9173-D-R-156 Includes Only:

Field Metrology Well
9173-INSD Insert "D" 9173
Built-In Reference

Features:

Best-performing industrial heat sources (accuracy, stability, uniformity) in the world
Immersion depth to 8in (203mm)
Temperature range from -49 to 1,292°F (-45 to 700°C)

Featuring an 8in (203mm) immersion depth, plus a range from 50 to 700°C, this field metrology well delivers stable, uniform performance, working to help eliminate uncertainty budgets when calibrating thermometers at high temperatures. The metrology well comes with a D insert and built-in reference for added capability. Accurate enough for lab use, and rugged and portable enough to take anywhere.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Range (at 23°C Ambient)	122 to 1,292°F (50 to 700°C) (calibrated to 660°C; reference thermometer recommended at higher temperatures)
Display Accuracy	±0.2°C: 50 to 425°C ±0.25°C: 425 to 660°C
Stability	±0.005°C: 50 to 100°C ±0.01°C: 100 to 425°C ±0.03°C: 425 to 700°C
Well Depth	8in (203mm)
Display	LCD, °C or °F (user-selectable)
Size (H x W x D)	14.4 x 8 x 12.7in (366 x 203 x 323mm)
Weight	33lbs (15kg)
Power	115VAC (±10%), or 230 VAC (±10%), 50/60Hz, 1,025W
Computer Interface	RS-232
Traceable Calibration	Data at 100°C, 200°C, 350°C, 500°C and 660°C

Product Details

Range (at 23°C Ambient)	122 to 1,292°F (50 to 700°C) (calibrated to 660°C; reference thermometer recommended at higher temperatures)
Display Accuracy	±0.2°C: 50 to 425°C ±0.25°C: 425 to 660°C
Stability	±0.005°C: 50 to 100°C ±0.01°C: 100 to 425°C ±0.03°C: 425 to 700°C
Well Depth	8in (203mm)
Display	LCD, °C or °F (user-selectable)
Size (H x W x D)	14.4 x 8 x 12.7in (366 x 203 x 323mm)
Weight	33lbs (15kg)
Power	115VAC (±10%), or 230 VAC (±10%), 50/60Hz, 1,025W
Computer Interface	RS-232
Traceable Calibration	Data at 100°C, 200°C, 350°C, 500°C and 660°C

Note

Note: Please read description carefully. Do not base your order on the picture presented.
