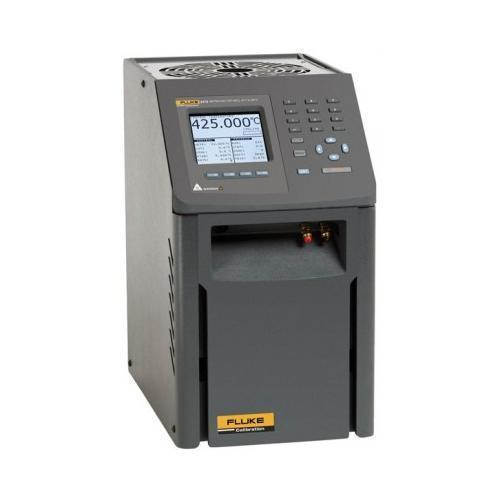

Buy Fluke 9172-C-156, Field Metrology Well with C Insert

info@PrimeBuy.com

1-855-969-9322
1-908-282-3332 (Intl.)

Options and Related Products

Insert:: Insert: C

9172-C-156 Includes Only:

Field Metrology Well
9172-INSC Insert "C" 9172

Features:

Best-performing industrial heat sources (accuracy, stability, uniformity) in the world
Immersion depth to 8in (203mm)
Temperature range from -49 to 1,292°F (-45 to 700°C)

Reduce stem conduction errors at high temperatures by using this field metrology well, which has 8in (203mm) of depth immersion. With exceptional accuracy to ±0.2°C at 425°C, this metrology well comes with a C insert. Accurate enough for lab use, and rugged and portable enough to take anywhere.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Range (at 23°C Ambient)	95 to 797°F (35 to 425°C)
Display Accuracy	±0.1°C: 35 to 100°C ±0.15°C: 100 to 225°C ±0.2°C: 225 to 425°C
Stability	±0.005°C: 35 to 100°C ±0.008°C: 100 to 225°C ±0.01°C: 225 to 425°C
Well Depth	8in (203mm)
Display	LCD, °C or °F (user-selectable)
Size (H x W x D)	14.4 x 8 x 12.7in (366 x 203 x 323mm)
Weight	29lbs (13.2kg)
Power	115VAC (±10%), or 230VAC (±10%), 50/60Hz, 1,025W
Computer Interface	RS-232
Traceable Calibration	Data at 100°C, 150°C, 250°C, 350°C and 425°C

Product Details

Range (at 23°C Ambient)	95 to 797°F (35 to 425°C)
Display Accuracy	±0.1°C: 35 to 100°C ±0.15°C: 100 to 225°C ±0.2°C: 225 to 425°C
Stability	±0.005°C: 35 to 100°C ±0.008°C: 100 to 225°C ±0.01°C: 225 to 425°C
Well Depth	8in (203mm)
Display	LCD, °C or °F (user-selectable)
Size (H x W x D)	14.4 x 8 x 12.7in (366 x 203 x 323mm)
Weight	29lbs (13.2kg)
Power	115VAC (±10%), or 230VAC (±10%), 50/60Hz, 1,025W
Computer Interface	RS-232
Traceable Calibration	Data at 100°C, 150°C, 250°C, 350°C and 425°C

Note

Note: Please read description carefully. Do not base your order on the picture presented.
