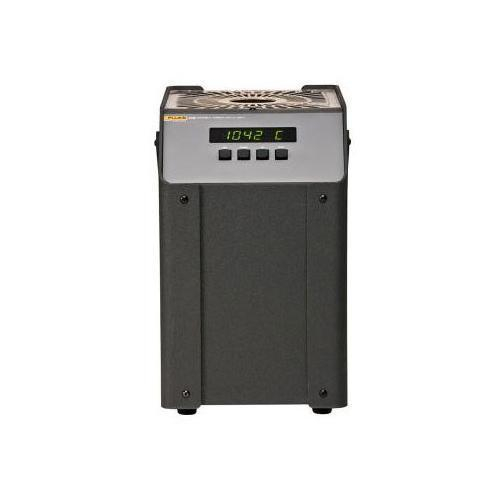

Buy Fluke 9150-B-156, Thermocouple Furnace with 3150-3 Multi-Hole Insert

info@PrimeBuy.com

1-855-969-9322
1-908-282-3332 (Intl.)

9150-B-156 Includes Only:

Thermocouple Furnace
3150-3 Insert, 9150-B Alumina with Comparison Holes
NIST-Traceable Calibration

Features:

Low-cost thermocouple furnace
NIST-traceable calibration
RS-232 port standard

Comes with an RS-232 port for connection to a PC and is factory-calibrated and comes with test data and a calibration traceable to NIST.

Equipped with a microprocessor-based controller, this thermocouple furnace delivers excellent set-point accuracy, plus it comes with a removable 3150-3 well insert for added flexibility. The RS-232 port makes it easy to connect the furnace to a compatible computer.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Temperature Range	302 to 2,192°F (150 to 1,200°C)
Display Resolution	0.1 to 999.9°; 1° above 1,000°
Stability	±0.5°C
Display Accuracy	±5°C
Well Diameter	1.25in (32mm)
Well Depth	5.5in (140mm); 4in (101mm) removable insert, plus 1.5in (38mm) insulator
Power	115VAC (±10%), 10.5A or 230VAC (±10%), 5.2A, switchable, 50/60Hz, 1,200W
Size (HxWxD)	12.4 x 8.2 x 12.4in (315 x 208 x 315mm)
Weight	28lbs (13kg)
NIST-Traceable Calibration	Data at 150°C, 300°C, 450°C, 600°C, 800°C, 1,000°C and 1,200°C

Product Details

Temperature Range	302 to 2,192°F (150 to 1,200°C)
Display Resolution	0.1 to 999.9°; 1° above 1,000°
Stability	±0.5°C
Display Accuracy	±5°C
Well Diameter	1.25in (32mm)
Well Depth	5.5in (140mm); 4in (101mm) removable insert, plus 1.5in (38mm) insulator
Power	115VAC (±10%), 10.5A or 230VAC (±10%), 5.2A, switchable, 50/60Hz, 1,200W
Size (HxWxD)	12.4 x 8.2 x 12.4in (315 x 208 x 315mm)
Weight	28lbs (13kg)
NIST-Traceable Calibration	Data at 150°C, 300°C, 450°C, 600°C, 800°C, 1,000°C and 1,200°C

Note

Note: Please read description carefully. Do not base your order on the picture presented.
