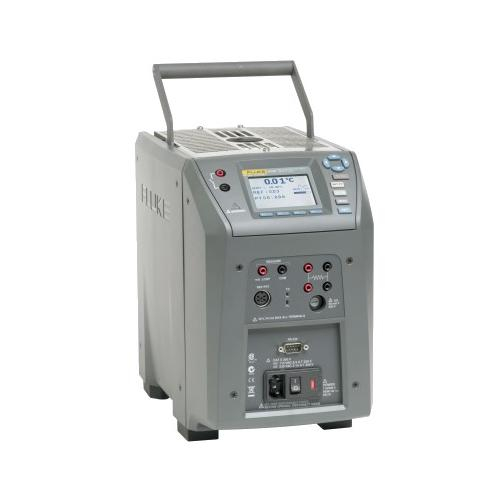

Fluke 9142-A-P-156 Low Temp Process Field Metrology Well

9142-A-P-156 Includes Only:

• Fluke 9142-A-P-156 Low Temp Process Field Metrology Well

This unit has a built-in two channel thermometer readout that measures PRTs, RTDs, thermocouples, and 4-20mA transmitters.

Features:

• Each process version provides built-in two-channel thermometer readout that measures PRTs, RTDs, thermocouples, and 4-20 mA transmitters which includes the 24V loop supply to power the transmitter
• Accuracy ranges from +/-0.01°C to +/-0.07°C depending on the measured temperature
• Accepts an ITS-90 reference PRT that contains individual calibration constants that reside in a memory chip located inside the sensor housing, so sensors may be used interchangeably
• Second channel is user-selectable for 2-, 3-, or 4-wire RTDs, thermo-couples, or 4-20 mA transmitters
• With 24V loop power, you are able to power and measure the trans-mitter current while sourcing and measuring temperature thus allowing for the measurement of as-found and as-left data in one self-contained calibration tool
• Onboard non-volatile memory for documentation of up to 20 tests
• Each test can be given a unique alphanumeric ID and will record block temperature, reference temperature, UUT values, error, date, and time which can be viewed via the front panel or exported using Interface-it software
• Stability indicator visually and audibly tells you the Field Metrology Well is stable to the selectable criteria
• Preprogrammed calibration routines are stored in memory for easy recall, and all inputs are easily accessible via the front panel of the instrument
