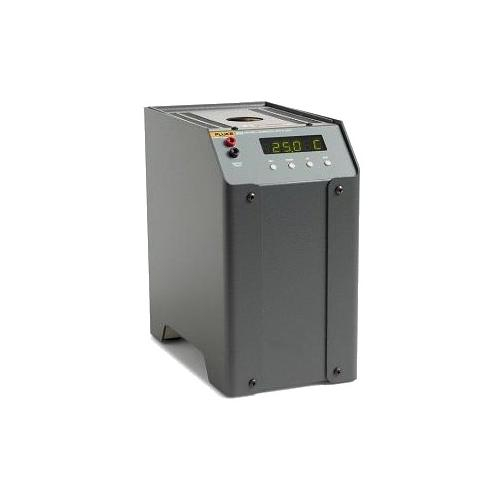

Fluke 9103-C-156 Field Dry-Well Temperature Calibrator, Insert C

  • Brand Fluke
  • Part # 9103-C-156
  • Condition
    Brand New

Contact Us For Pricing

Availability
Contact Us
Check Availability
Quantity
Share:

9103-C-156 Includes Only:

  • Dry-Well
  • RS-232 and Interface-It Software

Cover below-ambient temperatures as low as -13°F (-25°C) with this field dry-well. This unit reaches 32°F (0°C) in just eight minutes, and 212°F (100°C) in six minutes. Additionally, it features six wells at 1/4" (6.35 mm).

Features:

  • Lightweight and very portable
  • Accuracy to +/-0.25°C
  • Easy to recalibrate
See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Reseller
Manufacturer Warranty

Technical Details

Reviews
Range-13 to 284°F (-25 to 140°C) at 23°C ambient
Accuracy+/-0.25°C (holes greater than 1/4" [6.35 mm]: +/-1°C)
Stability+/-0.02°C at -13°F (-25°C)
+/-0.04°C at 284°F (140°C)
Well-to-Well Uniformity+/-0.1°C between similarly sized wells
Heating Times18 minutes from ambient to 284°F (140°C)
Cooling Times20 minutes from ambient to -13°F (-25°C)
Stabilization Time7 minutes
Immersion Depth4.875" (124 mm)
InsertsInsert A, B, C, or D (specify when ordering)
Outside Insert Dimensions1.25 x 488" (31.8 x 124 mm)
Computer InterfaceRS-232 with free Interface-it software
Power115 V AC (+/-10%), 1.3 A or 230 V AC (+/-10%), 0.7 A, switchable, 50/60 Hz, 150 W
Wells6 x 1/4" (6.35 mm)
Product Details
Range-13 to 284°F (-25 to 140°C) at 23°C ambient
Accuracy+/-0.25°C (holes greater than 1/4" [6.35 mm]: +/-1°C)
Stability+/-0.02°C at -13°F (-25°C)
+/-0.04°C at 284°F (140°C)
Well-to-Well Uniformity+/-0.1°C between similarly sized wells
Heating Times18 minutes from ambient to 284°F (140°C)
Cooling Times20 minutes from ambient to -13°F (-25°C)
Stabilization Time7 minutes
Immersion Depth4.875" (124 mm)
InsertsInsert A, B, C, or D (specify when ordering)
Outside Insert Dimensions1.25 x 488" (31.8 x 124 mm)
Computer InterfaceRS-232 with free Interface-it software
Power115 V AC (+/-10%), 1.3 A or 230 V AC (+/-10%), 0.7 A, switchable, 50/60 Hz, 150 W
Wells6 x 1/4" (6.35 mm)
Note

Note: Please read description carefully. Do not base your order on the picture presented.
