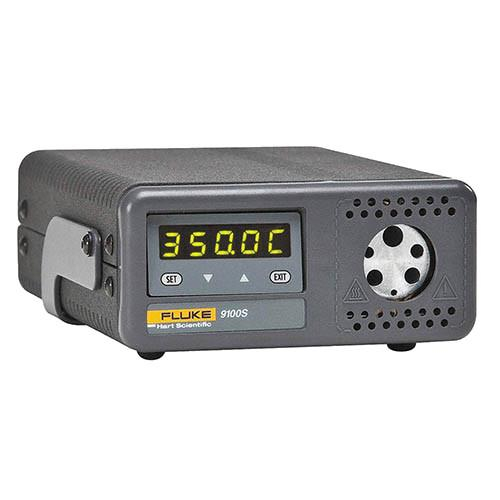

Fluke 9100S-D-156 Dry Block Calibrator with Block D

9100S-D-156 Includes Only:

• Dry Well
• NIST-traceable Calibration
• Software
• Power Cord
• Serial Cable
• User's Guide

By using a precision platinum RTD as a sensor, well temperature is controlled with a Triac-driven heater. Small enough to use in the field and accurate enough to use in the lab, the unit functions equally well as a portable instrument or benchtop temperature calibrator for calibrating thermocouple and RTD temperature probes.

Within a range of 95°F to 707°F (35°C to 375°C ), this unit provides continuous accurate calibration of temperature sensors and devices. With a proprietary Fluke Calibration temperature controller, the dry well has a display resolution of 0.1 degrees, an accuracy of +/-0.5°C, stability of +/-0.1°C, and a stabilization time of just five minutes.

Features:

• Compact design
• Ranges from 95 to 707°F (35 to 375°C)
• Accuracy to +/-0.25°C, stability of +/-0.25°C at 122°F (50°C)
• RS-232 interface with 9930 Interface-it v3.81 software
• Rapid heating and cooling
• Prop stand
• Built in programmable features include
  • Temperature scan rate control
  • Eight set-point memory
  • Adjustable readout in°C or°F
