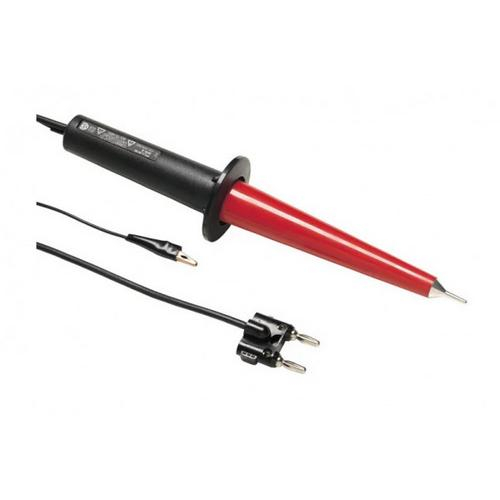

Fluke 80K-6 KV High Voltage Probe

  • Brand Fluke
  • Part # 80K-6
  • Condition
    Brand New

Contact Us For Pricing

Availability
Contact Us
Check Availability
Quantity
Share:

80K-6 Includes Only:

  • Fluke 80K-6 KV High Voltage Probe

Designed to extend the voltage measuring capability of an AC/DC voltmeter to 6000 V peak AC or DC Overvoltage Category I. The probe provides high accuracy when used with a voltmeter having 10 MΩ input impedance. Intended for low energy applications.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Reseller
Manufacturer Warranty

Technical Details

Reviews
Voltage Range0 to 6 kV, DC or peak AC
Input Impedance75 MΩ nominal
Division Ratio1000:1
AccuracyDC to 500 Hz: +/-1%
500 Hz to 1 kHz: +/-2%
Above 1 kHz: Output reading falls. Typically, -30% at 10 kHz
TemperatureStorage: -4 to 140°F (-20 to 60°C)
Operating: 32 to 122°F (0 to 50°C)
Temperature Coefficient100 ppm/C
Relative Humidity20 to 80%
Altitude6561.68' (2000 m)
Shock and VibrationShock: 3.28' (1 m) drop
Vibration: 5 to 55 Hz swept sine 3 g maximum
Dimensions9.8" (24.89 cm) (probe body), 2.0" (5.10 cm) max. width
Weight45 oz (12.7 g)
SafetyCAN/CSA C22.2 No. 1010.2.031-94 & IEC 1010-2-031:1993, Type B, 6 kVDC or peak AC, 4.24 kV rms AC, Over-voltage Cat. I (Voltage derived from limited energy transformers)
Product Details
Voltage Range0 to 6 kV, DC or peak AC
Input Impedance75 MΩ nominal
Division Ratio1000:1
AccuracyDC to 500 Hz: +/-1%
500 Hz to 1 kHz: +/-2%
Above 1 kHz: Output reading falls. Typically, -30% at 10 kHz
TemperatureStorage: -4 to 140°F (-20 to 60°C)
Operating: 32 to 122°F (0 to 50°C)
Temperature Coefficient100 ppm/C
Relative Humidity20 to 80%
Altitude6561.68' (2000 m)
Shock and VibrationShock: 3.28' (1 m) drop
Vibration: 5 to 55 Hz swept sine 3 g maximum
Dimensions9.8" (24.89 cm) (probe body), 2.0" (5.10 cm) max. width
Weight45 oz (12.7 g)
SafetyCAN/CSA C22.2 No. 1010.2.031-94 & IEC 1010-2-031:1993, Type B, 6 kVDC or peak AC, 4.24 kV rms AC, Over-voltage Cat. I (Voltage derived from limited energy transformers)
Note

Note: Please read description carefully. Do not base your order on the picture presented.
