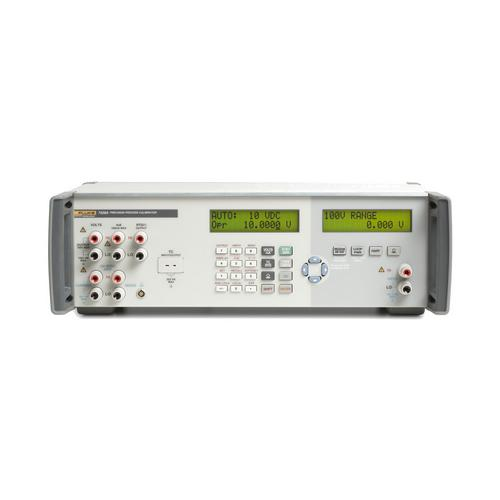

Fluke 7526A-156 Precision Process Calibrator, 115V

  • Brand Fluke
  • Part # 7526A-156
  • Condition
    Brand New

Contact Us For Pricing

Availability
Contact Us
Check Availability
Quantity
Share:

7526A-156 Includes Only:

  • Calibration Report
  • User Manual CD
  • Getting Started Guide
  • Power Cord
  • Thermocouple Shorting Jumper
  • USB-to-Serial Adapter Cable

Calibrate RTD and thermocouple readouts, pressure gauges, temperature transmitters, digital process simulators, data loggers, multimeters and more using this precision process calibrator.

Features:

  • Sources and measures DC voltage, current, resistance, RTDs and thermocouples
  • Extend pressure measurement range with any Fluke 750P and 700P Series Pressure Modules
  • Includes 24V DC transmitter loop power supply
  • Measures 4 to 20mA loop current
  • Includes automated switch-test function
  • Accepts ITS-90 coefficients for accurate SPRT measurements
  • Compatible with MET/CAL Calibration Software
See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Reseller
Manufacturer Warranty

Technical Details

Reviews
Standard InterfaceRS-232, IEEE-488 (GPIB)
Temperature PerformanceOperating: 0 to 50°C
Calibration (tcal): 18 to 28°C
Storage: -20 to 70°C
Electromagnetic CompatibilityCE: Conforms to EN61326 (operation in controlled EM environments)
Temperature CoefficientFor temperatures outside tcal 5°C is 10% of the 90-day specification (or 1 year if applicable) per°C
Relative HumidityOperating:
<80% to 30°C
<70% to 40°C
<40% to 50°C
AltitudeOperating: 9,800ft (3,000m) max
Non-operating: 40,000ft (12,200m) max
SafetyEN/IEC 61010-1:2010 3rd Edition, UL 61010-1:2012, CAN/CSA 22.2 No. 61010-1-12
Analog Low Isolation20V
Line Power120V~: 100 to 120V
240V~: 220 to 240V
Line Frequency47 to 63Hz
Line Voltage Variation+/-10% about setting
Power Consumption15VA maximum
Product Details
Standard InterfaceRS-232, IEEE-488 (GPIB)
Temperature PerformanceOperating: 0 to 50°C
Calibration (tcal): 18 to 28°C
Storage: -20 to 70°C
Electromagnetic CompatibilityCE: Conforms to EN61326 (operation in controlled EM environments)
Temperature CoefficientFor temperatures outside tcal 5°C is 10% of the 90-day specification (or 1 year if applicable) per°C
Relative HumidityOperating:
<80% to 30°C
<70% to 40°C
<40% to 50°C
AltitudeOperating: 9,800ft (3,000m) max
Non-operating: 40,000ft (12,200m) max
SafetyEN/IEC 61010-1:2010 3rd Edition, UL 61010-1:2012, CAN/CSA 22.2 No. 61010-1-12
Analog Low Isolation20V
Line Power120V~: 100 to 120V
240V~: 220 to 240V
Line Frequency47 to 63Hz
Line Voltage Variation+/-10% about setting
Power Consumption15VA maximum
Note

Note: Please read description carefully. Do not base your order on the picture presented.
