Buy Fluke 5623B-6-G, RTD Freezer Probe, Gold Pins, -100 to 156degC

info@PrimeBuy.com

1-855-969-9322
1-908-282-3332 (Intl.)

Options and Related Products

Connection:: Connection: Gold Pin

5623B-6-G Includes Only:

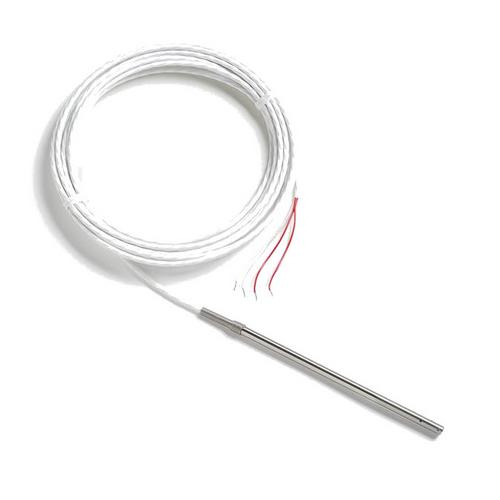

Fluke 5623B-6-G Precision RTD Freezer Probe with Gold Pins, 6 x 0.25in, -100 to 156°C

Capable of withstanding temperatures from -100 to 156°C, this precision RTD freezer probe is ideal for verifying the temperature of freezers or autoclaves. The probe prevents moisture infiltration thanks to its sealed construction, and it can be completely immersed in liquids. The unit features gold pin connections.

Features:

Fully immersible probe assembly to -148°F (-100°C)
NVLAP-accredited calibration, lab code 200706-0, and ITS-90 coefficients
Accuracy to +/-0.05°C over the full range

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Resistance	Nominal 100Ω (+/-0.1Ω)
Temperature Coefficient	0.003925Ω/Ω/°C nominal
Temperature Range	-148 to 312.8°F (-100 to 156°C)
Transition Temperature	-148 to 312.8°F (-100 to 156°C)
Drift Rate	+/-0.01°C per year maximum at 0°C, when used periodically at max temperature
Sheath Material	Inconel 600
Leads	PTFE-insulated, silver-plated stranded copper, 22AWG
Termination	Specify (see models and accessories)
Calibration	Includes manufacturer's NVLAP-accredited, lab code 200706-0, calibration and table with R vs. T values in 1°C increments from -80°C to 156°C; ITS-90 coefficients
Calibrated Accuracy (Includes Calibration Uncertainty And Drift) (k=2)	+/-0.05°C over the full range
Cable Length	20ft (6.1m)

Product Details

Resistance	Nominal 100Ω (+/-0.1Ω)
Temperature Coefficient	0.003925Ω/Ω/°C nominal
Temperature Range	-148 to 312.8°F (-100 to 156°C)
Transition Temperature	-148 to 312.8°F (-100 to 156°C)
Drift Rate	+/-0.01°C per year maximum at 0°C, when used periodically at max temperature
Sheath Material	Inconel 600
Leads	PTFE-insulated, silver-plated stranded copper, 22AWG
Termination	Specify (see models and accessories)
Calibration	Includes manufacturer's NVLAP-accredited, lab code 200706-0, calibration and table with R vs. T values in 1°C increments from -80°C to 156°C; ITS-90 coefficients
Calibrated Accuracy (Includes Calibration Uncertainty And Drift) (k=2)	+/-0.05°C over the full range
Cable Length	20ft (6.1m)

Note

Note: Please read description carefully. Do not base your order on the picture presented.

Reviews

Fluke 5623B-6-G RTD Freezer Probe, Gold Pins, -100 to 156degC
