Buy EnGenius FREESTYL SIP2, Cordless Long Range Phone System Carry-Away

info@PrimeBuy.com

1-855-969-9322
1-908-282-3332 (Intl.)

FREESTYL SIP2 Includes Only:

x1 - SIP Phone Base with antenna
x1 - Base AC adapter

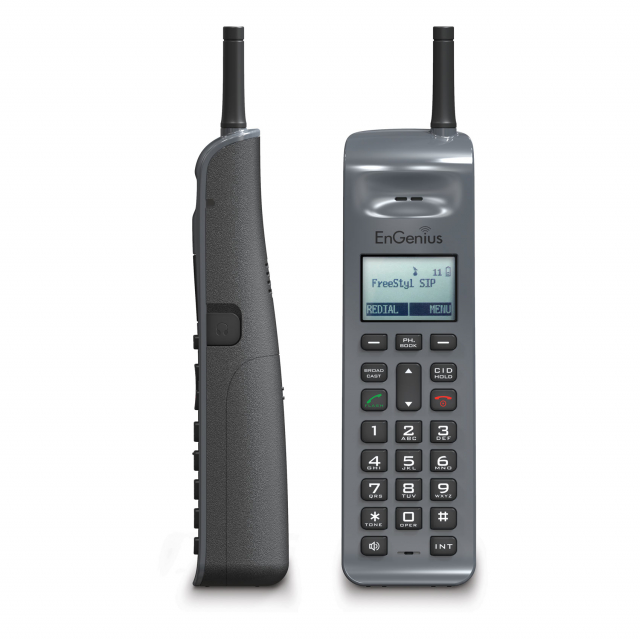

x2 - SIP Handsets w/ antennas and battery covers
x2 - Battery packs
x2 - Handset Charging Cradles
x2 - Handset Charging Cradle AC Adapters
x2 - Handset Belt Clips

Features:

Range up to: 10 acres (open), 100,000 sq. ft.(semi-open) or 6 floors / 25,000 sq. ft. (office space)
Supports 10 SIP accounts
Up to 4 concurrent calls
Work behind IP-PBX or hosted provider services

The FreeStyl SIP provides long-range coverage in a carry-away, sleek, office-style cordless phone. Expandible to 10 handset and 10 SIP accounts, this system avoid adding demands to the Wi-Fi network by utilizing 900 MHz frequency.

For more information, please see Product Manual

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Base Station

Frequency

902-928 MHz

RF Power

Peak: 27 dBm / Average: 21 dBm

Channel Spacing

200kHz

Number of Channels

128

Modulation

MSK

Multiple Access

Frequency Hopping TDMA

Frequency Hopping Rate

100 per second

TDMA Frame Length

10 ms

Number of Slots/Frame

Receiver Sensitivity

< -108 dBm ( at BER 10-2)

Antenna Connector

Reverse TNC

Antenna Gain

2 dBi

TX Power Control Range

19~27dBm

Internet Interface

RJ45 x 1

Speech Coding

8 kbps G.729AB

Channel Coding

8 kbps Convolutional + CRC

Transmission Data Rate

170.667 kbps

User Data Rate

64 kbps duplex

Duplex

Time Division Duplex (TDD)

No. of System ID

65,536

Ring Signal

20-50 Hz, 30-90 Vrms

Power Source

AC/DC 100~240V/5V,1A SW Adapter

Regulation Compliance

FCC Part 15/ IC

Operating Temperature

0 - 50 C

Storage Temperature

-40 - 70 C

Humidity

20 -75 %

Portable Handset

Frequency

902-928 MHz

RF Power

Peak: 26 dBm / Average: 20 dBm

Channel Spacing

200 kHz

Number of Channels

128

Modulation

MSK

Multiple Access

Frequency Hopping TDMA

TDMA Frame Length

100 per second

Number of Slots/Frame

Receiver Sensitivity

< -108 dBm ( at BER 10-2)

Antenna Connector

Non-standard

Antenna Gain

1.5 dBi (short antenna)
2.5 dBi (long antenna)

TX Power Control Range

19~26dBm

Speech Coding

8 kbps G.729AB

Channel Coding

8 kbps Convolutional + CRC

Transmission Data Rate

170.667 kbps

User Data Rate

64 kbps duplex

Duplex

Time Division Duplex (TDD)

No. of System ID

65,536

Power Source

3.7V/1100 mAh Li-Ion Battery
Optional: 3.7V/1700mAh

Charger Current

550 mA

Charge Time

3 hours

Regulation Compliance

FCC Part 15
Hearing Aid Compatible/ IC

Operating Temperature

-10 - 60 C

Storage Temperature

-40 - 70 C

Humidity

20 - 75 %

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

***

warning WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov

Product Details

Base Station

Frequency

902-928 MHz

RF Power

Peak: 27 dBm / Average: 21 dBm

Channel Spacing

200kHz

Number of Channels

128

Modulation

MSK

Multiple Access

Frequency Hopping TDMA

Frequency Hopping Rate

100 per second

TDMA Frame Length

10 ms

Number of Slots/Frame

Receiver Sensitivity

< -108 dBm ( at BER 10-2)

Antenna Connector

Reverse TNC

Antenna Gain

2 dBi

TX Power Control Range

19~27dBm

Internet Interface

RJ45 x 1

Speech Coding

8 kbps G.729AB

Channel Coding

8 kbps Convolutional + CRC

Transmission Data Rate

170.667 kbps

User Data Rate

64 kbps duplex

Duplex

Time Division Duplex (TDD)

No. of System ID

65,536

Ring Signal

20-50 Hz, 30-90 Vrms

Power Source

AC/DC 100~240V/5V,1A SW Adapter

Regulation Compliance

FCC Part 15/ IC

Operating Temperature

0 - 50 C

Storage Temperature

-40 - 70 C

Humidity

20 -75 %

Portable Handset

Frequency

902-928 MHz

RF Power

Peak: 26 dBm / Average: 20 dBm

Channel Spacing

200 kHz

Number of Channels

128

Modulation

MSK

Multiple Access

Frequency Hopping TDMA

TDMA Frame Length

100 per second

Number of Slots/Frame

Receiver Sensitivity

< -108 dBm ( at BER 10-2)

Antenna Connector

Non-standard

Antenna Gain

1.5 dBi (short antenna)
2.5 dBi (long antenna)

TX Power Control Range

19~26dBm

Speech Coding

8 kbps G.729AB

Channel Coding

8 kbps Convolutional + CRC

Transmission Data Rate

170.667 kbps

User Data Rate

64 kbps duplex

Duplex

Time Division Duplex (TDD)

No. of System ID

65,536

Power Source

3.7V/1100 mAh Li-Ion Battery
Optional: 3.7V/1700mAh

Charger Current

550 mA

Charge Time

3 hours

Regulation Compliance

FCC Part 15
Hearing Aid Compatible/ IC

Operating Temperature

-10 - 60 C

Storage Temperature

-40 - 70 C

Humidity

20 - 75 %

Note

Note: Please read description carefully. Do not base your order on the picture presented.
