Features:
- Zero distortion, less than 1 ppm (>0.0001%)
- Solid state, transformerless
- Switchable 48V phantom power
- Polarity invert switch
- Peak amplitude clip detection
- Transparent gain switchable from 5 to 60 dB in 5 dB steps
- High output level of +30 dBu
- Fully differential (balanced) from input to output (i.e., no internal conversion to single-ended)
- All discrete components; Class A amplification (no ICs and electrolytic capacitors in signal path)
- Greater transparency with minimum signal path and features
- Low noise floor
- Wide bandwidth
- Suitable for most ribbon, dynamic, or condenser microphones

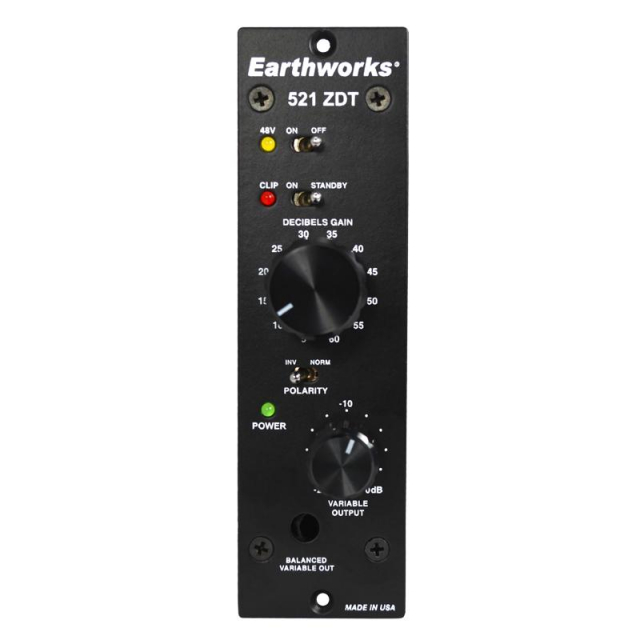

The solid-state Preamplifier features switchable phantom power, polarity invert, and peak amplitude clip detection. The transformerless output stage of the preamplifier can easily drive long cable runs without loss of quality, making it suitable for remote recordings. Transparent gain is switchable from 5 to 60 dB in 5 dB steps.
The microphone preamplifier topology provides strong common mode rejection, a high overload margin, and a low noise floor, combined with the wide bandwidth of the preamplifiers (1 Hz to 200 kHz +0.5 dB), and distortion of less than one part per million (0.0001%). This level of performance is maintained over an extensive range of impedances applied to the input, making the preamplifier suitable for practically any microphone - ribbon, dynamic, or condenser.
