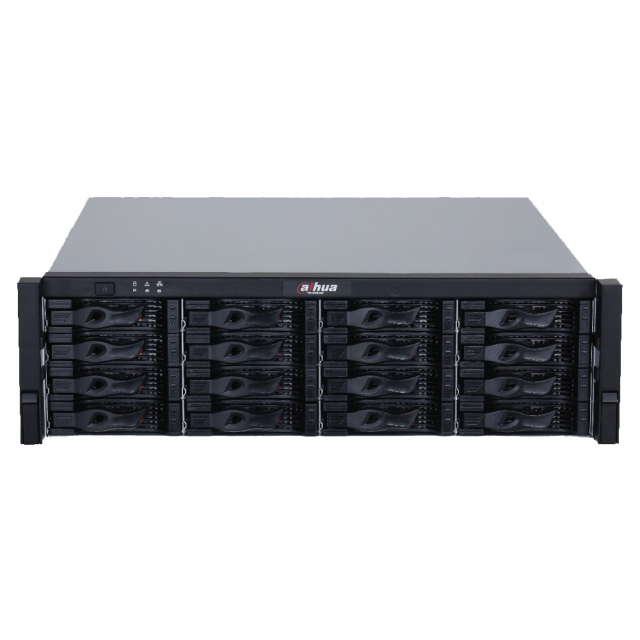

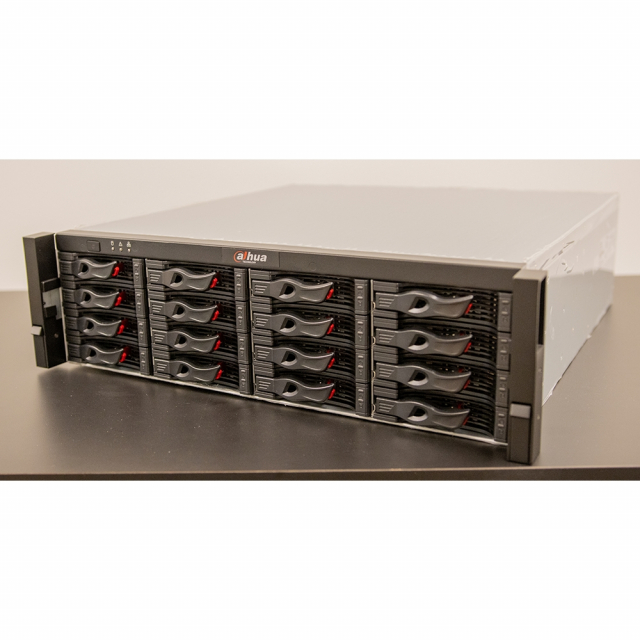

Dahua DHI-EVS5016S-R-V2 16-bay HDD Enterprise Video Storage

Features:

• High-performance Intel processor
• 320 IP camera channel input
• Maximum 800 Mbps incoming/recording bandwidth

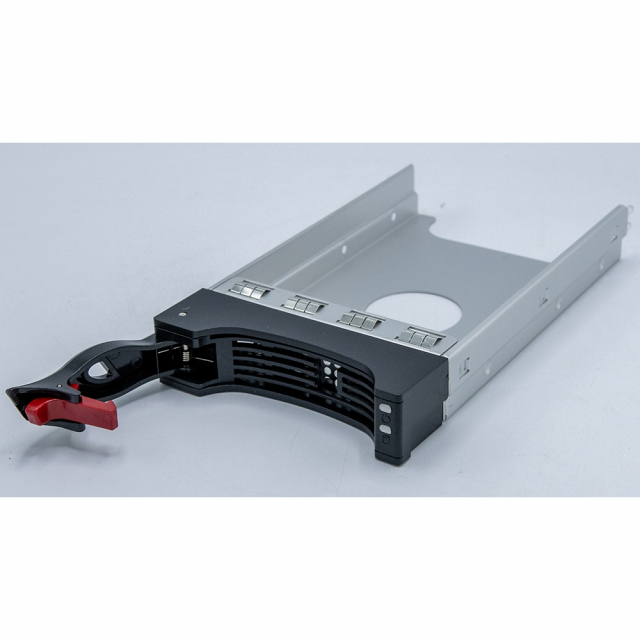

• 16 HDD, SATA, hot-swap
• Supports RAID 0/1/5/6/10/50/60
• Supports standard iSCSI protocol for expanded storage space
• Modular design
• Redundant power

The DHI-EVS5016S-R-V2 Enterprise Video Storage device is designed and developed to meet the needs of medium-range to high-end IP video surveillance applications. It supports 320 IP camera channels with 800 Mbps incoming/recording/forwarding bandwidth. Combined with hot-swap power supplies, fans, and hard disk drives, the EVS offers Enterprise Class availability. This EVS is ideal for a wide range of applications including public safety, transportation, hotels, shopping malls, city centers, and financial institutions that demand flexibility, reliability, and centralized storage management. This EVS is compatible with numerous third-party devices making it the perfect solution for surveillance systems with or without a video management system (VMS).

Modular Design. The Enterprise Video Storage is rack mountable and designed to manage up to 320 channels of digital video for scalability. Powered by Intel technology, the unit features dual redundant power supplies and a hot-swappable configuration to ensure stability.

RAID Support. The Enterprise Video Storage device provides the processor and RAID enclosure in one chassis, resulting in both space and cost savings. RAID 0/1/3/4/5/6/10/50/60 support is available through a hardware-based RAID controller that removes the loading on the processor that software RAID can bring. A convenient web browser interface is used to manage the RAID controller.

N+M Hot Standby. The highly reliable redundancy N+M Hot Standby design provides a secure failover technique ensuring immediate backup. In the event of a system failure, the slave instantly takes over the master ensuring no data is lost.

Automatic Network Replenishment (ANR) Technology. Video storage devices with the ANR function automatically store video data on an IP camera SD card when the network is disconnected. After recovery of the network, the NVR automatically retrieves the video data stored on the camera.

For more information, please see Data Sheet
