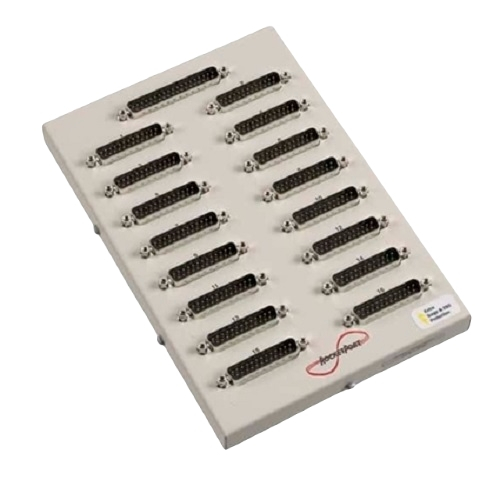

Comtrol 30075-5 RocketPort DB25M Surge Interface Panel

Pepperl+Fuchs Comtrol, 30075-5, RocketPort 16-Port DB25M Surge Interface Panel

Features:

• DB25 male connectors
• RS-232/422/485 software-selectable ports
• Communication speeds up to 460Kbps
• 25KV surge protection
• Rugged steel enclosure
• Works with RocketPort INFINITY or EXPRESS cards
• RoHS2 compliant under CE

The next-generation RocketPort 16-Port Surge Interface has sixteen DB25M connections that can be configured for RS-232/422/485 serial communications at speeds up to 460Kbps. The interface is connected to the required RocketPort controller card through a host interface cable.

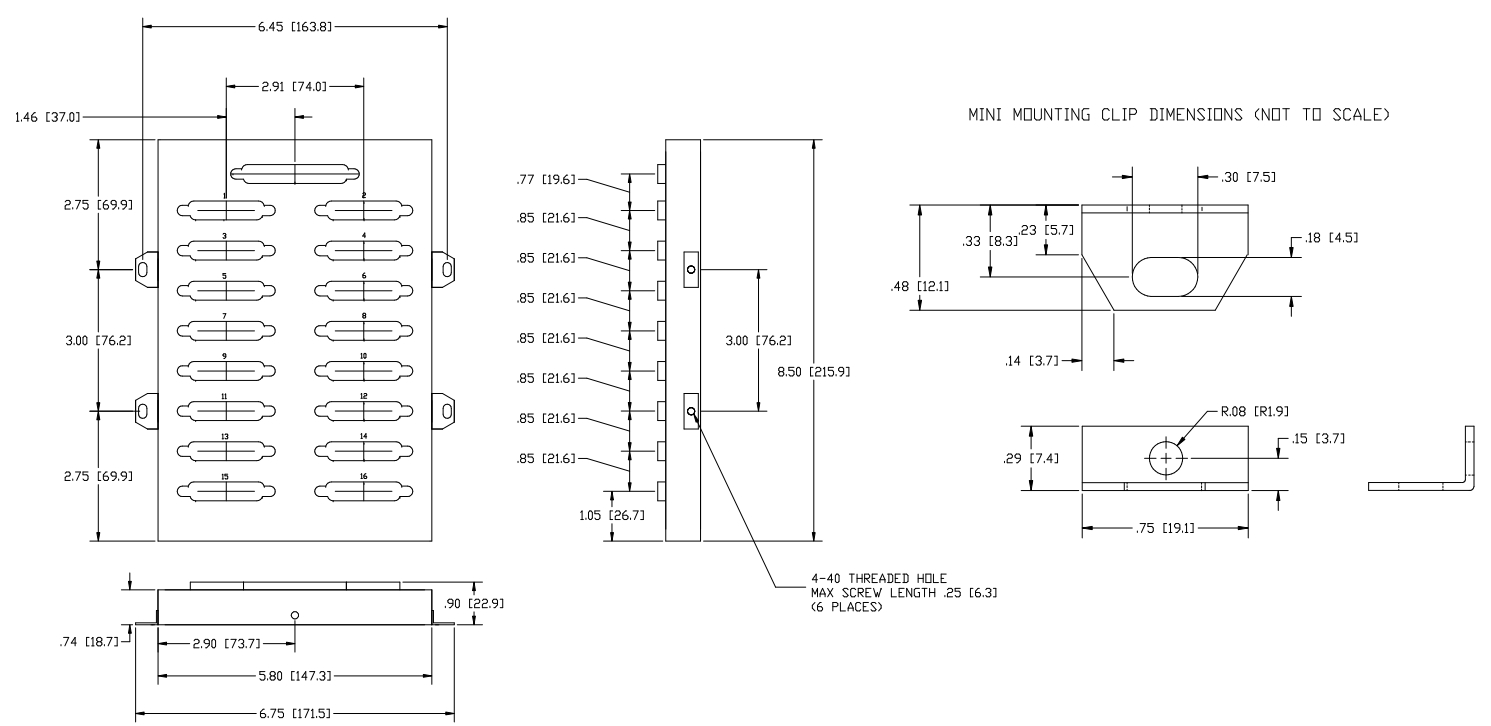

Dimensions:

For more information, please see Data Sheet
