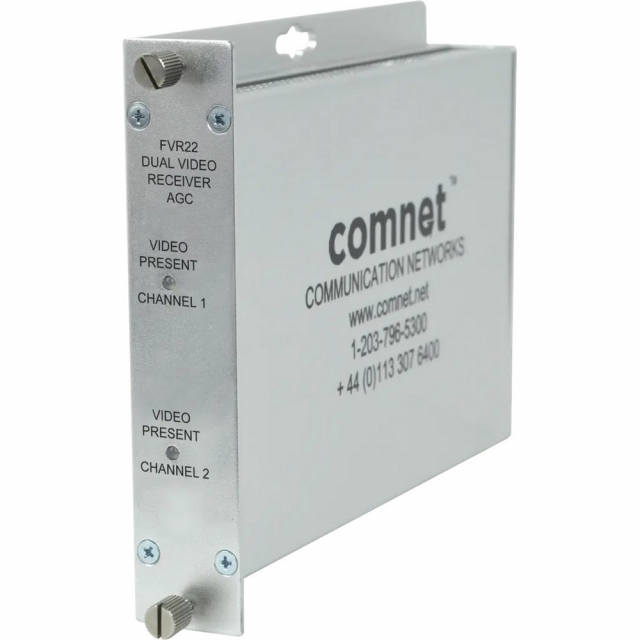

ComNet FVR22 Dual Independent AM Video Receiver

Comnet, FVR22, Dual Independent AM Video Receiver with Automatic Gain Control

Features:

• AM Video Receiver
• NTSC, PAL, SECAM compatible
• Full range Automatic Gain Control (AGC)
• Two independent receivers in one model
• Full color compatibility
• Can be used to double the fixed video capacity of a C1 card cage
• Plug-and-Play design for ease of installation
• No in-field electrical or optical adjustments required
• Designed to meet full compliance with the environmental requirements (ambient operating temperature, mechanical shock, vibration, humidity with condensation, high-line/low-line voltage conditions and transient voltage protection) of NEMA TS-1/TS-2 and the Caltrans Specification for Traffic Signal Control Equipment
• Voltage transient protection on all power and signal input/output lines provides protection from power surges and other voltage transient events
• Automatic resettable fuses on all power lines
• Bi-Color (Red/Green) indicator to monitor system performance
• Hot-swappable rack modules
• Interchangeable between stand-alone or rack mount use - ComFit
• Units may be DIN-Rail mounted by the addition of ComNet model DINBKT1 or DINBKT4 adaptor plate

Applications:

• CCTV (Fixed Video)

The ComNet FVR22 dual video receiver detects two independent AM video signals in one module on two independent multimode fiber optic cables. The module is not a multiplexer. The module is ideal for smaller CCTV installations and the rack mount version can be used to double the fixed video capacity of the C1 rack for up to 28 independent video channels per card cage. The modules utilize Automatic Gain Control (AGC). The receiver is compatible with the ComNet FVT11M and the FVT20 dual video transmitter. Plug-and-play design ensures ease of installation.
