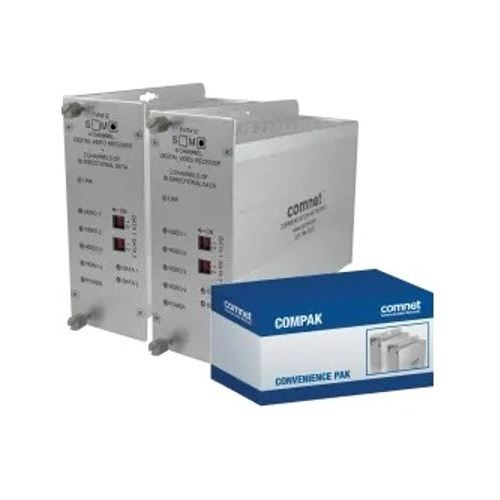

ComNet COMPAK412M1 Analog 4 Channel Video 2 Channel Data Multimode

Comnet, COMPAK412M1, Analog 4 Channel Video 2 Channel Data Multimode 1 Fiber

COMPAK412M1 Includes Only:

• 4-Channel Digitally-Encoded Video
• 2 Bi-Directional Data Channels Transmitter and Receiver

Features:

• Digitally-encoded video transmission: transmits 4 real-time color video signals and 2 bi-directional data signals on one optical fiber
• Supports RS232, RS422, and 2- or 4-wire RS485
• Compatible with all NTSC, PAL, or SECAM CCTV camera systems
• Designed to meet full compliance with the environmental requirements (ambient operating temperature, mechanical shock, vibration, humidity with condensation, high-line/low-line voltage conditions and transient voltage protection) of NEMA TS-1/TS-2 and the Caltrans Specification for Traffic Signal Control Equipment.
• Voltage transient protection on all power and signal input/output lines provides protection from power surges and other voltage transient events.
• Robust design ensures extremely high reliability in unconditioned out-of-plant environments
• Bi-color (Red/Green) LED status indicators provide rapid indication of critical operating parameters
• Hot-swappable rack modules
• Interchangeable between stand-alone or rack mount use - ComFit
• May be DIN-rail mounted with the ComNet model DINBKT4 adaptor (sold separately)

The ComNet FVT412M1 and FVR412M1 transmit four channels of video utilizing state of the art digital encoding and decoding for high-quality video transmission, along with two channels of bi-directional data over one multimode optical fiber. This equipment is environmentally hardened and suitable for use in unconditioned roadside or out-of plant installations. The FVT/FVR412 is compatible with NTSC, PAL and SECAM video transmission protocols and supports bi-directional RS232, RS422 and RS485 (2 & 4 Wire) data. Plug-and-play design ensures ease of installation and no electrical or optical adjustments are required.
