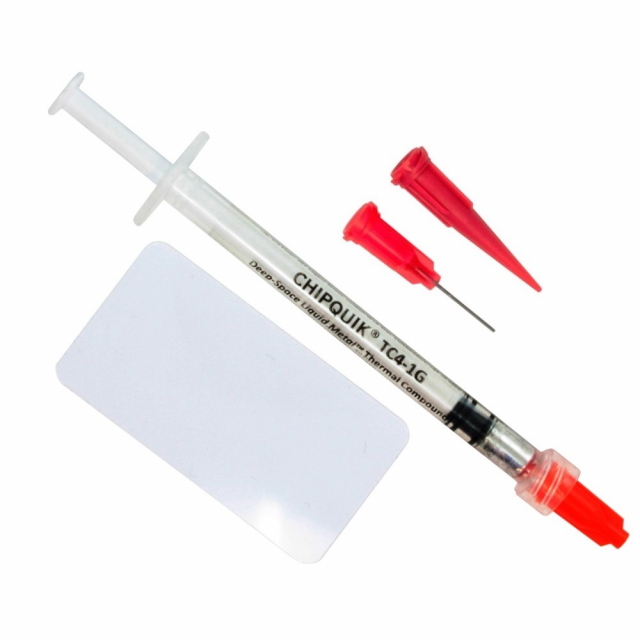

Chip Quik TC4-1G Heat Sink Thermal Compound / Grease, 1g/1cc Syringe

Packaging: 1g/1cc Syringe
  • Brand Chip Quik
  • Part # TC4-1G
  • Condition
    Brand New
Buy in Bulk 4 Applicable Promotion(s)
Show All

  • Buy 200 pcs, get 7% off

    Save 7% each on Chip Quik TC4-1G Heat Sink Thermal Compound / Grease, 1g/1cc Syringe when you purchase 200 or more

  • Buy 100 pcs, get 5% off

    Save 5% each on Chip Quik TC4-1G Heat Sink Thermal Compound / Grease, 1g/1cc Syringe when you purchase 100 or more

  • Buy 50 pcs, get 3% off

    Save 3% each on Chip Quik TC4-1G Heat Sink Thermal Compound / Grease, 1g/1cc Syringe when you purchase 50 or more

  • Buy 25 pcs, get 1% off

    Save 1% each on Chip Quik TC4-1G Heat Sink Thermal Compound / Grease, 1g/1cc Syringe when you purchase 25 or more

Availability
4-6 Weeks Factory Lead Time
Check Availability
Quantity
Share:

Options and Related Products

Packaging:
Packaging: 1g/1cc Syringe

Chip Quik, TC4-1G, Heat Sink Thermal Compound / Grease, Deep-Space Liquid Metal 79 W/mK, 1g/1cc Syringe

Features:

  • Lead-Free
  • RoHS 3 Compliant
  • REACH Compliant

CHIPQUIK® Deep-Space Liquid Metal™ Thermal Compound. Liquid Metal, non-curing, flowable, thermally conductive heat sink compound. Pure Liquid Metal. Provides extremely high thermal conductivity of 79 W/mK, low bleed and high temperature stability. Electrically Conducting. Alloy contains Gallium and is not compatible with Aluminum Heat Sinks.

Application Instructions

Apply sparingly with provided tips. Thinly spread using provided squeegee. Deep-Space Liquid Metal™ is highly conductive and is designed to fill all small cracks and crevices in surfaces to achieve extremely high thermal conductivity. Deep-Space Liquid Metal™ is thermally and electrically conductive, avoid getting it on electrical pins/pads/traces/BGA balls.

Transportation

This product has no shipping restrictions. Shipping below 0C (32F) or above 25C (77F) for normal transit times by ground or air will not impact this product's stated shelf life.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Distributor
Manufacturer Warranty

Technical Details

Reviews
Alloy100% Deep-Space Liquid Metal™ Pure Metal Proprietary Formula
Heat Sink Material CompatibilityNickel-Plated Copper, Nickel, Copper*
Heat Sink Material IncompatibilityAluminum (Do Not Use with Aluminum Heat Sinks). TC4 alloy contains gallium, which is corrosive to aluminum, it makes it brittle and corrodes the surface, restricting heat flow.
Density6.8g/cc
Melting Range10-11C. From -40C to 10-11C, TC4 is a solid malleable thermal interface material (TIM). Above 10-11C to 150C, it is a liquid TIM.
Viscosity2 mPa.s (Malcom at 10 RPM/20C)
Thermal Conductivity79 W/mK
Thermal Resistance0.003 C cm2/W
Electrical Conductivity6.10 x 10^6 S/m (at 20C)
Electrical Resistance1.64 x 10^-7 ohm*m (at 20C)
Coefficient of Thermal Expansion (CTE)19 x 10^-6 / C (at 20C)
Operating Temperature (Continuous)-40 to 150C (-40 to 302F)
Operating Temperature (Peak)200C (392F)
Operating Life>8 years *dependent on several factors, test in application to ensure suitability
Size1g/1cc Manual Syringe w/ 2x 25-gauge tips, squeegee
Storage and HandlingStore at room temperature 20-25C (68-77F)
Shelf Life>60 months
Product Details
Alloy100% Deep-Space Liquid Metal™ Pure Metal Proprietary Formula
Heat Sink Material CompatibilityNickel-Plated Copper, Nickel, Copper*
Heat Sink Material IncompatibilityAluminum (Do Not Use with Aluminum Heat Sinks). TC4 alloy contains gallium, which is corrosive to aluminum, it makes it brittle and corrodes the surface, restricting heat flow.
Density6.8g/cc
Melting Range10-11C. From -40C to 10-11C, TC4 is a solid malleable thermal interface material (TIM). Above 10-11C to 150C, it is a liquid TIM.
Viscosity2 mPa.s (Malcom at 10 RPM/20C)
Thermal Conductivity79 W/mK
Thermal Resistance0.003 C cm2/W
Electrical Conductivity6.10 x 10^6 S/m (at 20C)
Electrical Resistance1.64 x 10^-7 ohm*m (at 20C)
Coefficient of Thermal Expansion (CTE)19 x 10^-6 / C (at 20C)
Operating Temperature (Continuous)-40 to 150C (-40 to 302F)
Operating Temperature (Peak)200C (392F)
Operating Life>8 years *dependent on several factors, test in application to ensure suitability
Size1g/1cc Manual Syringe w/ 2x 25-gauge tips, squeegee
Storage and HandlingStore at room temperature 20-25C (68-77F)
Shelf Life>60 months
Note

Note: Please read description carefully. Do not base your order on the picture presented.
