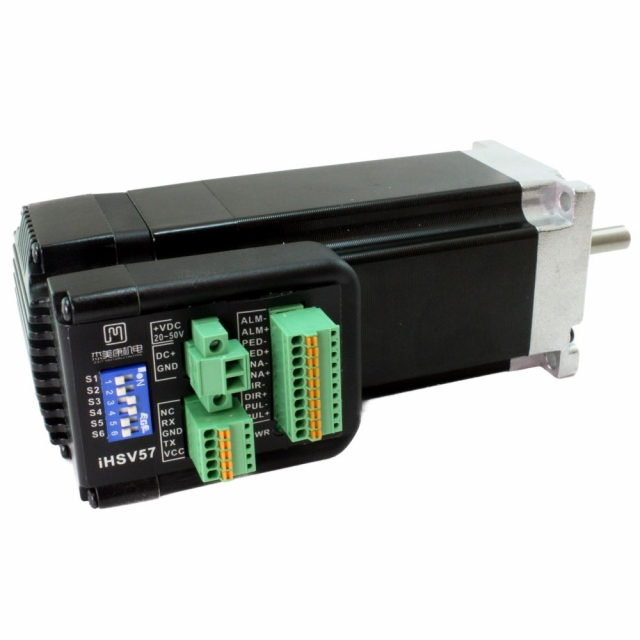

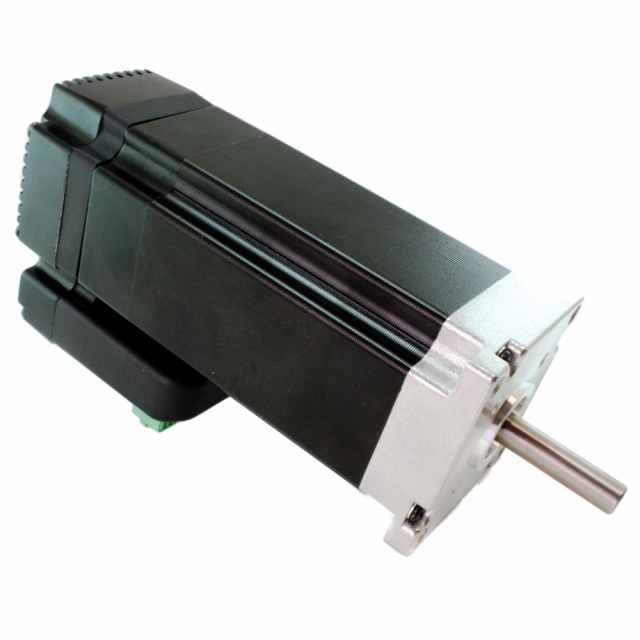

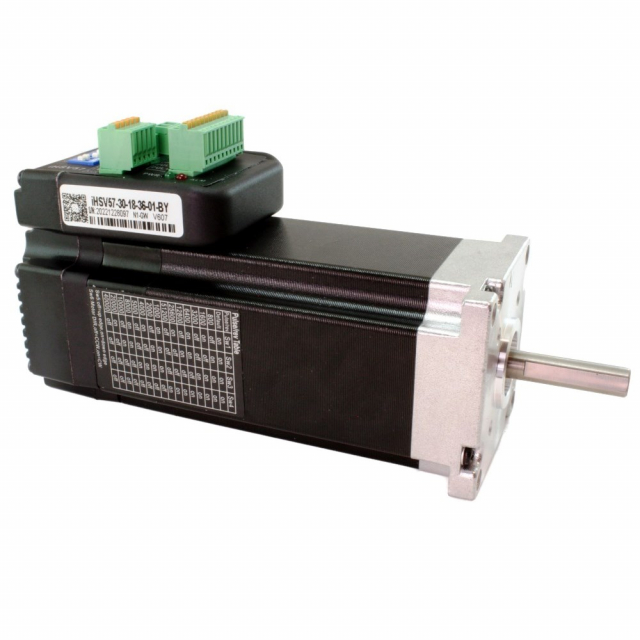

Chip Quik, CQ-iHSV57-30-18-36-01-BY, 36VDC 180W Integrated Servo Drive Motor
Features:
- Multiple pulse input modes Pulse + Direction
- Optically coupled isolation servo reset input interface ERC
- Current loop bandwidth:(-3 dB) 2 KHz(typical value)
- Speed loop bandwidth: 500 Hz(typical value)
- Position loop bandwidth: 200 Hz(typical value)
- Motor end orthogonal encoder input interface: differential input(26LS32)
- Download parameters via PC or text display with RS232C interface
- Users can choose to subdivide through external dialing switches, or they can use software
- Overflow, I2T, Overpressure, Speeding, Ultra-Poor Protection
- A green light indicates operation, a red light indicates protection or offline
IHSV42/57/60 / 86-XX Integrated AC servo drive motor integrates AC servo drive into servomotor. The two are perfectly integrated and use vector control designed and produced by DSP. Ithas the characteristics of low cost, full closed-loop, full number, low heat, small vibration andfast response. Includes three adjustable feedback loop controls(position loop, speed loop, andcurrent loop). Performance stability, is a very high cost performance of sports control products.
