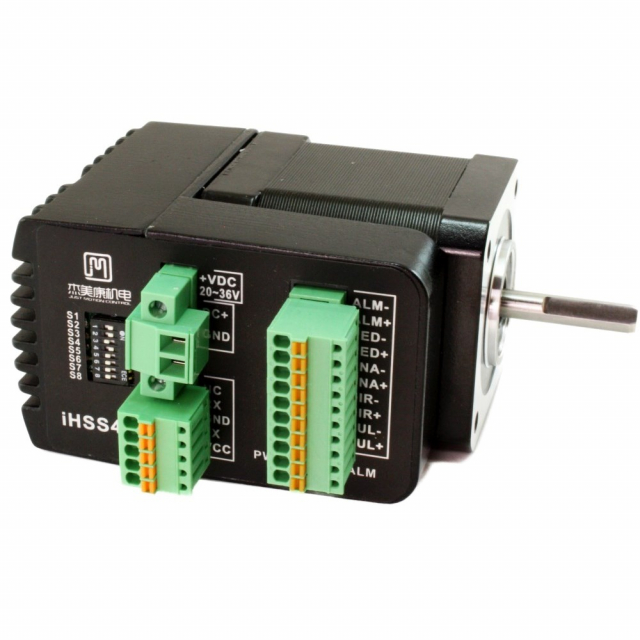

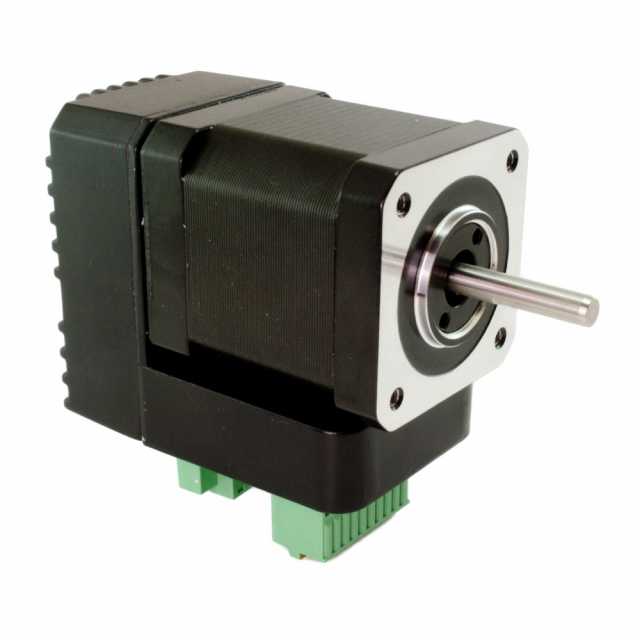

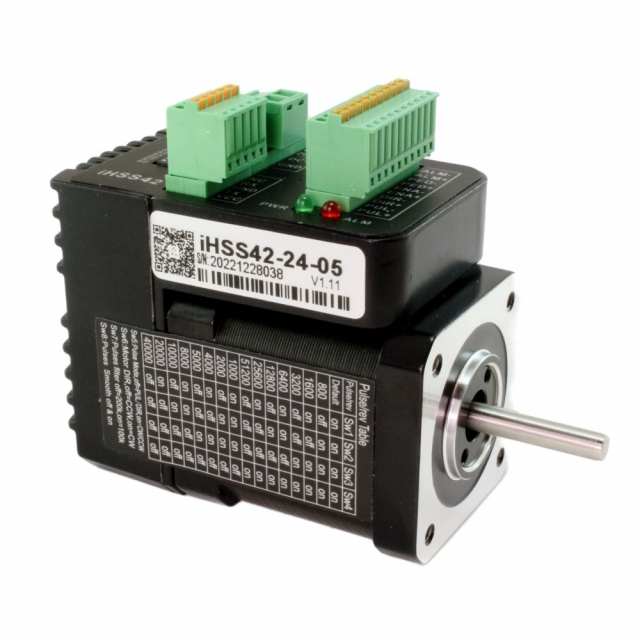

Chip Quik CQ-iHSS42-24-05 24VDC Integrated Step-Servo Drive Motor

Chip Quik, CQ-iHSS42-24-05, 24VDC 0.5Nm Integrated Step-Servo Drive Motor

Features:

• Integrated compact size for saving mounting space
• Without losing step, High accuracy in positioning
• 100% rated output torque
• Variable current control technology, High current efficiency
• Small vibration, Smooth and reliable moving at lowspeed
• Accelerate and decelerate control inside, Great improvement insmoothness of starting or stopping the motor
• User-defined micro steps
• No adjustment in general applications
• Over current, over voltage and over position error protection
• Green light means running while red light means protection or offline

The iHSS60-XX Integrate Stepper Servo Motor is mergedthe stepper servo driver and motor together. This motor systemintegrates the servo control technology into the digital stepperdrive perfectly. And this product adopts an optical encoder withhigh speed position sampling feedback of 50 μs, oncetheposition deviation appears, it will be fixed immediately. Thisproduct is compatible the advantages of the stepper driveandthe servo drive, such as lower heat, less vibration, fastacceleration, and so on.
