BZBGEAR BG-8K-88MA 8x8 Matrix 8K UHD HDMI2.1 Switcher

BZBGEAR, BG-8K-88MA, 8x8 Matrix 8K at 60Hz UHD HDMI2.1 48Gbps with Scaler, Audio De-Embedder

BG-8K-88MA Includes Only:

• 1x Main Unit (8x8 HDMI Matrix)
• 1x DC 12V/3A power adapter
• 1x Remote control
• 1x Wide-Band IR Receiver cables
• 1x CD for user manual and command list
• 1x 3 Pin Phoenix terminal plug

Features:

• 8x8 Routing: Features 8 x HDMI inputs which can be independently routed to 8 x HDMI outputs
• HDCP Compliant: HDMI 2.1a (48Gbps) HDCP 2.3 (and all earlier versions supported)
• 8K AND 4K at 120HZ: Up to 8K at 60Hz 4: 2: 0, 8K at 30Hz 4: 4: 4 and 4K at 120Hz 4: 4: 4 8K to 4K or 8K/4K to1080p
• Auto-scaling: Down Scaling on all outputs
• Control: Control via front panel, IR, RS-232, and TCP/IP (Web GUI)
• EDID Management: Seamless scaling for the best results
• HDR, HDR10, HDR10+, Dolby Vision pass-through VRR, ALLM, QMS, QFT, SBTM are supported
• Digital S/PDIF and Balanced audio output

With eight HDMI 2.1a inputs and eight HDMI 2.1a outputs, the BG-8K-88MA 8K HDMI matrix switch allows users to share up to eight HDMI sources with up to eight displays. Perfect for when you need to change multiple sources to show on various displays or even select just one source to show on all displays with the press of a button. Professional-grade picture and audio quality are achieved with support for 8K resolutions and various high-quality audio formats.

Play games at 4K at 120HZ!

For gamers, the ability to display high-resolution graphics at high frame rates is crucial for a smooth and immersive gaming experience. With support for 4K resolution at 120Hz, the BG-8K-88MA can help ensure that your games are displayed with the highest level of detail and fluidity. This is particularly important for fast-paced games where a high frame rate can make a significant difference in your ability to react to in-game events. Whether you're playing competitively or just looking for the most realistic and engaging gaming experience possible, the 8K HDMI 8x8 matrix switcher's support for 4K at 120Hz can help you get the most out of your favorite games.

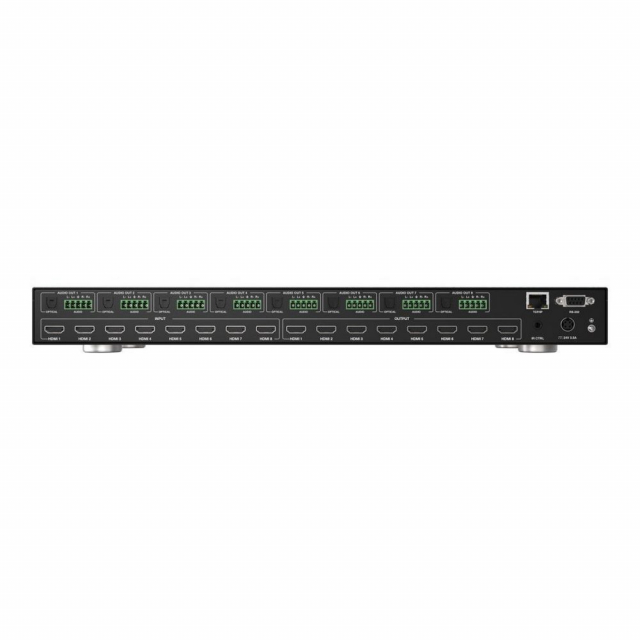

Interfaces:

1. HDMI IN: HDMI input 1~8.
2. Optical: Optical fiber audio output port.
3. AUDIO: 5-Pin phoenix stereo audio output.
4. HDMI OUT: HDMI output 1~8.
5. TCP/IP: LAN port.
6. RS-232: RS232 Port.
7. IR: 3.5mm IR extension jack.
8. Power: DC 24V/3.5A Power input port.

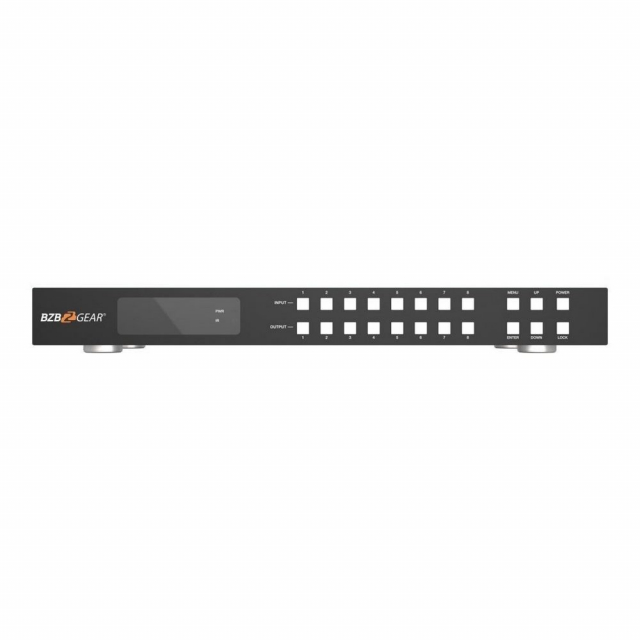

9. LED: Display screen.
10. Input: Output buttons 1~8.
11. Output: Input buttons 1~8.
12. Menu Navigation Buttons: Menu, Enter, Up, Down, Power, Lock.
