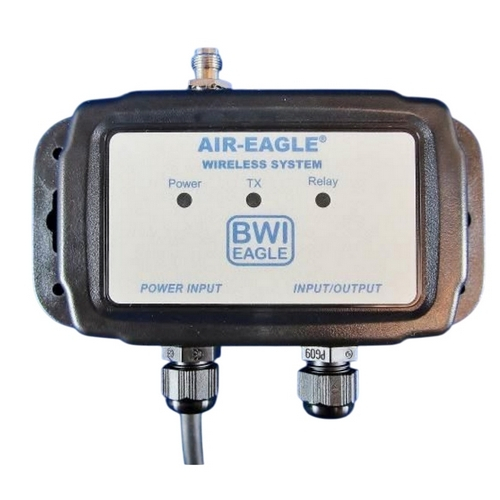

BWI Eagle 441-40100-AC Air-Eagle XLT 900 MHz RF Transceiver 2500 Ft
Brand NewChoose Type
Manufacturer warranty Description
The Air-Eagle XLT TRX is an R.F. transceiver capable of transmitting and receiving commands from up to 2500 feet away (longer rangescan be achieved with external high gain antennas). This model comes equipped with one dry contact input and one 5 amp relay outputs. When combined with another transceiver this allows the user to transmit information out and receive a confirming signal back that the operation was performed. This unit has seven user-selectable network frequencies to allow multiple systems to operate simultaneously in the same area without interference.
For more information, please see
Data Sheet
Technical details
- Weight Approx 2 lbs
- Enclosure Polycarbonate NEMA 4, 12, 13 – IP66
- Dimensions 7.07L x 3.57W x 1.62H
- Type Transceiver
- Operating Temperature -40°F to +185°F
- AC Input 100-250 VAC, 5W, 50/60 Hz
- RF Output Power 250 mW
- Relay Contact SPDT 5 amp at 120VAC or 30VDC per channel
- Fuse Protected 1 amp
- Receiver Frequency 900 MHz Spread Spectrum
- Receiver Range Up to 2500 Ft. with Standard Antenna
- RF Networks Eight Independent Frequencies
- Transmit Data Dry Contact Input
