Buy Blue-White RTS130ATLM1, F-2000 Flow Meter, RT 115V 3.0" SLIP TEE LPM

info@PrimeBuy.com

1-855-969-9322
1-908-282-3332 (Intl.)

Options and Related Products

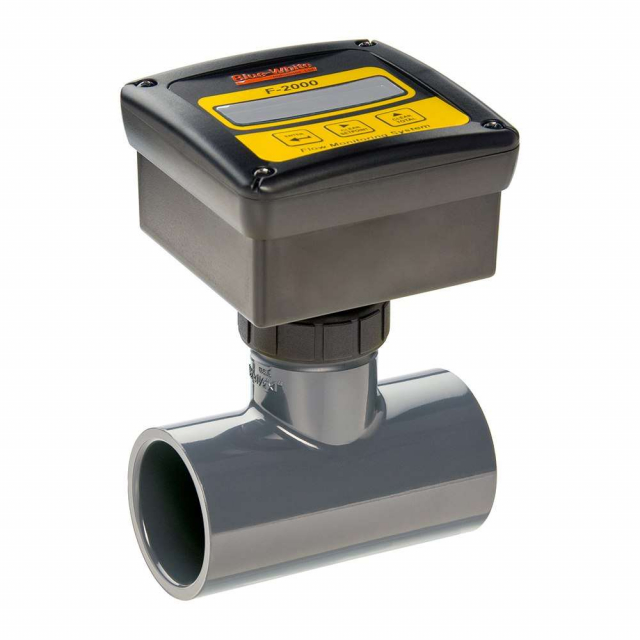

Blue-White, RTS130ATLM1, F-2000 Digital Paddlewheel Flow Meter, RT 115V 3.0" SLIP TEE LPM

Features:

Note: LCD is not recommended for direct sunlight applications.

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Variant	Flow Rate and Totalizing
Display Mounting	Meter Mounted on AC Coil Sensor
Power	U.S. Transformer, AC 115V60Hz/15Vdc, NEMA 5/15 plug
Pipe Sizes M/NPT	3" IPS
Inline Pipe Fitting Type	Inline injection molded tee pvc slip/socket, 1", 1-1/2", 2" Female slip glue/weld
Calibration Units	Liters per minute
Calibration Range	Range 1
Maximum Working Pressure	300 PSI (20 bar) at 70 °F (21 °C)
Maximum Fluid Temperature	200 °F (93 °C) at 0 PSI (PVDF saddles and PP Molded fittings) 140 °F (60 °C) at 0 PSI (PVC saddles and PVC Tee fittings) NOTE: Temperature rating of F-2000 only. Actual pipe rating mary vary.
Maximum Ambient Temperature	14 °F to 110 °F/ -10 °C to 43 °C
Maximum Pressure Drop	up to 8 PSI (varies per model)
Full Scale Accuracy	+/- 1%
Power Requirement	15 VDC Nominal (15 - 24 VDC Absolute
Signal Distance	AC sine wave sensor = 200 ft(60 m)
Signal Cable	3 conductor shielded. Included 25 ft(7.6 m)
Enclosure	NEMA 4X (IP56)
RoHS Compliant	Yes

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Variant	Flow Rate and Totalizing
Display Mounting	Meter Mounted on AC Coil Sensor
Power	U.S. Transformer, AC 115V60Hz/15Vdc, NEMA 5/15 plug
Pipe Sizes M/NPT	3" IPS
Inline Pipe Fitting Type	Inline injection molded tee pvc slip/socket, 1", 1-1/2", 2" Female slip glue/weld
Calibration Units	Liters per minute
Calibration Range	Range 1
Maximum Working Pressure	300 PSI (20 bar) at 70 °F (21 °C)
Maximum Fluid Temperature	200 °F (93 °C) at 0 PSI (PVDF saddles and PP Molded fittings) 140 °F (60 °C) at 0 PSI (PVC saddles and PVC Tee fittings) NOTE: Temperature rating of F-2000 only. Actual pipe rating mary vary.
Maximum Ambient Temperature	14 °F to 110 °F/ -10 °C to 43 °C
Maximum Pressure Drop	up to 8 PSI (varies per model)
Full Scale Accuracy	+/- 1%
Power Requirement	15 VDC Nominal (15 - 24 VDC Absolute
Signal Distance	AC sine wave sensor = 200 ft(60 m)
Signal Cable	3 conductor shielded. Included 25 ft(7.6 m)
Enclosure	NEMA 4X (IP56)
RoHS Compliant	Yes

Note: Please read description carefully. Do not base your order on the picture presented.
