Blue-White RT-200MI-LPM3 F-1000-RT Flow Meter, 40-400 LPM 2.0 MPT

  • Brand Blue-White
  • Part # RT-200MI-LPM3
  • Model # F-1000
  • Condition
    Brand New
Availability
Typically In Stock
Check Availability
Quantity
Share:

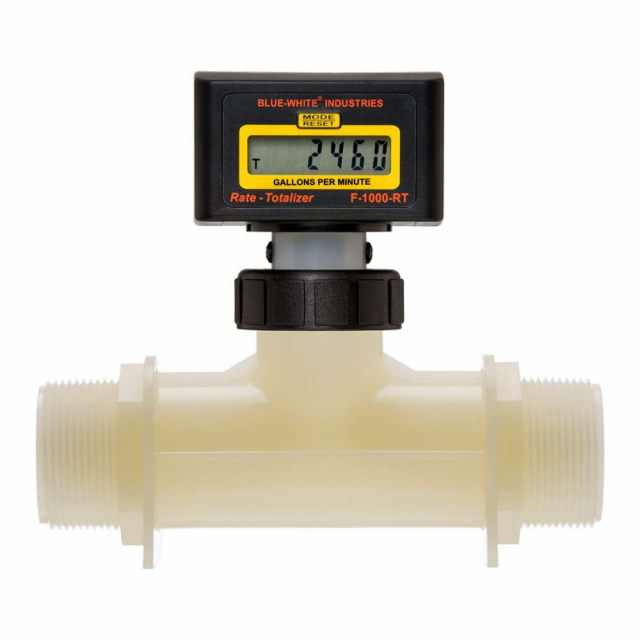

Blue-White, RT-200MI-LPM3, F-1000-RT Digital Paddlewheel Flow Meter, 40-400 LPM 2.0 MPT

Features:

  • Easy to read 6 digit LCD, up to 4 decimal positions
  • Battery Operated (2 AAA batteries included)
  • Acceptable for Vertical or Horizontal installation
  • Total Reset function can be disabled
  • Display update time: Rate 1.5 sec., Total 0.5 sec.
  • Factory calibrated - Nothing to program
  • NEMA 4X weather resistant enclosure
  • LCD not recommended for direct sunlight exposure
  • Standard Models ship with pipe fitting included.
See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Reseller
Manufacturer Warranty

Technical Details

Reviews
VariationRate Only
Pipe Sizes M/NPT3/8" IPS
Pipe Fitting TypeINLINE INJECTION MOLDED PP AMERICAN M/NPT
Calibration UnitsLiters per minute
Calibration RangeRange 3
Maximum Working Pressure300 PSI (20.7 bar) at 70 °F (21 °C)
Maximum Fluid Temperature200 °F (93.3 °C) at 0 PSI (Polypropylene Tees and PVDF saddles)
140 °F (60 °C) at 0 PSI (all PVC saddles and PVC Tee fittings)
NOTE: Temperature rating of F-1000 only. Actual pipe rating may vary
Maximum Ambient Temperature14 °F to 110 °F/ -10 °C to 43 °C
Maximum Pressure Dropup to 8 PSI (polypropylene tees) no pressure drop on saddle models
Full scale Accuracy+/- 2%
Power Requirement2 AAA batteries (included)
Approximate Shipping Weight2 lb. (.91 kg)
EnclosureNEMA 4X (IP56)
RoHS CompliantYes
Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details
VariationRate Only
Pipe Sizes M/NPT3/8" IPS
Pipe Fitting TypeINLINE INJECTION MOLDED PP AMERICAN M/NPT
Calibration UnitsLiters per minute
Calibration RangeRange 3
Maximum Working Pressure300 PSI (20.7 bar) at 70 °F (21 °C)
Maximum Fluid Temperature200 °F (93.3 °C) at 0 PSI (Polypropylene Tees and PVDF saddles)
140 °F (60 °C) at 0 PSI (all PVC saddles and PVC Tee fittings)
NOTE: Temperature rating of F-1000 only. Actual pipe rating may vary
Maximum Ambient Temperature14 °F to 110 °F/ -10 °C to 43 °C
Maximum Pressure Dropup to 8 PSI (polypropylene tees) no pressure drop on saddle models
Full scale Accuracy+/- 2%
Power Requirement2 AAA batteries (included)
Approximate Shipping Weight2 lb. (.91 kg)
EnclosureNEMA 4X (IP56)
RoHS CompliantYes
Note

Note: Please read description carefully. Do not base your order on the picture presented.
