Version:: Version: Battery Power

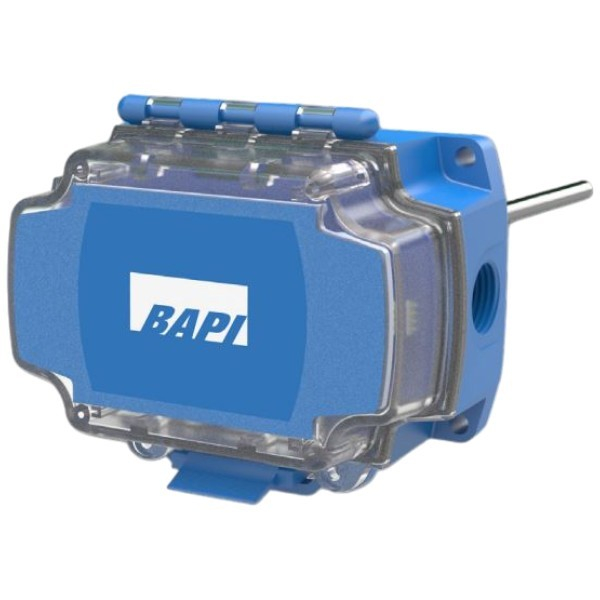

BAPI, BA/WT-BLE-D-4-BB-BAT, Wireless Duct Temperature Sensor, 4" (102mm) Probe Length, Battery Power

Features:

Rugged IP66/NEMA 4 enclosure
User-adjustable settings to maximize battery life while ensuring the BMS gets the info it needs
Transmits to a receiver and output modules with multiple integration methods into the BMS

BAPI's Duct Wireless Sensor measures the temperature and transmits the data via Bluetooth Low Energy to a receiver and output modules with multiple integration methods into the BMS. This unit features a rugged IP66-rated BAPI-Box enclosure and 1/4" (6.4mm) stainless steel probe.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Battery Power	Two included 3.6V 14505, 14500 or equivalent lithium batteries
Temperature Sensor Accuracy	±1.0°F (0.55°C) from 32 to 158°F (0 to 70°C)
Temperature Range	-4 to 221°F (-20 to 105°C)
Environmental Operation Range
Temp	-4 to 149°F (-20 to 65°C)
Humidity	10 to 90%RH, non-condensing
Enclosure Rating, Material & Material Rating	IP66, UV-Resistant Polycarbonate, UL94 V-0
Frequency	2.4 GHz (Bluetooth Low Energy)
Receiver Sensitivity	-97 dBm
User Adjustable Settings
Delta T (Temp)	0.1°F/C to 5.0°F/C
Transmit Interval	1 min to 30 min
Sample Interval	30 sec to 5 min
Agency	RoHS \| Contains FCC ID: QOQGM210P \| IC: 5123A-G

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Battery Power	Two included 3.6V 14505, 14500 or equivalent lithium batteries
Temperature Sensor Accuracy	±1.0°F (0.55°C) from 32 to 158°F (0 to 70°C)
Temperature Range	-4 to 221°F (-20 to 105°C)
Environmental Operation Range
Temp	-4 to 149°F (-20 to 65°C)
Humidity	10 to 90%RH, non-condensing
Enclosure Rating, Material & Material Rating	IP66, UV-Resistant Polycarbonate, UL94 V-0
Frequency	2.4 GHz (Bluetooth Low Energy)
Receiver Sensitivity	-97 dBm
User Adjustable Settings
Delta T (Temp)	0.1°F/C to 5.0°F/C
Transmit Interval	1 min to 30 min
Sample Interval	30 sec to 5 min
Agency	RoHS \| Contains FCC ID: QOQGM210P \| IC: 5123A-G
