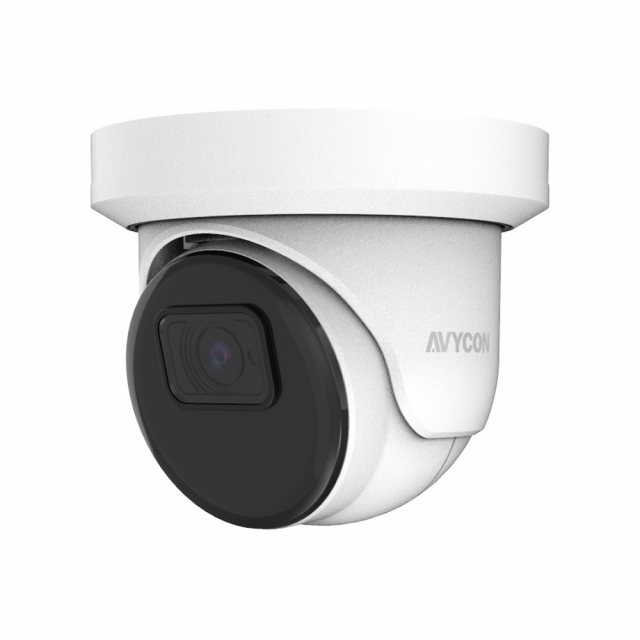

Avycon AVC-NSE21F28 2MP H.265 Fixed Eyeball Network Camera with FD

Part #:

AVC-NSE21F28

Condition:

Brand New

Choose Type

Lens Pir Type Camera Square Board Camera 2MP 25X FIXED Motorized Manual 32MP 32MP Color 360deg Network Unmanaged Gigabit Network 64 Channels 4 Channels without HDD 8 Channels without HDD 64 Channels 10TB 4 Channels 10TB 256 Channels 10TB 8 Channels 10TB 16 Channels 10TB 8 Channels 12TB 64 Channels 12TB 256 Channels 12TB 4 Channels 12TB 16 Channels 12TB 16 Channels 16TB 64 Channels 16TB 64 Channels 1TB 4 Channels 1TB 8 Channels 1TB 16 Channels 1TB 16 Channels without HDD 64 Channels 20TB 16 Channels 20TB 64 Channels 24TB 16 Channels 24TB 16 Channels 2TB 64 Channels 2TB 4 Channels 2TB 8 Channels 2TB 8 Channels 3TB 64 Channels 3TB 4 Channels 3TB 16 Channels 3TB 4 Channels 4TB 8 Channels 4TB 16 Channels 4TB 64 Channels 4TB 256 Channels 4TB 64 Channels 6TB 256 Channels 6TB 16 Channels 6TB 4 Channels 6TB 8 Channels 6TB 64 Channels 8TB 256 Channels 8TB 16 Channels 8TB 4 Channels 8TB 8 Channels 8TB 256 Channels Barebone 4MP 40X 4MP 4X Motorized Autofocus Lens Fixed lens 5.4" Touch Screen 5MP 33X 5MP Fixed Eyeball 5MP Fixed Indoor Dome 5MP Fixed Lens Bullet 5MP Fixed Vandal Dome 5MP Motorized Eyeball 5MP Motorized Lens Bullet 5MP Motorized Lens Indoor Dome 5MP Motorized Vandal Dome 7" Touch Screen 8MP 32X 8MP 4X 8MP Fixed Eyeball 8MP Fixed Indoor Dome 8MP Fixed Lens Bullet 8MP Fixed Vandal Dome 8MP Motorized Eyeball 8MP Motorized Lens Bullet 8MP Motorized Lens Indoor Dome 8MP Motorized Vandal Dome 1024 Channels 2048 Channels Floor Standing In-Ceiling Mount 32 Channels 10TB 32 Channels 12TB 32 Channels 16TB 32 Channels 1TB 32 Channels 20TB 32 Channels 24TB 32 Channels 2TB 32 Channels 30TB 32 Channels 3TB 32 Channels without HDD 32 Channels 4TB 32 Channels 6TB 32 Channels 8TB Turnstile 1 BNC Female to 2 BNC Female 1 BNC Male to 2 BNC Female Individual 4-Channel 1 in 2 Out 1 IN 4 OUT 1 IN 8 OUT Female Male with Corner Mount Bracket with Pole Mount Bracket

Check availability

Manufacturer warranty

Description

Avycon, AVC-NSE21F28, 2MP H.265 Fixed Eyeball Network Camera with Face Detection

Features:

Max. Resolution: 1920 x 1080
Supports Smart H.265/H.264 Encoding
True Day & Night ICR
Up to 98 ft. IR Illumination
Fixed 2.8mm Lens
3D DNR, True WDR, HLC, BLC, and ROI Encoding
Supports Triple Streams
Supports Remote Access with Windows, macOS, iOS, and Android
IP67 Ingress Protection
Operating Temperature: -22°F - 131°F (-30°- 55°C)
DC12V / PoE (802.3af, ≤6W)
Built-in MIC
Built-in MicroSD Card Slot
Built-in Reset Button
NDAA Compliant

The Avycon AVC-NSE21F28 camera is a 2MP H.265 Fixed Eyeball Network Camera. This 2MP IP camera supports True Day and Night mode, PoE, and up to 98ft. of Smart IR Illumination. This camera includes a Fixed 2.8mm Lens. Also standard with this series are Digital NR, ROI, HLC, True WDR, and BLC capabilities.

Technology:

Dimensions:

Check availability

Technical details

Main features

Image Sensor 1/2.8" Progressive Scan CMOS
Field of View 87.4°
Lens Fixed 2.8mm
Dimensions 3.92" x 3.32" (100.5mm x 85.2mm)
Input Voltage DC 12V / PoE (802.3af)
Ethernet 1 x RJ45 10M / 100M(BASE-T)
Protocol HTTP, HTTPs, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP/IP, PPPoE, DHCP
Type FIXED
Power Consumption ≤6W
Resolution 2MP
Security IP Address Filter; Complicated Password; Authenticated Username and Password
Ingress protection IP67
White Balance Auto/Manual/Indoor
Motion Detection Off/On (8 Level)
Shutter Speed 1/20,000s ~ 1/5s
Gain Control Auto
Working Temperature -22°~131° F (-30°~55° C)
Image Size 1920 x 1080
Sharpness Yes
Video Compression H.265 / H.264
WDR 120dB
Min. Illumination Color: 0.05lux at F1.2(AGC ON) BW: 0lux w IR ON
Privacy Mask Off/On (4 Zone, Rectangle)
Supported Resolutions 1920 x 1080, 1280 x 720, 640 x 480, 320 x 240 at 30fps
IR Distance Up to 98ft. (30m)
Video Bit Rate 8 Kbps ~ 8 Mbps (CBR / VBR Adjustable)
Image Setting Yes
Max. Image Resolution 1920 x 1080
Slow Shutter Supported
ONVIF ONVIF (Profile S/G/T,20.06)
Language Support for English and Korean
On-board Storage Micro SD slot, up to 256GB
Main Stream 1920 x 1080, 1280 x 720
Day and Night IR cut filter with auto switch (Day/Night/Auto/Schedule)
Digital NR Yes (3D DNR)
Backlight Compensation (BLC) Off/On (5 Zone)
Max. Framerate 50Hz: 25fps at5MP/4MP/3MP/2MP/960P/720P/VGA/QVGA, 60Hz: 30fps at5MP/4MP/3MP/2MP/960P/720P/VGA/QVGA
Sub Stream 1280 x 720, 640 x 480, 320 x 240
Mobile Stream 640 x 480, 320 x 240
Angle Adjustment Any Angle
True WDR Yes
Flip / Mirror Flip/Corridor/Rotation
Supported Recorders Diversity Series
Alarm/Audio No / Built-in Microphone
Hardware Reset Yes
Smart Feature PID,LCD,PD/VD,FD
Smart Events Human Detection, Face Detection, Vehicle Detection
Alarm Link Events Motion detection
