Buy ASRock SBC-210N, Baytrail-I N2930 SoC Max8GB DDR3L 3.5 SBC Motherboard

info@PrimeBuy.com

1-855-969-9322
1-908-282-3332 (Intl.)

Options and Related Products

CPU:: CPU: Intel Baytrail / Baytrail-I SoC Processor N2930, QC, 1.83 GHz, 7.5 W

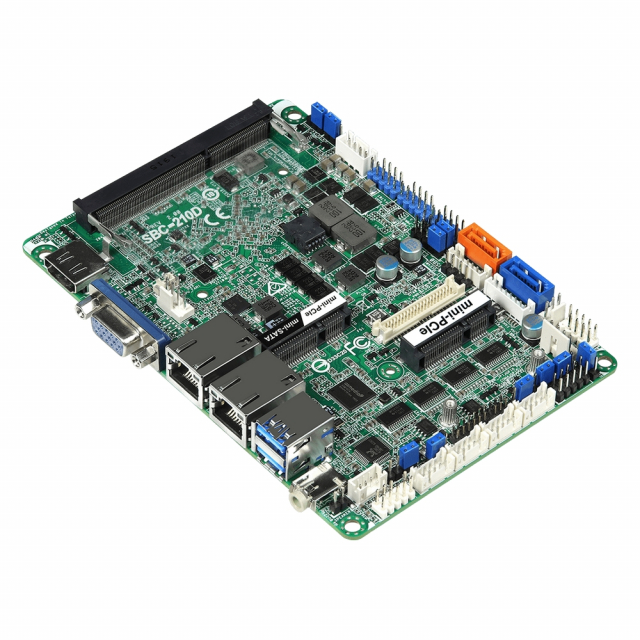

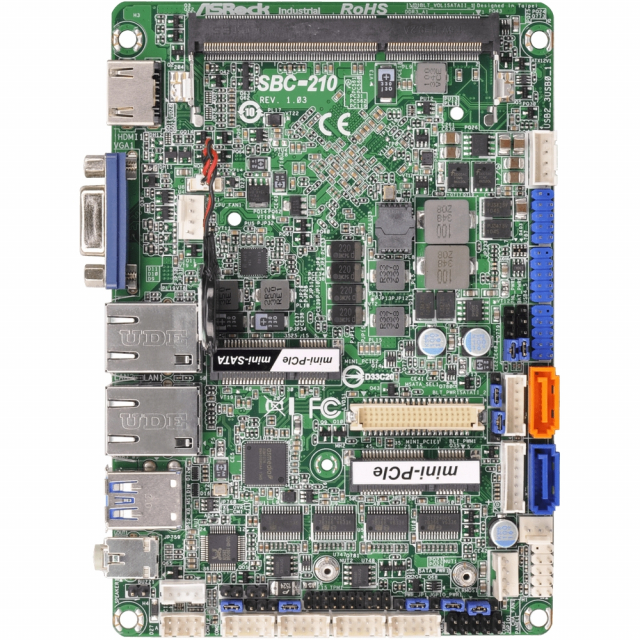

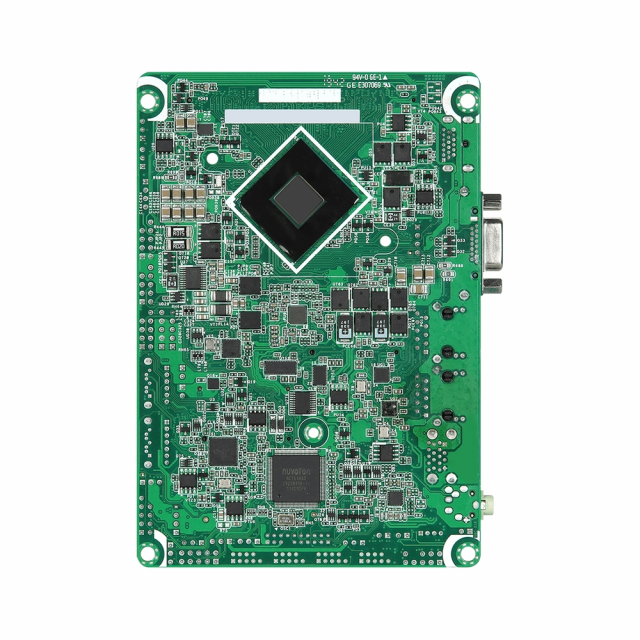

ASRock, SBC-210N, Baytrail-I N2930 SoC Max8GB DDR3L mini-PCIe mSATA 3.5 SBC Motherboard

Features:

Intel® Baytrail /Baytrail-I SoC Processor N2930
Supports Single Channel DDR3L SO-DIMM 1333, up to 8GB
4 x COM
1 x HDMI, 1 x D-Sub, 1 x LVDS
2 x USB 3.0, 6 x USB 2.0, 2 x SATA2
1 x mini-PCIe, 1x mSATA (shared)
2 x Realtek Lan
1 x TPM Header
9~36 V DC-in (4-pin DC-in PWR Con)

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Processor System

CPU

Intel® Baytrail / Baytrail-I SoC Processor N2930, QC, 1.83 GHz, 7.5 W

Chipset

SoC

Form Factor

Dimensions

3.5"SBC (5.8-in x 4.0-in, 14.7 cm x 10.2 cm)

Memory

Technology

Single Channel DDR3L 1333 MHz

Capacity

8GB

Socket

1 x SO-DIMM

Graphics

Controller

Intel® Gen7 Intel® Graphics DX 11, OGL3.2

HDMI

Supports max resolution up to 1920 x 1200

VGA

Supports max resolution up to 1920 x 1200

LVDS

Supports max resolution up to 1920 x 1200 at60Hz

MultiDisplay

Dual Display

Expansion Slot

mini-PCIe

1 x Half size with PCIe x1 and USB 2.0

mini-PCIe/mSATA

1 x Full size with PCIe x1, SATA2 and USB 2.0

Audio

Interface

Realtek ALC662/897 HD, High Definition Audio. Line-out

Ethernet

Controller/ Speed

10/100/1000 Mbps

Connector

2 x Realtek RTL8111G-CG/RTL8111H-CG

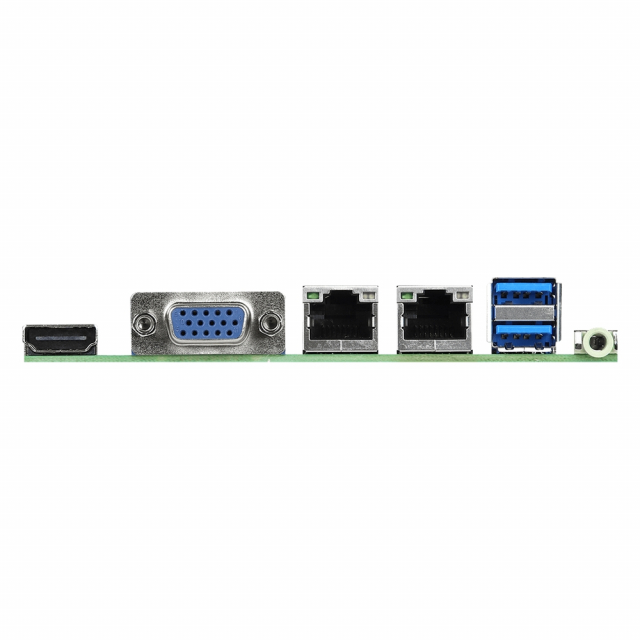

Rear I/O

HDMI

VGA

Ethernet

USB

2 x USB 3.0

Audio

1 (Line-out)

Internal Connector

USB

6 x USB 2.0

COM

3 x COM (RS-232), 1 x COM (RS-232/422/485)

GPIO

4 x GPI, 4 x GPO

TPM

1 x Header

LVDS

SATA PWR Output

Speaker Header

Storage

SATA

2 x SATA2 (3.0Gb/s)

Watchdog Timer

Output

From Super I/O to drag RESETCON#

Interval

256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR

9-36V DC-In (4-pin DC-in PWR Con)

Power On

AT/ATX Supported

AT: Directly PWR on as power input ready
ATX: Press button to PWR on after power input ready

Environment

Operating Temp

0°C ~ 60°C

Storage Temp

-40° C ~ 85° C

Operating Humidity

5% ~ 90%

Storage Humidity

5% ~ 90%

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Processor System

CPU

Intel® Baytrail / Baytrail-I SoC Processor N2930, QC, 1.83 GHz, 7.5 W

Chipset

SoC

Form Factor

Dimensions

3.5"SBC (5.8-in x 4.0-in, 14.7 cm x 10.2 cm)

Memory

Technology

Single Channel DDR3L 1333 MHz

Capacity

8GB

Socket

1 x SO-DIMM

Graphics

Controller

Intel® Gen7 Intel® Graphics DX 11, OGL3.2

HDMI

Supports max resolution up to 1920 x 1200

VGA

Supports max resolution up to 1920 x 1200

LVDS

Supports max resolution up to 1920 x 1200 at60Hz

MultiDisplay

Dual Display

Expansion Slot

mini-PCIe

1 x Half size with PCIe x1 and USB 2.0

mini-PCIe/mSATA

1 x Full size with PCIe x1, SATA2 and USB 2.0

Audio

Interface

Realtek ALC662/897 HD, High Definition Audio. Line-out

Ethernet

Controller/ Speed

10/100/1000 Mbps

Connector

2 x Realtek RTL8111G-CG/RTL8111H-CG

Rear I/O

HDMI

VGA

Ethernet

USB

2 x USB 3.0

Audio

1 (Line-out)

Internal Connector

USB

6 x USB 2.0

COM

3 x COM (RS-232), 1 x COM (RS-232/422/485)

GPIO

4 x GPI, 4 x GPO

TPM

1 x Header

LVDS

SATA PWR Output

Speaker Header

Storage

SATA

2 x SATA2 (3.0Gb/s)

Watchdog Timer

Output

From Super I/O to drag RESETCON#

Interval

256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR

9-36V DC-In (4-pin DC-in PWR Con)

Power On

AT/ATX Supported

AT: Directly PWR on as power input ready
ATX: Press button to PWR on after power input ready

Environment

Operating Temp

0°C ~ 60°C

Storage Temp

-40° C ~ 85° C

Operating Humidity

5% ~ 90%

Storage Humidity

5% ~ 90%

Note

Note: Please read description carefully. Do not base your order on the picture presented.
