| Physical Status |
| Form Factor | mini-ITX |
| Dimensions | 6.7" x 6.7" (170.18 mm x 170.18 mm) |
| Processor System |
| CPU | Supports IntelXeonE-2400 series and Intel®Pentium®Gold G7400/G7400T processors |
| Socket | Single Socket V1 (LGA 1700) |
| Chipset | Intel®C266 |
| System Memory |
| Supported DIMM Quantity | 2 DIMM slots (1DPC) |
| Supported Type | Supports DDR5 288-pin ECC UDIMM |
| Max. Capacity per DIMM | 32GB |
| Max. DIMM Frequency | 4800MT/s |
| Voltage | 1.1V |
| PCIe Expansion Slots (SLOT7 close to CPU) |
| PCIe x 16 | SLOT7: PCIe5.0 x16 [CPU] |
| TPM |
| TPM support | 1 (13-pin, SPI) |
| Other PCIe Expansion Connectors |
| M.2 slot | 1 M-key (PCIe4.0 x4); support 2280 form factor [CPU] |
| OCuLink | - 1 OCuLink (PCIe4.0 x4 or 4 SATA 6Gb/s) [PCH]
- 1 OCuLink (PCIe3.0 x4 or 4 SATA 6Gb/s) [PCH]
|
| SATA/SAS Storage |
| PCH Built-in Storage | Intel®C266 (8 SATA 6Gb/s; RAID 0/1/5/10): 2 OCuLink |
| Ethernet |
| Additional GbE Controller | 2 RJ45 (1GbE) by Intel®i210 |
| Server Management |
| BMC Controller | ASPEED AST2600: iKVM, vMedia support |
| IPMI Dedicated GLAN | 1 RJ45 Dedicated IPMI LAN port by Realtek RTL8211F |
| Graphics |
| Controller | ASPEED AST2600: 1 DB15 (VGA) |

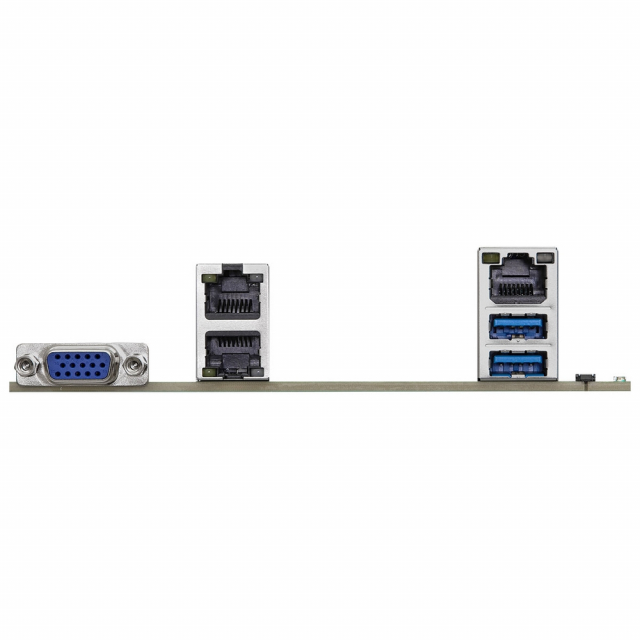

| Rear I/O |
| UID Button/LED | 1 UID button, 1 UID LED |
| VGA Port | 1 DB15 (VGA) |
| USB 3.2 Gen1 Port | 2 Type A (USB3.2 Gen1) |
| RJ45 | 2 RJ45(1GbE), 1 dedicated IPMI |
| Internal Connector/Headers |
| Power Connector | 1 Micro-Fit (4-pin, ATX PSU signal) w/ ATX 24-pin adapter cable, 1 (8-pin, ATX 12V) support 12V DC-in |
| Other Power Connectors | 1 ATX (4-pin) for HDD power when using 12V DC-in power source |
| Auxiliary Panel Header | 1 (9-pin): chassis intrusion, system fault LED, LAN activity LED |
| System Panel | 1 (9-pin): power switch, reset switch, system power LED, HDD activity LED |
| COM Header | 1(9-pin) |
| Fan Header | 3 (4-pin) |
| Thermal Sensor Header | 1 |
| TPM Header | 1 (13-pin, SPI) |
| SGPIO Header | 1 |
| SMBus header | 1 |
| PMBus header | 1 |
| IPMB Header | 1 |
| Clear CMOS | 1 (contact pads) |
| Others | 1 NCSI header (9-pin) |
| USB 3.2 (Gen1) Header | 1 header (19-pin, 2 USB3.2 Gen1) |
| LED Indicators |
| Standby PWR LED | 1 (5VSB) |
| Fan Fail LED | 3 |
| BMC heartbeat LED | 1 |
| System BIOS |
| BIOS Type | AMI 256Mb SPI Flash ROM |
| BIOS Features | Plug and Play, ACPI 6.4 and above compliance wake up events, SMBIOS 2.8 and above, ASRock Rack Instant Flash |
| Hardware Monitor |
| Temperature | CPU, MB, Card side, M.2, TR1 Temperature sensing |
| Fan | - Fan Tachometer
- CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
- Fan Multi-Speed Control
|
| Voltage | 3VSB, 5VSB, CPU_VCORE, VCCIN_AUX,VDD2, 1.05V_PCH, 0V82SB_PCH, 1V8SB, BAT, 3V, 5V, 12V, 1.05V_PROC, 1.8V_PROC |
| Environment |
| Temperature | Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C |
| Humidity | Non operation humidity: 20% ~ 90% ( Non condensing) |
