Buy AOpen DE6200-34BTI, FO DE6200 Media Player RX-421BD 2GBX2 DDR4 64GB

info@PrimeBuy.com

1-855-969-9322
1-908-282-3332 (Intl.)

Options and Related Products

Memory:: Memory: 2GB

AOpen, DE6200-34BTI, FO DE6200 Media Player RX-421BD CPU, 2GBX2 DDR4, 64GB M.2 SSD, Windows 10 IOT, AICU

Features:

AMD R-Series Merlin Falcon processor for performance and security
AMD Radeon 3rd-gen GCN for high quality visual graphics and visuals
Supports up to 3 HDMI displays
Entry-level 4K to one display
Remote device management and recovery
Windows and Linux OS

AOPEN DE6200 is an entry-level commercial-grade 4K Digital Engine. It supports up to 3 displays, or one 4K display. Designed to resist dust and grease, the DE6200 is ideal for stores and QSR applica-tions, including menu boards, digital ads, and order-processing displays.

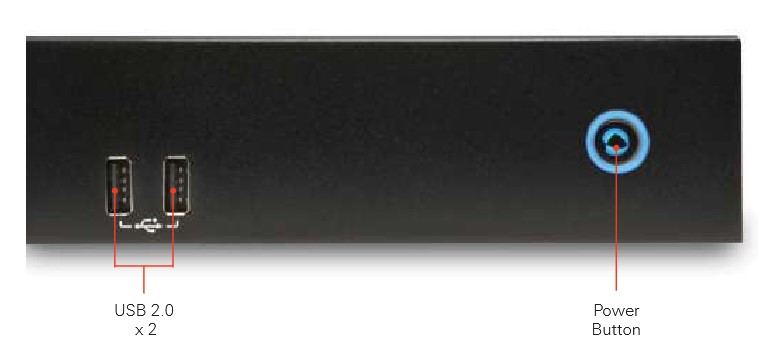

Front Panel DE6200

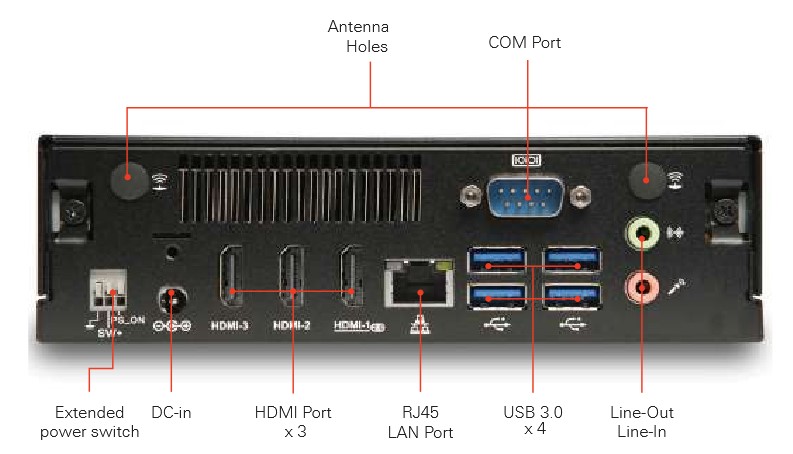

Rear Panel DE6200

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Dimensions (W x H x D)

166 x 48 x 157 mm
6.54 x 1.89 x 6.18 inch

Chassis Color

Black

Housing Material

SECC

Weight

2.0 kg / 4.4 lb

CPU/Chipset

MD Embedded R-series
Merlin Falcon, RX-421BD
2.1-3.4 GHz Quad Core

Memory

Channels: Dual Channel
DDR4 SO-DIMM x 2, 1600 Mbps
Memory: 2GB x 2

Graphics

AMD Radeon R5 series HD graphics

Expansion Slot

M.2 2242 x 2,
M.2 2230 x 1 (for wifi)

Audio

Realtek HD Audio ALC269Q
Channel: Stereo

LAN

Realtek Gigabit Ethernet
RTL8111H x 1
10/100/1000 Mbps

Storage

M.2 2242 x 2
2.5" SATA x 1

Front Panel IO

USB 2.0 Port x 2

Rear Panel IO

DC Jack x 1
HDMI Port x 3
USB 3.0 Port x 4
RJ45 LAN Jack x 1
Legacy RS232 Serial Port x 1
Line-Out x 1
Mic-in x 1
Antenna Holes x 2
Others: Extended Power SW x 1

Adapter

19V/90W AC adapter

WatchDog Timer

1 ~255 sec/min

Input Voltage

AC 100 ~ 240V

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Dimensions (W x H x D)

166 x 48 x 157 mm
6.54 x 1.89 x 6.18 inch

Chassis Color

Black

Housing Material

SECC

Weight

2.0 kg / 4.4 lb

CPU/Chipset

MD Embedded R-series
Merlin Falcon, RX-421BD
2.1-3.4 GHz Quad Core

Memory

Channels: Dual Channel
DDR4 SO-DIMM x 2, 1600 Mbps
Memory: 2GB x 2

Graphics

AMD Radeon R5 series HD graphics

Expansion Slot

M.2 2242 x 2,
M.2 2230 x 1 (for wifi)

Audio

Realtek HD Audio ALC269Q
Channel: Stereo

LAN

Realtek Gigabit Ethernet
RTL8111H x 1
10/100/1000 Mbps

Storage

M.2 2242 x 2
2.5" SATA x 1

Front Panel IO

USB 2.0 Port x 2

Rear Panel IO

DC Jack x 1
HDMI Port x 3
USB 3.0 Port x 4
RJ45 LAN Jack x 1
Legacy RS232 Serial Port x 1
Line-Out x 1
Mic-in x 1
Antenna Holes x 2
Others: Extended Power SW x 1

Adapter

19V/90W AC adapter

WatchDog Timer

1 ~255 sec/min

Input Voltage

AC 100 ~ 240V

Note

Note: Please read description carefully. Do not base your order on the picture presented.
