Features:

Supports Ultra HD (4K at60p) resolution and HEVC/H.265 & VP9 high-definition video playback
HDMI 2.0
Support TPM2.0, the use of validated encryption key brings extra security to your device
Watchdog timer for device monitoring and control

A value range device based on the reliable Intel® Dual Core Apollo Lake® Processor N3350, which is capable of running UHD playback. The DE3450S supports one Ultra HD (4K at60Hz) resolution display and HEVC/H.265 10 bit high-definition video playback. Its fanless and solid state design make sure that it's one of the most reliable players in the market today.

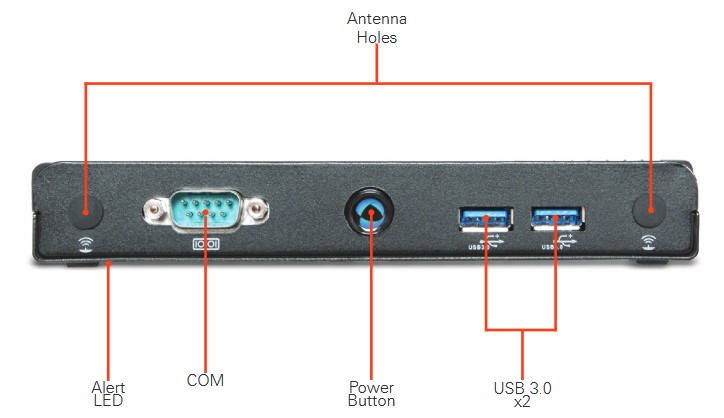

Front Panel DE3450S

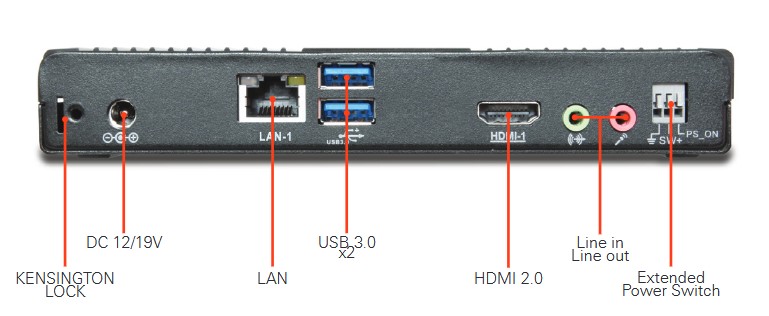

Rear Panel DE3450S

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Dimensions (W x H x D)

166 x 25 x 158 mm
6.54 x 0.98 x 6.22 inch

Chassis Color

Black

Housing Material

Metal

Volume (liters)

0.65 L

Weight

N.W. 0.8 kg/ 1.76 lb
G.W. 1.5 kg/ 3.31 lb

CPU/Chipset

Support Intel Apollo lake CPU: Intel Apollo lake M Dual Core N3350 ( TDP>=6W)

Memory

Channels: Dual Channel
Type: DDR3L SO-DIMM x2, 1333 MHz
Max Memory: 16GB

Graphics

Intel HD Graphic 500

Expansion Slot

M.2 2242 x2 (for MCU/4G x1, for SSD x1)
M.2 2230 x1 (for WIFI)

Audio

Realtek HD Audio ALC269Q
Channel: Stereo

LAN

Realtek Gigabit Ethernet
RTL8111H x1
10/100/1000 Mbps

Storage

M.2

Front Panel IO

USB 3.0 Port x 2
Others: RS232 DB9 x 1, Antenna Holes x2

Rear Panel IO

DC Jack x 1
HDMI Port 2.0 x 1
USB 3.0 Port x 2
RJ45 LAN Jack x 1
Line-Out x 1
Mic-in x 1
Kensington Lock Hole x 1
Others Extended Power Switch x 1

Adapter

DC in 12/19V 19V/40W adapter

WatchDog Timer

1 ~ 255 SEC./ min

Input Voltage

AC 100 ~ 240V

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Dimensions (W x H x D)

166 x 25 x 158 mm
6.54 x 0.98 x 6.22 inch

Chassis Color

Black

Housing Material

Metal

Volume (liters)

0.65 L

Weight

N.W. 0.8 kg/ 1.76 lb
G.W. 1.5 kg/ 3.31 lb

CPU/Chipset

Support Intel Apollo lake CPU: Intel Apollo lake M Dual Core N3350 ( TDP>=6W)

Memory

Channels: Dual Channel
Type: DDR3L SO-DIMM x2, 1333 MHz
Max Memory: 16GB

Graphics

Intel HD Graphic 500

Expansion Slot

M.2 2242 x2 (for MCU/4G x1, for SSD x1)
M.2 2230 x1 (for WIFI)

Audio

Realtek HD Audio ALC269Q
Channel: Stereo

LAN

Realtek Gigabit Ethernet
RTL8111H x1
10/100/1000 Mbps

Storage

M.2

Front Panel IO

USB 3.0 Port x 2
Others: RS232 DB9 x 1, Antenna Holes x2

Rear Panel IO

DC Jack x 1
HDMI Port 2.0 x 1
USB 3.0 Port x 2
RJ45 LAN Jack x 1
Line-Out x 1
Mic-in x 1
Kensington Lock Hole x 1
Others Extended Power Switch x 1

Adapter

DC in 12/19V 19V/40W adapter

WatchDog Timer

1 ~ 255 SEC./ min

Input Voltage

AC 100 ~ 240V

Note

Note: Please read description carefully. Do not base your order on the picture presented.
