Altronix, NETWAY4BT, 4-Port Managed 802.3bt 4PPoE Midspan Injector, 360W Total Power, 115/230VAC

Features:

IEEE 802.3af (15W), IEEE 802.3at (30W) and IEEE802.3bt compliant
90W maximum power per port (360W total power)
Four (4) ports for cameras/edge devices over ethernet
Speed: 10/100/1000 Mbps
Port status LEDs
Auto detection and protection of legacy non-PoE cameras/devices
Real-time power diagnostics with e-mail and Windows Dashboard Alert notifications
Local and/or remote access to critical information via LAN/WAN
Event Log tracks history
Built-in IP networked management allows for remote camera reset and monitoring
Built-in battery charger
UL Listed
CE European Conformity

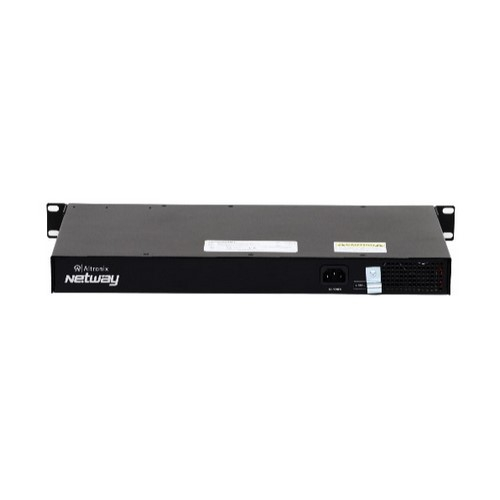

Altronix NetWay4BT is a 4-port networked Managed Midspan in a 1U rack enclosure. It provides PoE/PoE+/Hi PoE up to 90W (802.3bt compliant) power per port, 360W total max. and passes data at 10/100/1000 Mbps at distances up to 100m. Features also include an integral battery charger for applications requiring backup and embedded LINQ™ Technology to monitor, control, and report power and diagnostics from anywhere over the network.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Input

115VAC, 60Hz, 5.5A or 230VAC, 50/60Hz, 3A (auto-ranging).

Power

Unit supplies PoE output voltage (55V) and up to 90W max. full power per port.
Total power: 360W.
IEEE 802.3af, IEEE 802.3at and IEEE802.3bt compliant.
Short circuit protection.

Ethernet

Four (4) ports for cameras/edge devices over ethernet.
Wire type: 4-pair CAT5e and higher.
Speed: 10/100/1000 Mbps.

Functions

Auto detection and protection of legacy non-PoE cameras/edge devices.

Indicators (LED)

Yellow and Green LED (by RJ45 jack):
IP Link status, 10/100/1000 Base-T/active.
Green LED Port status.

Battery Charging

Built-in battery charger (optional rack mount battery enclosure - RE2).
Automatic switchover to stand-by battery when AC fails.
(Batteries are sold separately).

LINQ Technology

SSL (Secure Socket Layer) security encryption.
User level security.
Built-in IP management allows for remote camera reset and monitoring.
Provides local and/or remote access to critical information via LAN/WAN
Email and Windows Dashboard Alert notifications report real-time diagnostics.
Event log tracks history.

Temperature

Operating: - 20ºC to 50ºC ( - 4ºF to 122ºF).
Storage: - 20º to 70ºC ( - 4ºF to 158ºF).
Relative Humidity: 85% +/- 5%.
BTU/Hr. (approx.): 246 BTU/Hr.

Operating Altitude

Up to 2,000m.

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Input

115VAC, 60Hz, 5.5A or 230VAC, 50/60Hz, 3A (auto-ranging).

Power

Unit supplies PoE output voltage (55V) and up to 90W max. full power per port.
Total power: 360W.
IEEE 802.3af, IEEE 802.3at and IEEE802.3bt compliant.
Short circuit protection.

Ethernet

Four (4) ports for cameras/edge devices over ethernet.
Wire type: 4-pair CAT5e and higher.
Speed: 10/100/1000 Mbps.

Functions

Auto detection and protection of legacy non-PoE cameras/edge devices.

Indicators (LED)

Yellow and Green LED (by RJ45 jack):
IP Link status, 10/100/1000 Base-T/active.
Green LED Port status.

Battery Charging

Built-in battery charger (optional rack mount battery enclosure - RE2).
Automatic switchover to stand-by battery when AC fails.
(Batteries are sold separately).

LINQ Technology

SSL (Secure Socket Layer) security encryption.
User level security.
Built-in IP management allows for remote camera reset and monitoring.
Provides local and/or remote access to critical information via LAN/WAN
Email and Windows Dashboard Alert notifications report real-time diagnostics.
Event log tracks history.

Temperature

Operating: - 20ºC to 50ºC ( - 4ºF to 122ºF).
Storage: - 20º to 70ºC ( - 4ºF to 158ºF).
Relative Humidity: 85% +/- 5%.
BTU/Hr. (approx.): 246 BTU/Hr.

Operating Altitude

Up to 2,000m.

Note: Please read description carefully. Do not base your order on the picture presented.
