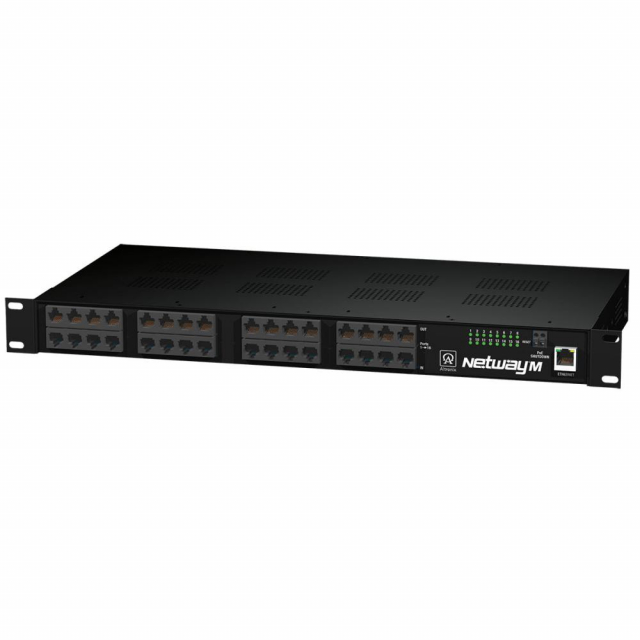

Altronix NETWAY16M NetWay Midspan Injector, 16 Port, 10/100, PoE/PoE+

  • Brand Altronix
  • Part # NETWAY16M
  • Model # NetWay
  • Condition
    Brand New

Contact Us For Pricing

Availability
Contact Us
Check Availability
Quantity
Share:

Features:

  • IEEE 802.3af (15W) and IEEE 802.3at (30W) compliant.
  • Sixteen (16) ports for cameras/edge devices over ethernet.
  • Speed: 10/100 Mbps.
  • 30W maximum power per port.
  • Port status LEDs.
  • LAN or laptop connection enables programming of PoE shutdown and port monitoring.
  • User interface.
  • Programmable PoE shutdown for each port. Utilized to reset cameras/edge devices.
  • Auto detection and protection of legacy non-PoE cameras/devices.
  • UL Listed in the U.S. and Canada.
  • CE Approved.

Altronix NetWay16M Managed Midspans provide power and pass data for PoE compliant cameras/edge devices. Cameras/edge devices may be located up to 100m from the NetWay unit. A NetWayXT repeater module can be utilized to extend the distance an additional 100m for a total range of up to 200m. A maximum range of 600m is possible using multiple repeaters, based on camera/device port requirement. NetWay Managed Midspans are capable of supporting non-PoE compliant fixed and PTZ IP cameras utilizing NetWay1512 or NetWay3012 adapters.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Distributor
Manufacturer Warranty

Technical Details

Reviews
Input Voltage115VAC 60Hz, 4.9A.
PowerSixteen (16) ports of cameras/edge devices over ethernet (CAT5) cable up to a distance of 100m per port. Unit provides up to 30W max. full power per port. Total power: 300W. IEEE 802.3af (PoE) and IEEE 802.3at (PoE +) compliant. Short circuit protection.
FunctionsProgrammable PoE shutdown for each port. Utilized to reset cameras/edge devices. Auto detection and protection of legacy non-PoE cameras/edge devices.
FeaturesLAN or laptop connection enables programming of PoE shutdown and port monitoring. User interface. Illuminated master power disconnect circuit breaker with manual reset (switch). Individual port status LEDs. IEC 320 - 3-wire grounded line cord (detachable).
TemperatureOperating: UL60950-1: - 20° C to 40° C (-4° F to 104° F). UL294: - 20° C to 49° C (-4° F to 120.2° F). Storage: - 20° C to 70° C (-4° F to 158° F). Relative Humidity 85% +/- 5%. BTU/Hr. (approx.): 154 BTU/Hr. System AC input VA requirement: 563.5VA.
Operating Altitude- 304.8 to 3,048m ( - 1,000 to 10,000 ft.).
Dimensions (W x L x H)1.625" x 19.125" x 8.5" (41.275mm x 486mm x 216mm).
Agency ListingsUL/cUL UL60950-1 (Information Technology Equipment). UL UL 294 (Access Control).
EthernetConnectivity: RJ45, auto-crossover. Wire type: 4-pair CAT5e or better structured cable. Distance: up to 100m. Speed: 10/100 BaseT, half/full duplex, auto negotiation.
Indicators (LED)Yellow and Green LED (by RJ45 jack): IP Link status, 10/100 Base-T/active. Green LED Port status.
Product Details
Input Voltage115VAC 60Hz, 4.9A.
PowerSixteen (16) ports of cameras/edge devices over ethernet (CAT5) cable up to a distance of 100m per port. Unit provides up to 30W max. full power per port. Total power: 300W. IEEE 802.3af (PoE) and IEEE 802.3at (PoE +) compliant. Short circuit protection.
FunctionsProgrammable PoE shutdown for each port. Utilized to reset cameras/edge devices. Auto detection and protection of legacy non-PoE cameras/edge devices.
FeaturesLAN or laptop connection enables programming of PoE shutdown and port monitoring. User interface. Illuminated master power disconnect circuit breaker with manual reset (switch). Individual port status LEDs. IEC 320 - 3-wire grounded line cord (detachable).
TemperatureOperating: UL60950-1: - 20° C to 40° C (-4° F to 104° F). UL294: - 20° C to 49° C (-4° F to 120.2° F). Storage: - 20° C to 70° C (-4° F to 158° F). Relative Humidity 85% +/- 5%. BTU/Hr. (approx.): 154 BTU/Hr. System AC input VA requirement: 563.5VA.
Operating Altitude- 304.8 to 3,048m ( - 1,000 to 10,000 ft.).
Dimensions (W x L x H)1.625" x 19.125" x 8.5" (41.275mm x 486mm x 216mm).
Agency ListingsUL/cUL UL60950-1 (Information Technology Equipment). UL UL 294 (Access Control).
EthernetConnectivity: RJ45, auto-crossover. Wire type: 4-pair CAT5e or better structured cable. Distance: up to 100m. Speed: 10/100 BaseT, half/full duplex, auto negotiation.
Indicators (LED)Yellow and Green LED (by RJ45 jack): IP Link status, 10/100 Base-T/active. Green LED Port status.
