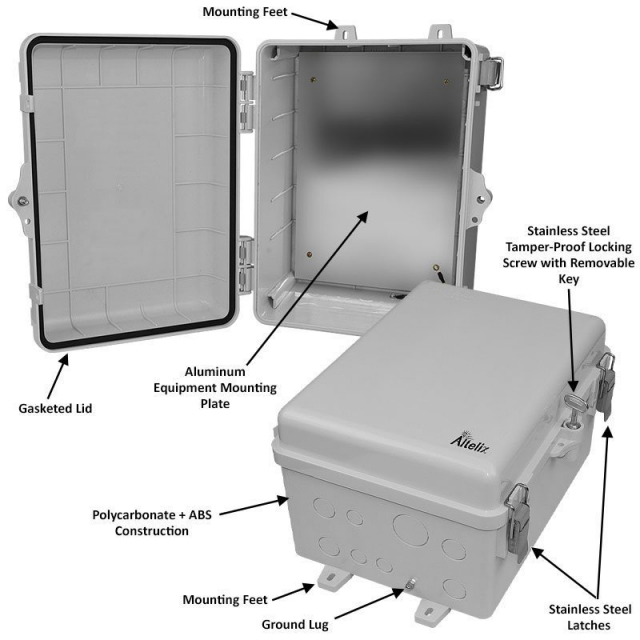

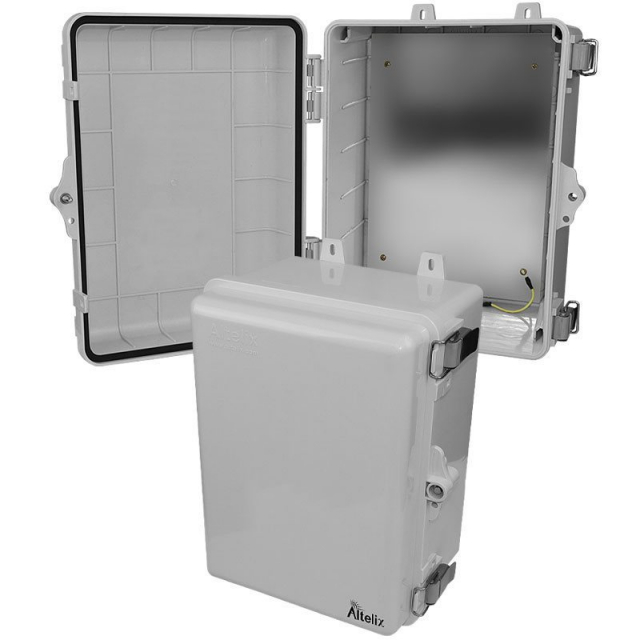

Altelix, NP120907P, 12" x 9" x 7" IP66 NEMA 4X PC+ABS Weatherproof Utility Box with Hinged Door and Aluminum Mounting Plate
Features:
- Improved design provides better versatility and security
- Features an aluminum equipment mounting plate
- Durable Polycarbonate + ABS construction
- Weatherproof and UV Stable
- Meets NEMA 1, 2, 4, 4X, 12, 13 and IEC 529 IP65, IP66
- Gasketed lid with dual stainless steel latches
- Tamper-Proof locking screw with key and provision for padlock
- Can be mounted using external mounting feet or internal mounting feet
- RF transparent for wireless devices
- Multiple size knock-out holes on bottom of enclosure
- Includes (2) locking keys, cable grommets, cable glands, zip ties, hook-n-loop tape and wall mounting hardware
Applications:
- Indoor / Outdoor WiFi access points and routers
- Multi purpose utility box
- Home automation
- WiFi, LoRa and RFID gear
- Security and surveillance systems
- LED controllers
- IoT devices
- Network switches
- Media converters
- Cable TV and CCTV amplifiers
- Broadband equipment
- SCADA remote terminal
- Outdoor weather protection
- Protection against theft or damage
- Warehouses and public areas
- Concealment of equipment
Altelix is excited to offer the redesigned NP120907 series Enclosure. Some of the features include:
- Dual stainless steel latches
- Multiple mounting options - (4) external mounting feet and internal mounting points
- Deeper enclosure base
- Increased number of multiple-sized knock-out holes provided on the bottom of the enclosure
The Altelix NP120907P NEMA 4X enclosure is ideal for protecting devices from harsh environments and tampering. With the generous size of this enclosure the NP120907P can accommodate a wide range of equipment.
Aluminum Equipment Mounting Plate
Included with this enclosure is a 1.5mm thick aluminum plate for mounting and securing equipment. The plate can be easily drilled and modified by the installer to suit unique site requirements.
Secure Your Equipment
These NP series Enclosure feature a gasketed lid with dual stainless steel quick-release latches. A stainless steel security screw with keys and a provision for a padlock are also provided.
Polycarbonate + ABS Protection Built to Last
This enclosure is molded out of UV-resistant Polycarbonate + ABS, an industrial-grade plastic with greater strength and durability than standard ABS. This enclosure can be easily drilled and modified by the installer to suit unique site requirements. It meets or exceeds NEMA 1, 2, 4, 4X, 12, 13, and IEC 529 IP65, IP66.
Complete with Cable Grommets and Wire Management Accessories
This enclosure includes an assortment of cable grommets and cable glands that can be installed in the knock-out holes for a weather-resistant seal. Also included in the accessory kit are wall anchors, zip ties, wire management loops, hook-n-loop tape, ground wire, (2) door-locking keys, and more.
Multiple Mounting Options
This enclosure features (4) external mounting feet which can be used for wall mounting or with optional pole mounting kit. Mounting points are also provided inside the enclosure. These can be easily drilled out and used for applications requiring a more secure installation.
