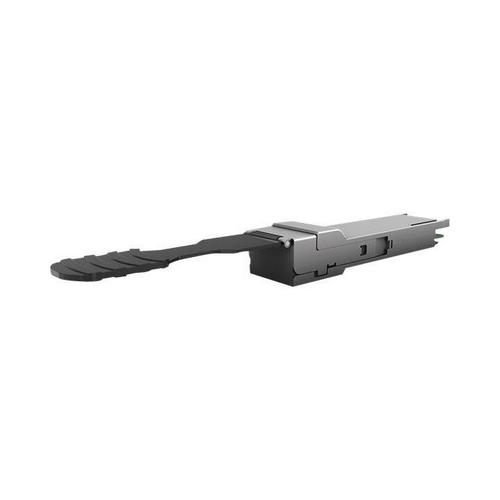

Allied Telesis AT-QSFP28SR4 Hot-Swappable Transceiver Module, MMF

This 100 Gigabit Quad Small Form-Factor Pluggables (QSFPs) are supported on all Allied Telesis devices with uplink connections. It is hot-swappable to allow for network changes without removal or reconfiguration of costly network equipment.

It supports 100GbE interconnects. They are ideal for Datacom/Telecom switch and router connections, as well as data aggregation, backplane, proprietary protocol and high-density applications. It is fully compliant with industry-standard networking regulations so it may be used on any networking equipment which complies with industry standards.

100G, QSFP28 SR4, MMF, MPO-12.

Features:

• Compliant to IEEE 802.3bm 100GBASE-SR4 standard (QSFP28-SR4)
• Compliant to IEEE 802.3ba 100GBASE-LR4 standard (QSFP28-LR4)
• MSA compliant
• Compliant to SFF-8665 (QSFP28 Solution) Revision 1.8
• Up to 25Gbps data rate per wavelength
• Up to 10 km transmission on single mode fiber (SMF)
• Operating case temperature: 0~70°C
• Low power consumption of max 2.5W (Typ. 1.8W) (SR4) and 4.0W (LR4)
• MPO connector (SR4)
• LC duplex connector (LR4)
• RoHS-6 compliant
