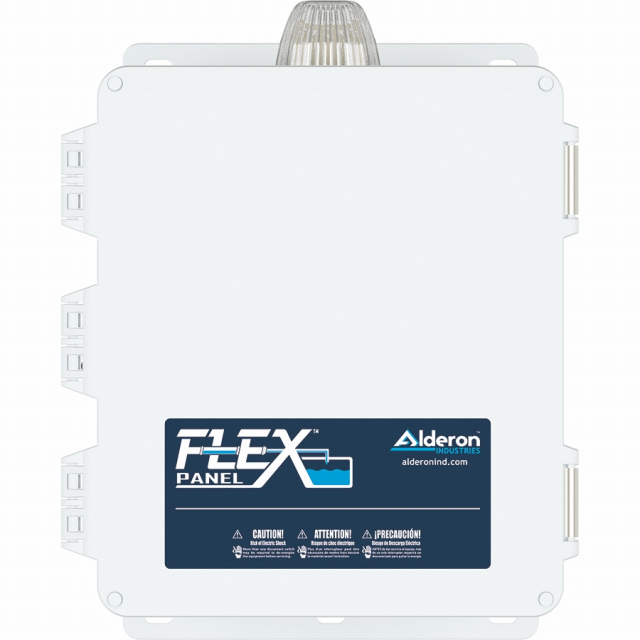

Alderon 2012557 Flex Single Phase Duplex IEC Contactors

Features:

• Type 4X Enclosure, Indoor or Outdoor, Pad-Lockable
  • Standard Enclosure Size 12" x 10" x 6" (inches)
  • Opaque Door, Alarm Beacon with Red Flashing LEDs

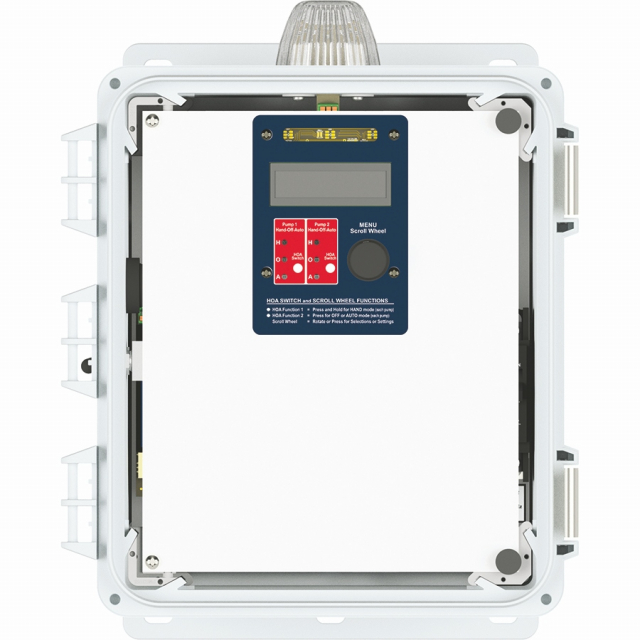

  • Inner Door, View OLED Screen with Alarm and Status Indicator LEDs
  • Alarm Buzzer and Alarm Test/Silence Switch

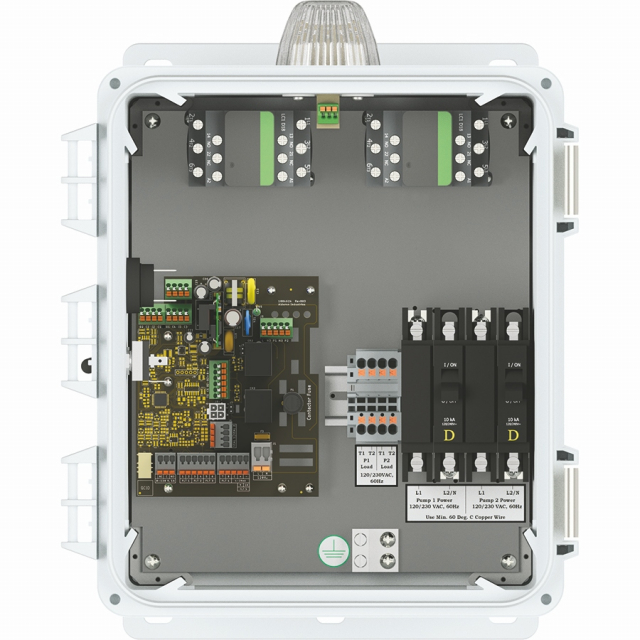

• Pump Circuit Breakers and IEC Contactor Pump Starters
  • Pump Circuit Breakers for Pump Disconnect
• Beacon with Vibrant Multi-Color LEDs (select indicators listed)
  • Green (normal), Red (alarms), Blue (pump run), and Red/Yellow (error)
• Automatic Resettable Alarm and Control Fuses
• Built-in Printed Circuit Board Surge Protection (conformal coated)
• Easily Change Configurations
  • Demand Dosing, Timed Dosing, Transducer Settings, Enable Pump Exerciser, and Seal Fail Alarm or Pump Shutdown
• Sensor Options (signaling device)
  • Field Wire up to (5) Digital Inputs
  • Low Alarm/Redundant Off, Off, Lead, and Lag/High Alarm
  • Configure 5th Input for a 4-20mA Submersible Transducer (with 316 stainless steel cable hanger) or Digital Input for Auxiliary Switch, or (5) Float System to separate Lag and High Alarm
• Statistic Tracking (each pump)
  • Pump Elapsed Time, Min/Max/Avg Pump Run Times, Pump Cycle Counter, Total Gallons Pumped, High Level Stats, and More
• Included Auxiliary "Dry" Contacts
  • Pump 1 Run, Pump 2 Run, and General Alarm
  • Configurable Reverse Operated for General Alarm plus Power Loss
• Hand-Off-Auto (HOA) Pump Selector Switch (each pump)
  • Off Reminder, Yellow Flashing LEDs and Displays "Pumps Disabled"
  • Configurable Pump Disable
• Scroll Wheel and Digital Display (password protected settings)
  • Navigate Menu, Access Statistics Tracking, Configure Settings, and Displays System Information on OLED Screen
• Exterior Test/Silence Switch
  • Quick View of Pump and Alarm Stats, Alarm Test, or Silence Buzzer
