| Optical (Foreground LEDs) | 19x 30W RGBL (4-IN-1) LEDs, 30,000 Hour Average LED Life, CRI - 86, 15,000 Lux (Zoomed In to 7° @ 5 meters), 7° to 42° Beam Angle, 9° to 60° Field Angle |
| Optical (Background LEDs) | 30x 0.5W SMD RGB LEDs, 50,000 Hour Average LED Life |
| Optical (Ring LEDs) | 40x 0.5W SMD RGB LEDs, 50,000 Hour Average LED Life |
| Colors | 19x RGBL LEDs (Red, Green, Blue and Lime), 70x RGB LEDs (Red, Green and Blue), Virtual CMY DMX Control Modes, Virtual Foreground and Background Color Wheel Control, Built-In Color Macros, 2,700K ~ 10,000K Linear White Color Temperature Control |
| Color Temperature Presets | 2,700, 3,000, 3,200, 4,000, 4,500, 5,000, 5,600, 6,500, 8,000 and 10,000K |
| Effects | 19x 30W RGBL (4-IN-1) Foreground LEDs, Fully pixel mappable, 30x 0.5W RGB Background LEDs, Fully pixel mappable, 40x 0.5W RGB Ring LEDs, three channel control, Variable Strobe & Pulse effects (0.5Hz to 33Hz), Motorized Zoom (7° to 42°) |

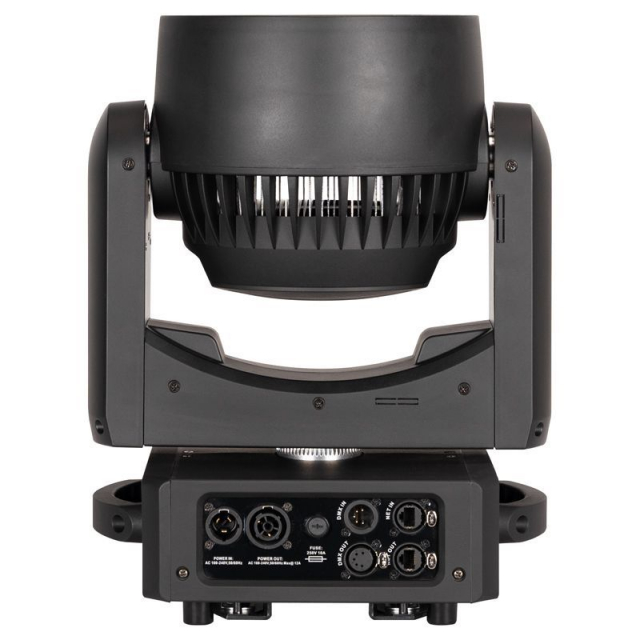

| Connections | Seetronic, IP65 locking power In & Thru Connections, Seetronic, IP20 5-pin In & Out DMX Connections, 2x IP20, RJ45 network ports |
| Control | Aria X2 Wireless Management System, DMX-512, RDM (Remote Device Management), Artnet, sACN, 7 DMX Control Modes, Built-In Effect Pixel Programs with Speed and Fade Control, With Wired Digital Communication Network |
| Pan | 630 or 540 degrees |
| Tilt | 270 degrees |
| Multi-voltage operation | 100-230V, 50/60Hz |
| Max power consumption | 730W (6.64Amps) @ 120V. 690W (3.04Amps) @ 230V. |
| Approvals / Rating | cETLus Pending, CE Certified, IP20 |
| Dimensions | 16 x 11.9 x 9" |
| Weight | 11.9 lbs |
