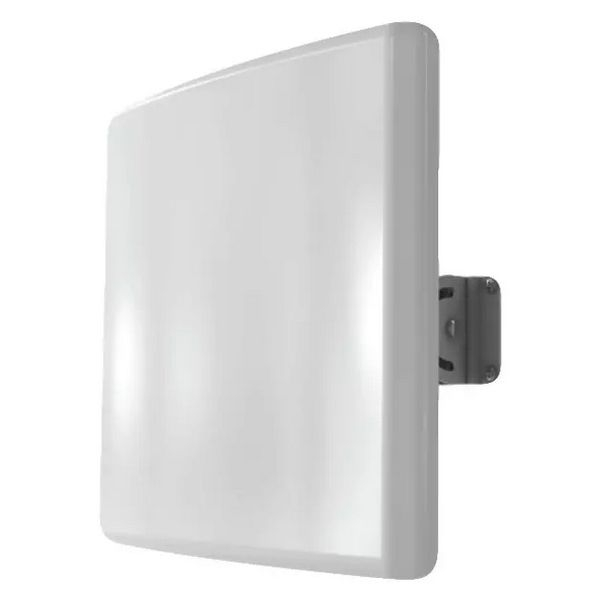

ACCELTEX, ATS-OHDP-245-13-3NJ-IC, High Density Patch Antenna, 2.4/5 GHz, 13 dBi, 3 Element, N-Style

Features:

The AccelTex Solutions high density dual band indoor/outdoor patch antenna is a perfect complement to any enterprise-class AP to achieve focused, directional coverage in your indoor or outdoor space
With a narrower beamwidth than most patch antennas and both horizontal and vertical polarized antenna elements, this antenna is purpose-built to provide a very focused coverage pattern suitable for high density deployments
Each antenna element is optimized for Wi-Fi operation on both 2.4 and 5 GHz
This antenna comes with integrated connectors and ships with articulating wall and pole mount kit for precise antenna positioning
This highly versatile antenna is suitable for a broad range of indoor and outdoor applications where focused RF coverage of an area is desired

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Antenna Type	High Density Patch
Number Of Leads	3
Related Accessories	ATS-240-NP-RANP-10ft, ATS-240-RANP-RPSMAP-5ft, ATS-240-RANP-RPTNCP-5ft, ATS-LP-N-BHJ-P
Applicable Technology	802.11ac, 802.11ax, 802.11n
Ideal Applications	High Density, Indoor Wi-Fi, Outdoor Wi-Fi, Stadium
Applicable Industries	Education, Enterprise, Healthcare, Hospitality, Transportation, Warehouse
Compatible AP	Cisco 1602e, Extreme WiNG AP 7532, Meru/Fortinet FAP-S313C, Meru/Fortinet FAP-S323C, Meru/Fortinet FAP-S323CR
WIND VELOCITY	130 mph (210 km/h)
Operating Temperature	-40 to 149 F (-40 to 65 C)
Installation Environment	Indoor or Outdoor
Connector	N-Style Jack
Installation	Articulating Wall/Pole Mount
POLE MOUNT DIAMETER	2" (50mm)
Radome Material	ASA
Frequency Range	2.4/5 GHz
Weights	1.8 lb (0.8 kg)
Dimensions	13.8" H x 13.8" W x 1.8" D (350mm H x 350mm W x 45 mm D)
Max Input Power	100 W
Lighting Protection	DC Grounded
Impedance	50 ohms
Isolation	> 20 dB
VSWR	2.0:1
Vertical Beamwidth	30 (V), 40 (H), 40 (V)/35 (H)
Horizontal Beamwidth	35 (V), 40 (H), 40 (V)/30 (H)
Polarization	2 Vertical 1 Horizontal
Gain	13 dBi

Antenna Type	High Density Patch
Number Of Leads	3
Related Accessories	ATS-240-NP-RANP-10ft, ATS-240-RANP-RPSMAP-5ft, ATS-240-RANP-RPTNCP-5ft, ATS-LP-N-BHJ-P
Applicable Technology	802.11ac, 802.11ax, 802.11n
Ideal Applications	High Density, Indoor Wi-Fi, Outdoor Wi-Fi, Stadium
Applicable Industries	Education, Enterprise, Healthcare, Hospitality, Transportation, Warehouse
Compatible AP	Cisco 1602e, Extreme WiNG AP 7532, Meru/Fortinet FAP-S313C, Meru/Fortinet FAP-S323C, Meru/Fortinet FAP-S323CR
WIND VELOCITY	130 mph (210 km/h)
Operating Temperature	-40 to 149 F (-40 to 65 C)
Installation Environment	Indoor or Outdoor
Connector	N-Style Jack
Installation	Articulating Wall/Pole Mount
POLE MOUNT DIAMETER	2" (50mm)
Radome Material	ASA
Frequency Range	2.4/5 GHz
Weights	1.8 lb (0.8 kg)
Dimensions	13.8" H x 13.8" W x 1.8" D (350mm H x 350mm W x 45 mm D)
Max Input Power	100 W
Lighting Protection	DC Grounded
Impedance	50 ohms
Isolation	> 20 dB
VSWR	2.0:1
Vertical Beamwidth	30 (V), 40 (H), 40 (V)/35 (H)
Horizontal Beamwidth	35 (V), 40 (H), 40 (V)/30 (H)
Polarization	2 Vertical 1 Horizontal
Gain	13 dBi

Note: Please read description carefully. Do not base your order on the picture presented.
