Buy AccelTex ATS-ODDHRP-245-4-8RPSP-120, I/O Dual Patch Antenna, 2.4/5 GHz

info@PrimeBuy.com

1-855-969-9322
1-908-282-3332 (Intl.)

ACCELTEX, ATS-ODDHRP-245-4-8RPSP-120, Features:

The AccelTex Solutions 2.4/5 GHz indoor/outdoor dual directional patch antenna is a perfect complement to any enterprise-class AP to achieve dual directional coverage in a stadium or arena

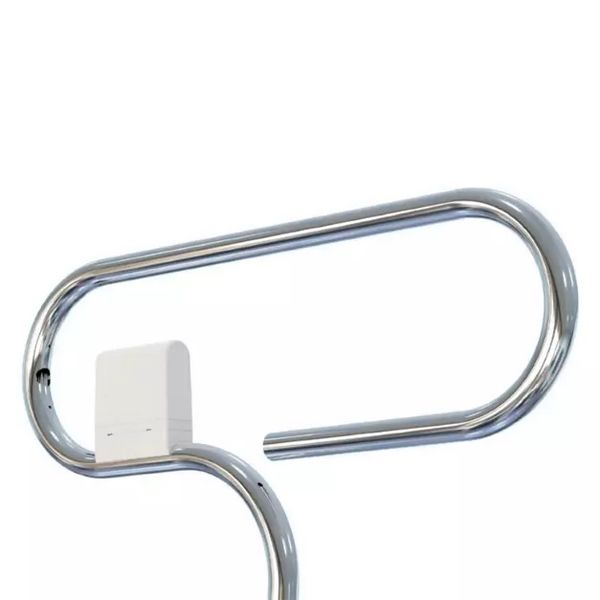

This antenna attaches to a standard stadium handrail and propagates RF in two directions
Each antenna ships with 3 different handrail adapters for affixing to a round or square handrail
This highly versatile antenna is suitable for a broad range of stadium applications where focused RF coverage of an area is desired

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Antenna Type	Patch
Number Of Leads	8
Related Accessories	ATS-NP-RPSMAJ, ATS-RPSMAJ-RPTNCP
Applicable Technology	802.11ac, 802.11ax, 802.11n, 802.3af, 802.3at
Ideal Applications	High Density, Stadium
Applicable Industries	Hospitality
Compatible AP	Cisco 3802e
WIND VELOCITY	130 mph (210 km/h)
Operating Temperature	-40 to 149 F (-40 to 65 C)
Installation Environment	Indoor or Outdoor
Cable Type	RG58
Cable Length	10' (3048mm)
Connector	RPSMA Plug
Frequency Range	2.4-2.5/4.9-5.85 GHz
Impedance	50 ohms
Gain	4 dBi
Polarization	Vertical
Horizontal Beamwidth	117/110
Vertical Beamwidth	81/78
VSWR	2.2:1
Isolation	> 20 dB
Lighting Protection	DC Grounded
Radome Material	ASA
Max Input Power	100 W
Dimensions	7.9" L x 5.9" H x 2.2" D (202mm L x 150mm H x 55 mm D)
Weights	1.2 lb (0.5 kg)
Installation	3 Handrail Adapters
INSTALLATION HOLE DIAMETER	1.18" (30 mm)
POLE MOUNT DIAMETER	Up to 2" (50mm) diam

Notes
