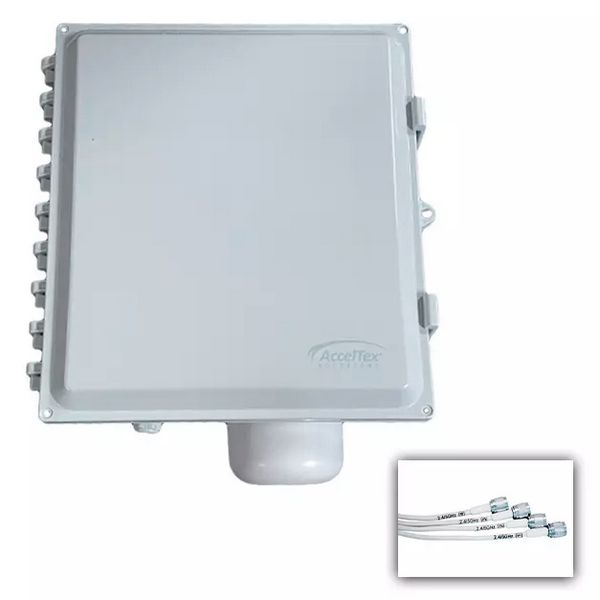

ACCELTEX, ATS-14126P-S-L-CG-UBPTB-INTOO-46-4RPTP, Enclosure System, 14x12x6", 4 Lead, 4/6 dBi, RPTNC Omni

Features:

Solid Latch Enclosure and Integrated Omni
The AccelTex Solutions polycarbonate enclosure protects any enterprise-class AP from environmental threats and tampering
Purpose built for enterprise applications, this aesthetically pleasing enclosure is inconspicuous in an indoor application
Comes pre-installed with an AccelTex omni antenna on the bottom of the enclosure

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Antenna Type	Omni
Cord Grip	Yes
Ideal Applications	High Density, Indoor Wi-Fi
Applicable Technology	802.11ac, 802.11ax, 802.11n, 802.3af, 802.3at
Color	Light Grey
Material	Polycarbonate
Door Type	Solid
Lock Type	Latch
Equipment Installation	Universal Backplate and T-Bar
Compatible AP	Cisco 1852e, Cisco 2602e, Cisco 2702e, Cisco 2802e, Cisco 3602e, Cisco 3702e, Cisco 3802e, Cisco Catalyst 9115e, Cisco Catalyst 9117, Cisco Catalyst 9120AXE
Enclosure Installation	Mounting Feet
Environmental Protection	122; IP68, 3R, 4, NEMA 4X
Enclosure System Components	ATS-14126P-S-L-CG-UBPTB and ATS-OO-245-46-4RPTP-36
Applicable Industries	Education, Enterprise, Healthcare, Hospitality, Transportation, Warehouse
Operating Temperature	-20 to 240 F (-28 to 115 C)
Frequency Range	2.4-2.5/4.9-5.85 GHz
Lighting Protection	DC Grounded
Gain	4/6 dBi
Polarization	Vertical
Horizontal Beamwidth	360
Vertical Beamwidth	144/55
VSWR	2.0:1
Isolation	> 20 dB
Impedance	50 ohms
Max Input Power	100 W
Installation Environment	Indoor or Outdoor
Dimensions	14" H x 12" W x 6" D (355.6 mm H x 304.8 mm W x 152.4 mm D)
Weights	8.0 lbs (3.63 kg)
Radome Material	ASA
Connector	RPTNC Plug
Number Of Leads	4
Cable Length	36" (910mm)
Cable Type	RG58

Antenna Type	Omni
Cord Grip	Yes
Ideal Applications	High Density, Indoor Wi-Fi
Applicable Technology	802.11ac, 802.11ax, 802.11n, 802.3af, 802.3at
Color	Light Grey
Material	Polycarbonate
Door Type	Solid
Lock Type	Latch
Equipment Installation	Universal Backplate and T-Bar
Compatible AP	Cisco 1852e, Cisco 2602e, Cisco 2702e, Cisco 2802e, Cisco 3602e, Cisco 3702e, Cisco 3802e, Cisco Catalyst 9115e, Cisco Catalyst 9117, Cisco Catalyst 9120AXE
Enclosure Installation	Mounting Feet
Environmental Protection	122; IP68, 3R, 4, NEMA 4X
Enclosure System Components	ATS-14126P-S-L-CG-UBPTB and ATS-OO-245-46-4RPTP-36
Applicable Industries	Education, Enterprise, Healthcare, Hospitality, Transportation, Warehouse
Operating Temperature	-20 to 240 F (-28 to 115 C)
Frequency Range	2.4-2.5/4.9-5.85 GHz
Lighting Protection	DC Grounded
Gain	4/6 dBi
Polarization	Vertical
Horizontal Beamwidth	360
Vertical Beamwidth	144/55
VSWR	2.0:1
Isolation	> 20 dB
Impedance	50 ohms
Max Input Power	100 W
Installation Environment	Indoor or Outdoor
Dimensions	14" H x 12" W x 6" D (355.6 mm H x 304.8 mm W x 152.4 mm D)
Weights	8.0 lbs (3.63 kg)
Radome Material	ASA
Connector	RPTNC Plug
Number Of Leads	4
Cable Length	36" (910mm)
Cable Type	RG58

Note: Please read description carefully. Do not base your order on the picture presented.
