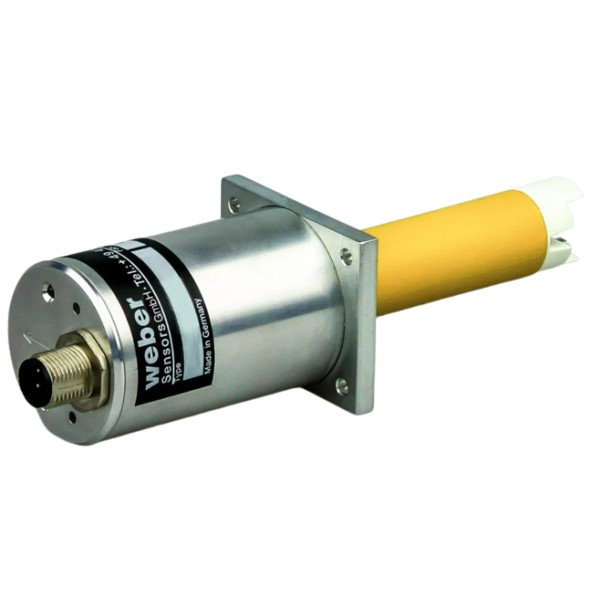

Buy Weber Sensors 3202.13 S300, Vent-Captor Sensor, PNP, Energized

info@PrimeBuy.com

1-855-969-9322
1-908-282-3332 (Intl.)

Options and Related Products

Output Type:: Output Type: PNP, Energized

Features:

Compact and robust industrial design (full potting)
2 individually adjustable switching points (.12/.13)
2 LEDs for displaying the separate switching points
Temperature-independent
Each switching point can be set between 0.5 and 30 m/s
ISO 9001:2015

The sensor operates according to the calorimetric measuring principle - fully electronic and without any mechanically moved parts. The sensor detects the flow velocity of the medium and converts it into electrical signals.

See more product information See less

Return and Warranty

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Type	3202.13 S300
Medium	gaseous (aggressive media on request)
Measuring range	0.5 to 30 m/s
Switching delay	min. 1 sec. to max. 30 sec.
Hysteresis	0.8 - 1.2 m/s
Repeatability	< 1 %
Pressure	up to max. 10 bar
Medium temperature	-20 °C bis +70 °C
Ambient temperature	-20 °C bis +70 °C
Temperature drift	< 0.3 % / K
Protection standard	IP64
Sensor probe	ceramic with overglaze
Sensor housing	Ultradur® (PBTP)
Electronic housing	aluminium, chromatized
Electrical connection	4-pin M12-coupling / 2 m oilflex cable 4 x 0.5 mm
Electrical output	.13
Output flow > set-point	PNP, energized
Supply voltage	24 VDC (18 to 30 VDC incl. residual ripple)
Power consumption	ca. 800 mW to 2.4 W
Switching current	0 - 400 mA
Circuit protection	reverse polarity
Output protection	short ciruit and overload, pulsing
Starting override time	approx. 30 sec. at 0.5 m/s to 5 sec. at 30 m/s set-point
Display	2-color LED: green/red
Set-point adjustment	18 turn potentiometer

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Type	3202.13 S300
Medium	gaseous (aggressive media on request)
Measuring range	0.5 to 30 m/s
Switching delay	min. 1 sec. to max. 30 sec.
Hysteresis	0.8 - 1.2 m/s
Repeatability	< 1 %
Pressure	up to max. 10 bar
Medium temperature	-20 °C bis +70 °C
Ambient temperature	-20 °C bis +70 °C
Temperature drift	< 0.3 % / K
Protection standard	IP64
Sensor probe	ceramic with overglaze
Sensor housing	Ultradur® (PBTP)
Electronic housing	aluminium, chromatized
Electrical connection	4-pin M12-coupling / 2 m oilflex cable 4 x 0.5 mm
Electrical output	.13
Output flow > set-point	PNP, energized
Supply voltage	24 VDC (18 to 30 VDC incl. residual ripple)
Power consumption	ca. 800 mW to 2.4 W
Switching current	0 - 400 mA
Circuit protection	reverse polarity
Output protection	short ciruit and overload, pulsing
Starting override time	approx. 30 sec. at 0.5 m/s to 5 sec. at 30 m/s set-point
Display	2-color LED: green/red
Set-point adjustment	18 turn potentiometer

Note

Note: Please read description carefully. Do not base your order on the picture presented.
