Vivotek
Bestseller
C Series 5MP PRO SNV Compact Size Fisheye Camera

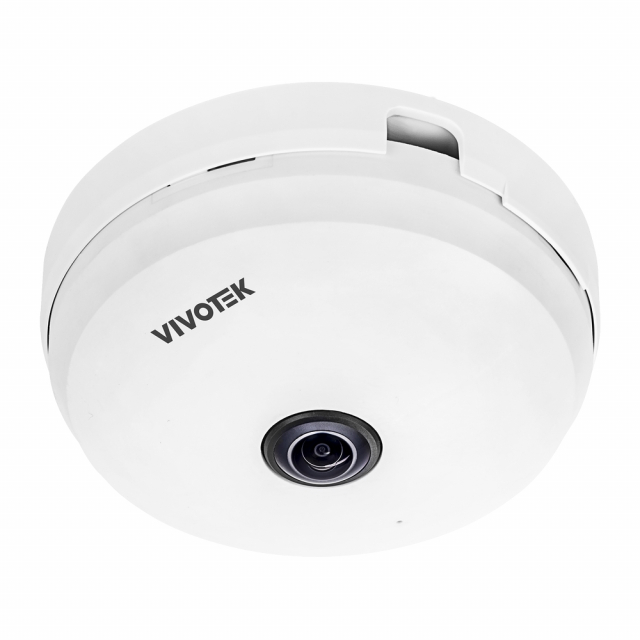

Vivotek FE9180-H-V2 C Series 5MP PRO SNV Compact Size Fisheye Camera

Brand: Vivotek
Part #:
FE9180-H-V2
Model #:
C Series
Condition:
Brand New

Choose Camera Resolution (MP)

$402.80 /Each
$466.00 You save $63.20 14%
Typically In Stock
Check availability
$402.80 /Each
$466.00 You save $63.20 14%
Manufacturer warranty

Description

$402.80 /Each
$466.00 You save $63.20 14%
Typically In Stock
Check availability

Technical details

Main features
  • Interface 10 Base-T/100 Base-TX Ethernet (RJ-45) *It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard.
  • Weight 140 g
  • Connectors RJ-45 cable connector for 10/100Mbps PoE network connection
  • Image Sensor 1/2.7" Progressive CMOS in 2688x1944
  • Field of View 180° (Horizontal) 180° (Vertical) 180° (Diagonal)
  • Power Input IEEE 802.3af PoE Class 2
  • Dimensions O 94 x 35 mm
  • Certifications EMC: CE (EN 55032 Class B, EN55024, EN50121-4), FCC (FCC Part 15 Subpart B Class B), RCM (AS/NZS CISPR 32 Class B), VCCI (VCCI-CISPR 32 Class B) Safety: UL (UL 62368-1), CB (IEC/EN 62368-1, IEC/EN 60950-22, IEC/EN 62471) IA: BIS (IS 13252), BSMI (EMC: CNS 13438, Safety: CNS 14336-1)
  • Focal Length f = 1.16 mm
  • Aperture F2.25
  • CPU Multimedia SoC (System-on-Chip)
  • Lens Type Fixed-focal
  • Users Live viewing for up to 10 clients
  • Camera Resolution (MP) 5
  • Power Consumption Max. 4.6 W
  • Operating Temperature Starting Temperature: 0°C ~ 50°C (32°F ~ 122°F) Working Temperature: -10°C ~ 50°C (14°F ~ 122°F)
  • Minimum Illumination 0.05 lux at F2.25 (Color) <0.005 lux at F2.25 (B/W)
  • Storage Seamless Recording to MicroSD/SDHC/SDXC card and recording to network-attached storage (NAS)
  • Security Access list, digest authentication, HTTPS, IEEE 802.1x, password protection, signed firmware, Trend Micro IoT Security (brute force attack event, cyberattack event, quarantine event), user access log, user account management
  • Dynamic Range 120 dB
  • Day/Night Yes
  • Event Trigger Audio detection, camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), manual trigger, motion detection, periodical trigger, recording notification, SD card life expectancy, shock detection, system boot
  • Event Action Event notification via email, HTTP, FTP, NAS server, SD card File upload via email, HTTP, FTP, NAS server, SD card, Camera Link
  • RAM 256 MB
  • Humidity 90%
  • Protocols 802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2, UDP, UPnP
  • Video Compression H.265, H.264, MJPEG
  • LED Indicator System power and status indicator
  • Max. resolution 1920x1920
  • S/N Ratio 63 dB
  • Audio Compression G.711, G.726
  • Video Streaming Adjustable resolution, quality and bit rate control, Smart Stream II
  • Audio Capability One-way audio
  • Shutter Time 1/5 sec. to 1/32,000 sec.
  • Audio Interface Built-in microphone
  • ONVIF Profile G, S, T supported
  • Effective Range 5 Meters
  • Flash 128 MB
  • Image Settings General settings: video title and time stamp overlay, video orientation (flip, mirror), day/night settings; Image settings: white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3DNR; Exposure: BLC, HLC, exposure control, AE speed adjustment, WDR; Privacy mask Scheduled profile settings Pixel calculator Client dewarping Ceiling mounted: 1O Fisheye, 1P Panoramic, 2P Two Panoramics, 1R One Region, 4R Four Regions, 1O3R One Fisheye Three Regions, 1O8R One Fisheye Eight Regions Wall mounted: 1O Fisheye, 1P Panoramic, 1R One Region, 4R Four Regions, 1P2R One Panoramic Two Regions, 1P3R One Panoramic Three Regions, 1O3R, One Fisheye Three Regions Local dewarping Ceiling mounted: 1O Fisheye, 1P Panoramic, 2P Two Panoramics, 1R One Region, 4R Four Regions Wall mounted: 1O Fisheye, 1P Panoramic, 1R One Region, 4R Four Regions
  • Maximum Frame Rate 24 fps at 1920x1920 (WDR on) 30 fps at 1920x1920 (WDR off)
  • Maximum Streams 4 video streams (Up to 9 configurable profiles)
  • Iris Type Fixed Iris
  • Pan/Tilt/Zoom Functionalities ePTZ: 12x digital zoom (12x on IE plug-in)
  • WDR Technology WDR Pro
  • Removable IR-cut Filter Yes
  • Built-in Installation Aids Pixel calculator
  • VADP Package Stratocast, Trend Micro IoT Security (1-year free trial), VIVOCloud
  • Packing Contents Quick installation guide, alignment sticker, screw pack, mounting bracket
  • Detect (25PPM/ 8PPF) 31.4 m (103 ft)
  • Observe (63PPM/ 19PPF) 12.5 m (41 ft)
  • Recognize (125PPM/ 38PPF) 6.3 m (20.7 ft)
  • Identify (250PPM/ 76PPF) 3.1 m (10.2 ft)
  • Solution Integration Five-window video motion detection
