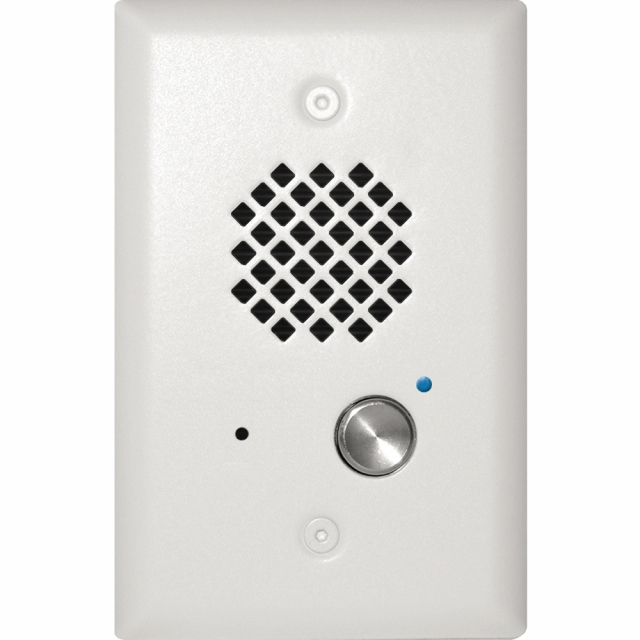

Viking, E-40-WH-EWP, Single Gang White Entry Phone with Enhanced Weather Protection
Features:
- Compact size - Front panel is the size of a typical single gang mid-size wall plate
- Mounting:
- Flush mounts in a single gang electrical box (2.25″ deep x 2.00″ wide x 2.84″ tall minimum)
- Surface mounts in a Viking model VE-3X5 (not included, see DOD 424) for mounting on a wall, post or VE-GNP
- Gooseneck Pedestal (E-40-WH-EWP recommended)
- Vandal Resistant Features:
- 18 gauge 304 stainless steel faceplate
- 316 stainless steel push button
- fiberglass reinforced plastic speaker screen
- scratch resistant powder coating
- hex drive mounting screws
- Weather Resistant Features:
- Mylar speaker
- faceplate gasket
- mic and speaker gasket
- internally sealed (IP67) push button switch
- self draining mic mount
- UV stable weather resistant powder coating
- Telephone line powered
- Microphone and speaker volume controls
- Programmable intelligent call progress detection for automatic hang-up on CPC, silence, busy signal, or time out
- Selectable auto answer feature for monitoring
- Programmable VOX (mic/speaker) switching speed
- Blue LED helps locate push button, indicate ringing and off hook
- Enhanced Weather Protection (EWP), designed to meet IP66 Ingress Protection Rating, see DOD 859
Applications:
- Door or gate communication, business delivery entrances
- Use with a Viking C-200 or C-250 to control one unit on a single line
- Use with a Viking C-500 to control 1 or 2 (expandable to 8) units and door/gate control on a single phone line
- Use with a Viking C-2000B to control 1 to 4 units and door/gate control on a single phone line
- Provide unique front and back door chimes and paging when used with a Viking SLP-1, SLP-4 and C-2000B
- Residential, commercial and industrial door security
- Use with a Viking K-1900-5 or K-1900-30 for automatic speed dialing on telephone lines or analog PABX/KSU station ports
- Use on any analog PABX station port with programmable ringdown capability
Certifications:
- EWP
- IP66
- FCC Part 68
- FCC Part 15
The E-40-WH-EWP entry phone is a compact, weather and vandal resistant, telephone line powered speaker phone designed to provide two-way handsfree audio communication. The E-40-WH-EWP's compact size allows it to be mounted in a standard single gang electrical box. The E-40-WH-EWP's blue LED continually provides light for locating the push button in dark locations, dims to indicate off hook and flashes during incoming calls.
The E-40-WH-EWP entry phone can share a single phone line with house or small business telephones when used with a Viking C-200, C-250, C-500 or C-2000B Entry Phone controller. The E-40-WH-EWP entry phone can also be connected to an unused analog station port (programmed for ringdown) on a phone system or connected directly to a telephone line when used with a Viking K-1900-5 or K-1900-30 auto dialer. The E-40-WH-EWP features microphone and speaker volume controls, selectable auto answer for monitoring and intelligent call progress detection for automatic hang-up when the call is completed.
Replacement faceplates (PNL40-WH) can be purchased separately.
The E-40-WH-EWP is equipped with Enhanced Weather Protection (EWP), ideal for outdoor installations where the unit is exposed to precipitation or condensation. EWP products are designed to meet IP66 standards and may feature foam rubber gaskets, sealed connections, gel-filled butt connectors, as well as potted circuit boards with internally sealed, field-adjustable trim pots and DIP switches for easy on-site programming.
For more information, please see
User Manual
