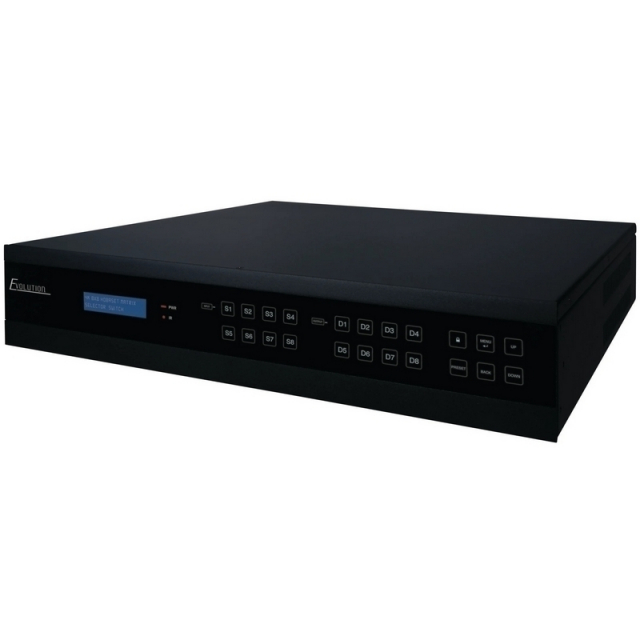

Vanco EVMX88PRO Evolution 4K HDBaseT 8x8 Matrix with ARC IR IP

Vanco, EVMX88PRO, Evolution 4K HDBaseT 8x8 Matrix with ARC IR IP and RS-232

EVMX88PRO Includes Only:

• EVMX88PRO HDBaseT Matrix Switcher
• (2) Mounting Ears with 6 Screws
• (4) Plastic feet
• (10) IR Receivers
• (9) IR Emitters
• (1) IR Remote
• (16) 3-pin Terminal Blocks
• (1) RS-232 Cable (3-pin to DB9)
• (1) IR Control Cable (EV-IRMST)
• (1) Power Cord
• (1) Product Manual

Features:

• 4K 8x8 HDBaseT Matrix with mirrored HDMI outputs
• Extends 4K at60Hz 4:4:4, and HDR10 up to 131ft/40m over a single Cat6 cable
• Outputs 4K at60Hz 4:4:4, HDR10 and Dolby Vision on the HDMI inputs and HDMI outputs
• Extends 1080p resolution up to 230ft/70m over a single Cat6 cable
• HDCP 2.2 compliant
• Two receiver options that are sold separately (EVRXHD2 and EVRXDSC) based on features required
• Features POC (Power over Cable) technology - providing power for either receiver option
• Downscales 4K to 1080p on all HDMI outputs as well as HDBaseT outputs using EVRXDSC receiver
• ARC (Audio Return Channel) capable with EVRXDSC receiver
• Includes built-in audio matrix with digital and analog audio outputs for up to 8 zones
• Built-in EDID management and advanced HDCP handling
• Controllable via front panel, IR, RS-232 and third party control systems, as well as a built in GUI via IP connection
• Features IR, IP and RS-232 for control
• Includes EV-IRMST IR integration cable for seamless integration with 3rd Party IR Systems
• Dimensions: 17.2" W x 3.5" H x 17.3" D

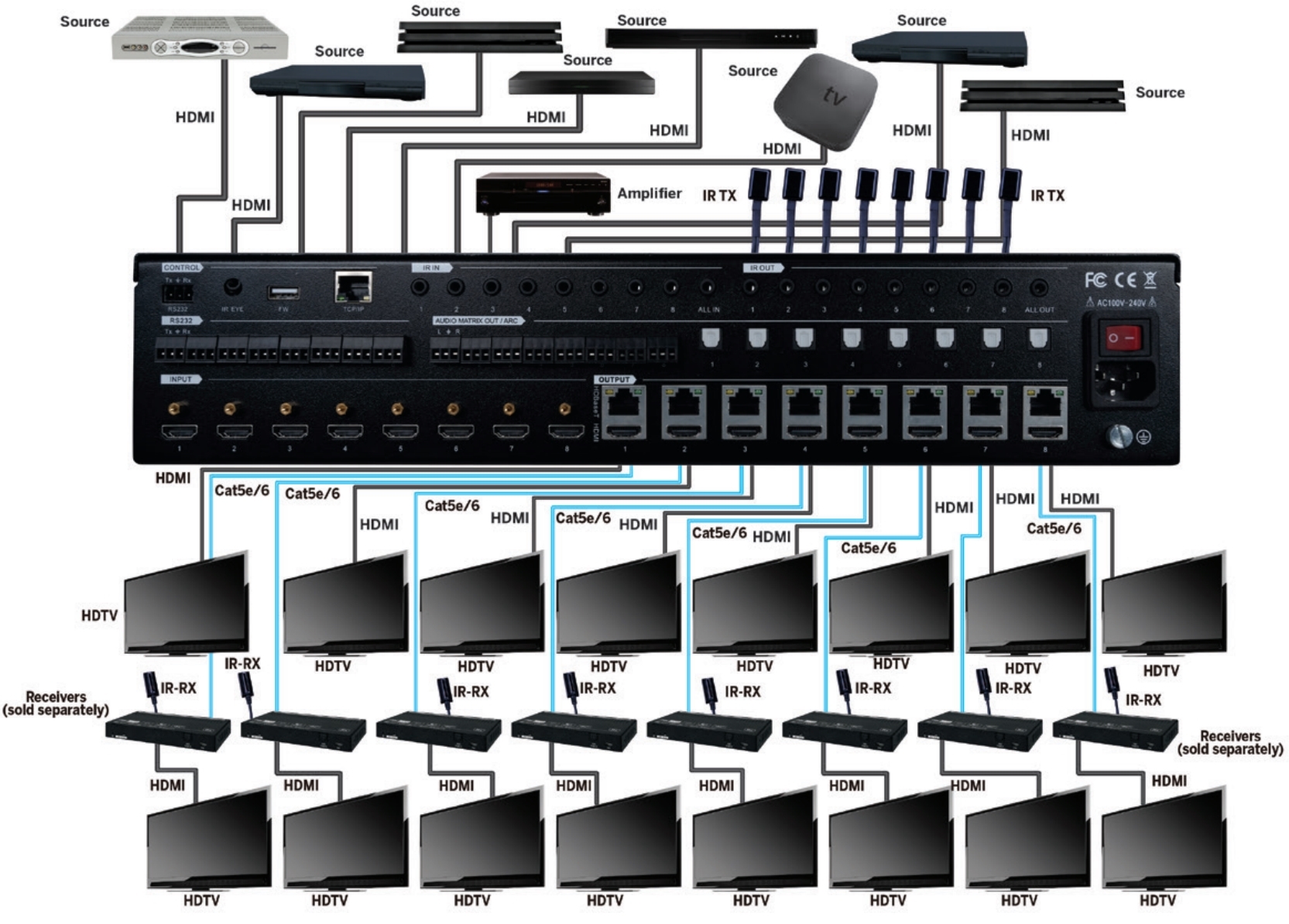

The Evolution by Vanco EVMX88PRO 4K 8x8 HDBaseT™ Audio and Video Matrix Switcher with ARC, IR, IP and RS-232 allows 8 HDMI sources to be distributed to up to 8 displays simultaneously, with mirrored HDMI outputs for a total of 16 outputs!

The EVMX88PRO is capable of transmitting 4K at60Hz, 4:4:4 Chroma Subsampling, and HDR up to 131ft/40m over a single Cat6 cable, and 4K at60Hz, 4:4:4 Chroma Subsampling with HDR10 and Dolby Vision on the HDMI inputs and HDMI outputs. For control, the EVMX88PRO features multiple methods including simple control using the front panel control, IR control, RS232, and an easy to use UI accessible via IP. Control switching sources to displays from a computer or a wireless device such as a tablet or mobile phone. Need an audio matrix as well? The EVMX88PRO also features the ability to send any HDMI audio input to up to 8 zones. Compatible with both the EVRXHD2 and EVRXDSC HDBaseT receivers to create a modular matrix unit, add downscaling, ARC, audio extraction, and RS-232 to any HDBaseT output. For switching multiple sources to multiple displays using HDBaseT technology, with many features for control, audio switching, ARC, 4K HDR resolution, and scaling, the EVMX88PRO is a great choice for any application.

For more information, please see Data Sheet and User Manual
