TSI Power, VRP-2900-300B, VRP Series 95~145 VAC Input, 120 VAC +/-3% Output, Rated Capacity 2900VA, Precision PWM Voltage Regulator, Hard-Wired Connection, 60 Hz
Features:
- Standby operation minimizes interaction with existing loads or power distribution systems, while being compatible with most loads
- Wide input range (±20%) and precise output regulation (±3%) provides superior performance

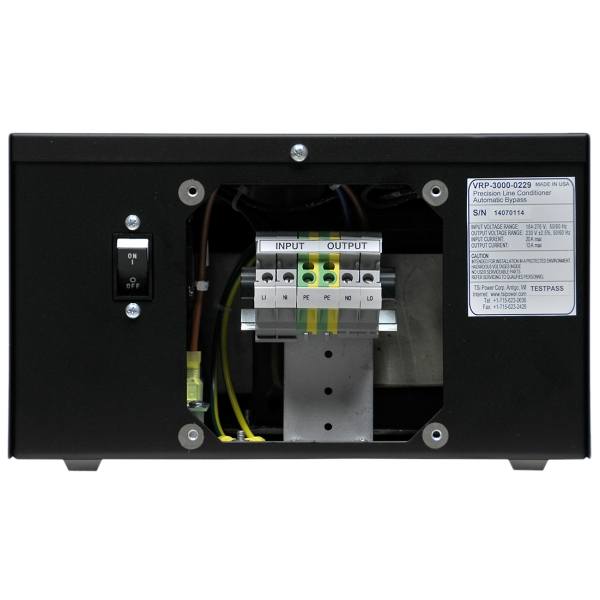

- Various AC input/output connector type wiring terminals facilitate specific applications
- Internal surge protection and noise filtering assures trouble-free operation
- AC input circuit breakers and load over-current protection prevents costly equipment damage
- Customizable for unique and challenging applications
The VRP is a highly sophisticated automatic precision AC voltage regulator that ensures maintenance free operation of electronic equipment over a very wide input voltage range. TSI Power's VRP series is designed to provide high precision power with industry leading response time of one-half line cycle (10 ms or less).
How the VRP works

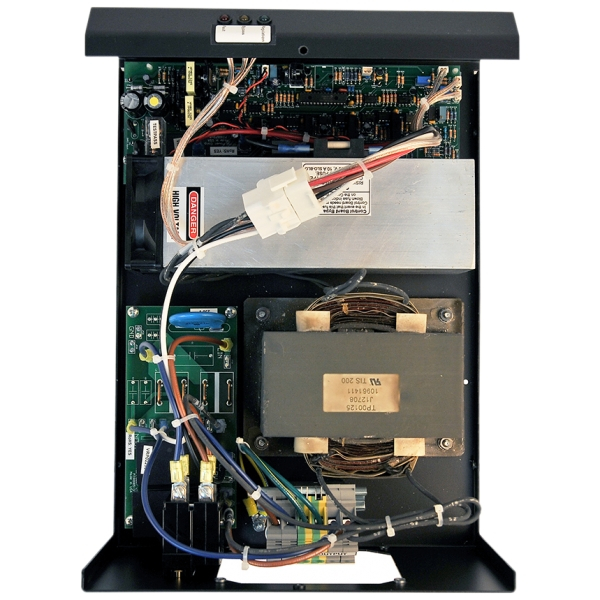

The high frequency Insulated Gate Bi-polar Transistor (IGBT) driven converter takes the incoming AC power, measures it against the nominal voltage reference and adds or subtracts voltage to achieve a precisely regulated output. The automatic bypass will be activated when there is a fault condition. Green LED is used to indicate Normal (regulating mode) operation.
For more information, please see
Data Sheet and User Manual
