Transtector
DC Surge Protector, DIN-Rail Assy, 48 Vdc

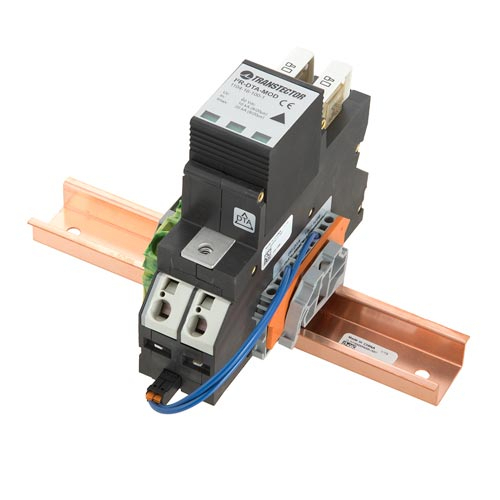

Transtector RRPA-DTA DC Surge Protector, DIN-Rail Assy, 48 Vdc

Part #:
RRPA-DTA
Condition:
Brand New

Choose Product Type

Contact Us For Pricing
Check availability
Contact Us For Pricing
Manufacturer warranty

Description

Contact Us For Pricing
Check availability

Technical details

Main features
  • Current Rating 40 A
  • Product Type Single DTA
  • Form Factor DIN-Rail Assy
  • Mount Type DIN-Rail, Wall/Panel
  • Response Time 25 ns
  • Humidity <95% non-condensing
  • Indoor/Outdoor Indoor
  • Surge Protection Technology MOV, GDT
  • 8/20µs Surge Current 20 kA
  • Vpl 8/20µs L-G 375 at 3000A Vpk
  • Maximum Continuous Operating Voltage (MCOV) MCOV DC: 60 Vdc
  • Service Voltages 48 VDC
  • Service Wiring Terminal Spring Cage Clamp: #24 to #6 AWG
  • Status Indication Terminal 3-Position Screw Terminal: #22 to #12 AWG
  • Temperature Operating Range -40 to +85 deg C
  • Temperature Storage Range -40 to +85 deg C
  • Surge Protection Modes Signal to GND, Signal to Signal
  • Nominal Discharge Surge Current (In) 10 kA
