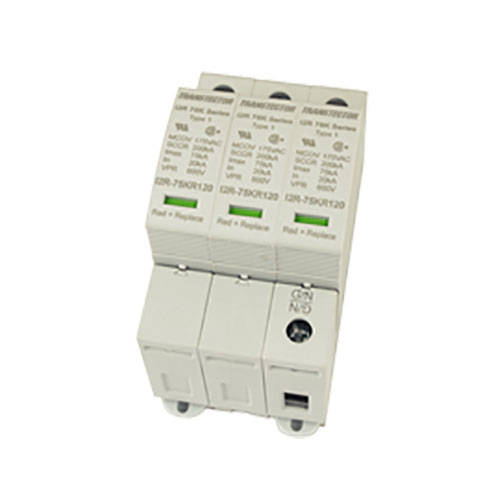

Transtector, I2R-75KD480, AC Surge Protector, SPD, I2R-75K, DIN-Rail, 480 Vac, 3-Phase, Delta, MOV, 75 kA, UL 1449 4th Ed. Type 1 and Type 2, TAA
Features:
- UL1449 4th Ed. Type 1/Type 2
- High Capacity MOV Protection
- Visual Suppression Status Indicator
- Dry Contact Remote Annunciation Wire Leads
- Replaceable Module I2R-75KR480
- Wire and Comb Busbar Wiring Terminals
- Reversible Chassis for Top or Bottom Wiring
- DIN-Rail Mount
- No External Backup Fuses Required
Applications:
- Electrical Panelboards
- Industrial Automation
- Communications Base Stations
- IT and Data Centers
- Switchgear
- Motor Control Centers
- Automatic Transfer Switches
- Wastewater Treatment
- Oil and Gas
- LED Lighting
- Schools
- Hospitals
- Small Cells
- Intelligent Traffic Systems
Transtector AC surge protector / arrester (Also known as alternating current surge protection device or SPD as well as transient voltage surge suppressor or TVSS) I2R-75KD480 is in-stock and will ship same business day as purchased from us. AC surge protector / SPD provides overvoltage protection for your equipment and supports long-term system reliability by absorbing high amounts of transient energy while maintaining a low clamping voltage. This industrial surge protector for AC helps prevent damage from VAC overvoltage that can be caused by lightning surge and other strong electrical power spikes. The transient voltage suppressor / TVSS protection device can act as a lightning surge protector / arrestor as well as an AC electrical overvoltage spike surge protection device. AC surge protector device part number I2R-75KD480 from Transtector is designed to protect sensitive electric and electronic equipment from transient voltage. This TVSS product for alternating current offers high quality electrical surge suppressor protection. Electrical surge protection unit is rated for indoor use. The indoor SPD for AC is a din-rail type design. Indoor industrial electrical surge protection din-rail is part of the Transtector I2R-75K series. I2R-75KD480 TVSS indoor AC surge protector is for 480 Vac applications. The 480V AC TVSS is a 3-phase delta surge protector. 3-phase delta 480V SPD is just one of many alternating current protection devices that ship same-day from Transtector. 3-phase delta surge protector din-rail for lightning protection and other spikes in electrical power has a maximum amperage of 75 kA. Industrial AC electrical / lightning SPD is rated at 75 kA on 480V. Transtector TVSS AC power protection device PDF datasheet with details of specifications and CAD drawing with dimensions for I2R-75KD480 can be found above. Protection from AC electrical surge in this Transtector din-rail component is in the form of Metal Oxide Varistor (MOV). This AC SPD uses Metal Oxide Varistor (MOV) circuits to protect electrical devices from spikes in alternating current power. Transient voltage surge suppression from lightning and strong electrical spike events are handled through Metal Oxide Varistor (MOV) protection circuits in the I2R-75KD480 SPD. I2R-75KD480 commercial surge protector for AC power is UL 1449 4th Ed. Type 1 and Type 2 rated.
