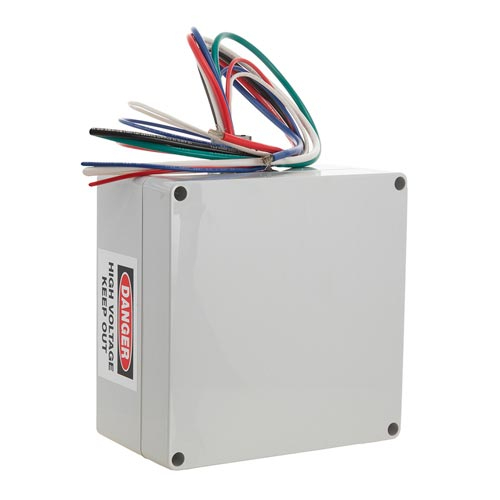

Transtector, B70-00-6013, AC Surge Protector, SPD, SP, PLUS, Brick, 277/480 Vac, 3-Phase, Wye, MOV, 100 kA, UL 1449 4th Ed. Type 1 or Type 2, TAA
Features:
- UL1449 4th Ed.
- High Capacity MOV Protection
- Suppression Status LEDs
- Dry Contact Remote Annunciation Wire Leads
- Wall Mount
- Thermally Protected MOV - allows maximum surge capacity, repetitive capability, and performance while maintaining safety requirements
- Linear Sharing - reduces stress to extend product life
- Indicator Lights per Phase - visual indication for protection integrity
- Dry Contacts - Form C contacts for remote monitoring (NO and NC)
- Audible Alarm - with failure indication
- All Mode Protection - L-N, L-G, N-G & L-L
Applications:
- Electrical Panelboards
- Industrial Automation
- Communications Base Stations
- IT and Data Centers
- Switchgear
- Motor Control Centers
- Automatic Transfer Switches
- Wastewater Treatment
- Oil and Gas
- LED Lighting
- Schools
- Hospitals
Transtector AC surge protector / arrester (Also known as alternating current surge protection device or SPD as well as transient voltage surge suppressor or TVSS) B70-00-6013 is in-stock and will ship same business day as purchased from us. AC surge protector / SPD provides overvoltage protection for your equipment and supports long-term system reliability by absorbing high amounts of transient energy while maintaining a low clamping voltage. This industrial surge protector for AC helps prevent damage from VAC overvoltage that can be caused by lightning surge and other strong electrical power spikes. The transient voltage suppressor / TVSS protection device can act as a lightning surge protector / arrestor as well as an AC electrical overvoltage spike surge protection device. AC surge protector device part number B70-00-6013 from Transtector is designed to protect sensitive electric and electronic equipment from transient voltage. This TVSS product for alternating current offers high quality electrical surge suppressor protection. Electrical surge protection unit is rated for outdoor use. The outdoor SPD for AC is a brick type design. Outdoor industrial electrical surge protection brick is part of the Transtector SP PLUS series. B70-00-6013 TVSS outdoor AC surge protector is for 277 Vac and 480 Vac applications. The 277V AC and 480V AC TVSS is a 3-phase wye surge protector. 3-phase wye 277V and 480V SPD is just one of many alternating current protection devices that ship same-day from Transtector. 3-phase wye surge protector brick for lightning protection and other spikes in electrical power has a maximum amperage of 100 kA. Industrial AC electrical / lightning SPD is rated at 100 kA on 277V and 480V. Transtector TVSS AC power protection device PDF datasheet with details of specifications and CAD drawing with dimensions for B70-00-6013 can be found above. Protection from AC electrical surge in this Transtector brick component is in the form of Metal Oxide Varistor (MOV). This AC SPD uses Metal Oxide Varistor (MOV) circuits to protect electrical devices from spikes in alternating current power. Transient voltage surge suppression from lightning and strong electrical spike events are handled through Metal Oxide Varistor (MOV) protection circuits in the B70-00-6013 SPD. B70-00-6013 commercial surge protector for AC power is UL 1449 4th Ed. Type 1 or Type 2 rated.
